À propos du produit

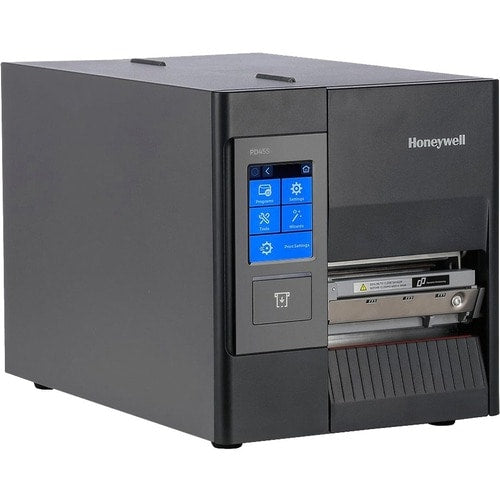

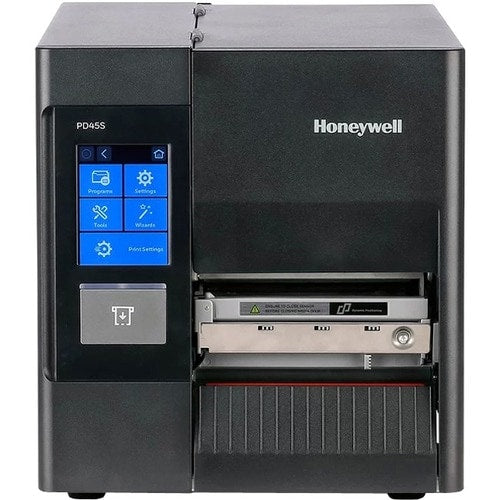

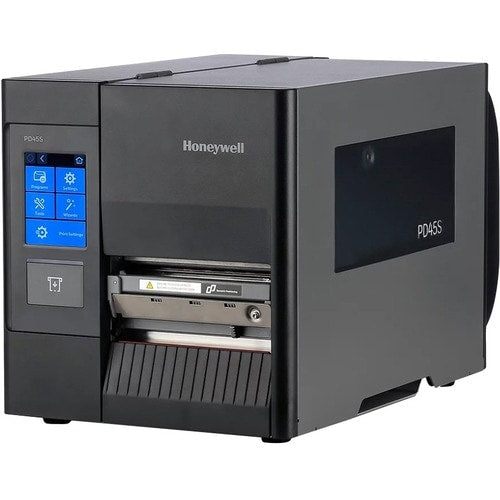

Uniquely designed using minimum internal mechanical parts and an all-metallic frame structure, PD45S is sturdy and durable. This gives our printer a tough, compact, and sleek appearance, suitable for use in a wide range of settings & applications.
The PD45S runs on Arm Cortex-A7 / 800Mhz processor, 128M memory and 128M DDR3 SDRAM. It features a sophisticated industrial print head which supports both direct thermal and thermal transfer printing modes. Honeywell's patented dual sensor positioning technology supports a dynamic positioning function that ensures a minimum label height of 5mm and vertical position accuracy of 0.5mm. Two sets of adjustable pressure bars and double media guides ensures accurate paper feeding and help to avoid ribbon wrinkles & printing dirt.
Thanks to a very ergonomic design, the print head can be easily switched out and replaced. The front sensor that ensures accurate printing can also be easily removed to facilitate cleaning and replacement of the rubber roller. The PD45S supports multiple printer command languages such as FP/DP/IPL/ZPL/DPL, one-key installation of printer driver and easy windows configuration.
The PD45S comes with a rich selection of accessories and supports wireless network interface card, parallel interface card, labeling machine interface card, industrial GPIO and serial interface card. It also has peeling, rewinding and cutting assemblies to cope with a wide range of application scenarios.
- Save time and money for your business by using one printer for all your employees
- Produce high-quality documents with this monochrome printer to increase your productivity
- Use Thermal Transfer Printer for their versatility and compact design, as well as their high-resolution and durable printing capabilities
Spécifications techniques
| Miscellaneous | |
| Platform Supported | PC |
| Power Description | |
| Power Source | AC Supply |
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| USB Host | Yes |
| Network & Communication | |
| Ethernet | Yes |
| Ethernet Technology | Fast Ethernet |
| Network Ready | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 23.85 lb (10820 g) |
| Height | 10.63" (270 mm) |
| Width | 9.80" (249 mm) |
| Depth | 17.24" (438 mm) |
| General Information | |
| Product Type | Thermal Transfer Printer |
| Manufacturer Part Number | PD45S0C0010000200 |
| Manufacturer Website Address | http://www.honeywell.com |
| Manufacturer | Honeywell International, Inc |
| Product Model | PD45S |
| Product Name | Industrial Label Printer |
| Brand Name | Honeywell |
| Fonts & Emulation | |
| Language Emulation | ZPL II |
| ZSim2 | |
| Direct Protocol (DP) | |
| ZPL | |
| Fingerprint | |
| FP | |
| IPL | |
| DPL | |
| Media Types & Handling | |
| Media Thickness | 10 mil (0.254000 mm) |
| Maximum Roll Diameter | 3.1" (80 mm) |
| Media Type | Label |
| Notch | |
| Continuous Paper | |
| Continuous Label | |
| Tag | |
| Media Sensor | Gap Sensor |
| Black Mark Sensor | |
| Maximum Label Width | 4.49" (114 mm) |
| Technical Information | |
| Application/Usage | Retail |
| Manufacturing | |
| Transportation & Logistic | |
| Industrial | |
| Healthcare | |
| Barcode Symbology Supported | GM1724 |
| HIBCC | |
| ISBT-128 | |
| MH10.8 | |
| AIAG | |
| 2D | |
| 1D | |
| UCC/EAN 128 Serial Shipping Container | |
| POSTNET | |
| UPC/EAN Shipping Container | |
| OGMARS | |
| Maximum Print Width | 4.25" (107.95 mm) |
| Recommended Use | Label Print |
| Features | LCD Display |
| Ergonomic | |
| Compact | |
| Rugged | |
| Print Technology | Thermal Transfer |
| Print Color Capability | Monochrome |
| Maximum Print Length | 15.75" (400.05 mm) |
| Optional Connectivity | Wireless LAN |
| Maximum Print Resolution (dpi) | 203 |
