2D bar codes are becoming increasingly popular across a wide range of industries for a number of reasons. Some enterprises have a desire to capture large amounts of data, despite space constraints, while others are being required to read 2D bar codes due to government regulations or supplier mandates. And an even larger group of enterprises simply have the desire to leverage emerging trends that require area-imaging technology, today or in the future, without needing to purchase additional scanning hardware.
Enterprises that recognize the importance of upgrading to area-imaging scanners are generally unwilling to accept a decline in scan performance. They are also looking for a solution that is capable of reading traditional paper-based bar codes, as well as bar codes found on alternative mediums, such as mobile phone screens.

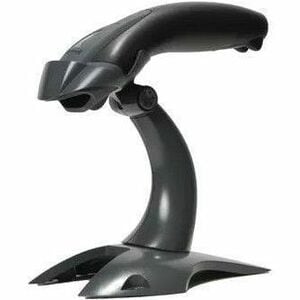

Built on the platform of Honeywell's world-renowned Voyager series of hand-held linear scanners, the Voyager 1400g delivers omnidirectional reading of linear bar codes, plus the ability to affordably upgrade the device to enable PDF and 2D bar code scanning-at the time of purchase or as scanning needs evolve. Performing at speeds that are comparable to laser-based scanners, the versatile and reliable Voyager 1400g can be customized to meet current and future scanning needs, lowering the total cost of ownership.
With no need for additional functionality beyond linear and 2D bar code scanning, many enterprises are unwilling to pay for fully-featured areaimaging scanners. The Voyager 1400g enables PDF and 2D bar code scanning without extra value-added features, such as advanced image capture and processing applications, allowing Honeywell to offer 2D scanning at an attractive price.
The Voyager 1400g offers an exceptional value for enterprises that require the versatility of area-imaging technology today or may need it in the future. Produced by a company with more than 15 years of experience in engineering quality area-imaging solutions, Honeywell's Voyager 1400g area-imaging scanner is a smart investment.
- Reliable Data Collection
- : Offers omnidirectional reading of virtually all linear bar codes and the most widely used 2D bar codes, including poor quality and mobile bar codes
- Remote MasterMind Ready
- : Reduces total cost of ownership by providing a turnkey remote device management solution that easily manages and tracks usage of installed devices
- Future Proof
- : Delivers affordable scanning of 2D bar codes, allowing enterprises to meet their current and future bar code scanning needs with a single device
- Flexible Licensing Solution
- : Meets diverse scanning requirements by offering models with basic functionality -purchase software licenses to enable additional functionality as the need arises
Spécifications techniques
| Power Description | |
| Standby Current | 90 mA |
| Maximum Operating Power Consumption | 2 W |
| Interfaces/Ports | |
| Host Interface | IBM 46XX |
| Keyboard Wedge | |
| USB | |
| Serial | |
| Miscellaneous | |
| Application/Usage | Industrial |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Ingress Protection (IP) Rating | IP42 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Physical Characteristics | |
| Weight (Approximate) | 4.20 oz (119 g) |
| Form Factor | Handheld |
| Length | 1.69" (43 mm) |
| Height | 2.60" (66 mm) |
| Width | 7.09" (180 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Barcode Scanner Kit |
| Manufacturer Part Number | 1400G2D2USBN |
| Manufacturer Website Address | http://www.honeywell.com |
| Manufacturer | Honeywell International, Inc |
| Product Model | 1400g |
| Product Name | Voyager 1400g Area-Imaging Scanner |
| Product Line | Voyager |
| Brand Name | Honeywell |
| Technical Information | |
| Barcode Symbology Supported |
|
| Connectivity Technology | Cable |
| Scanning Distance | 13.70" (347.98 mm) |
| Light Source | LED |
| Drop Specification |
|
| Scan Pattern | Area |
| Omni-directional | |
| Linear | |
| Image Sensor Type | Imager |
| Cable Type Included | USB |
| Scanning Capability | 1D |
| Field of View (Horizontal) | 42° |
| Field of View (Vertical) | 31° |
| Reading Angle (Skew) | 70° |
| Reading Angle (Pitch) | 60° |
| Motion Tolerance | 4 in/s (101.60 mm/s) |
| Maximum Ambient Light | 100000 lux |
| Minimum Print Contrast | 35% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 20 mil (0.51 mm) |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 6.70 mil (0.17 mm) |
| Image Sensor Resolution | 640 x 480 |
