À propos du produit

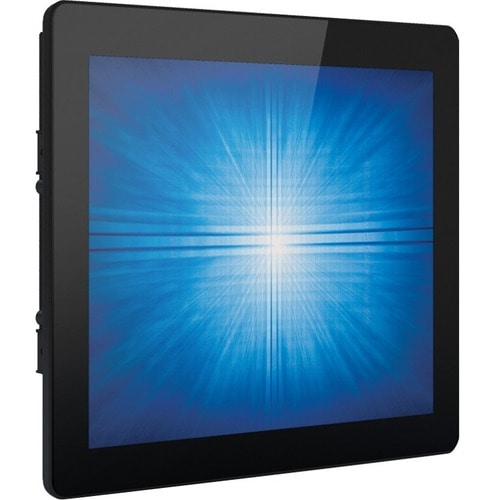

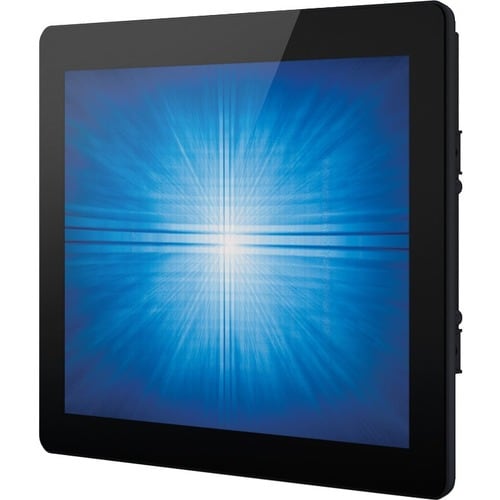

The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.

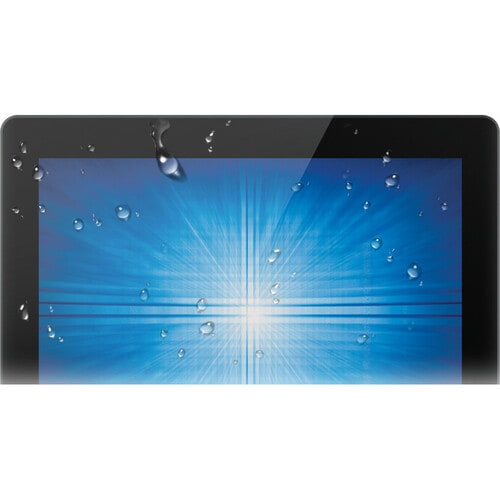

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- Display Port and VGA video interfaces
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- The IntelliTouch Surface Wave touchscreen innovation conveys unrivaled picture clarity, determination, light transmission, and dependability since it uses clear glass that keeps on working regardless of the possibility of scratches
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- The 700:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
- Furnishes captivating visuals with about 300 cd/m² brightness levels
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
- HDMI interface allows connectivity to a variety of HD devices including gaming consoles, laptop PCs, Blu-ray players, digital cameras and many others for the ultimate high-definition display
- Explore a world loaded with potentially vivid entertainment outcomes with the Elo Open-frame LCD Touchscreen Monitor
Spécifications techniques
| Touchscreen Information | |
| Touchscreen Type | IntelliTouch Surface Wave |
| Touchscreen | Yes |
| Power Description | |
| Operating Power Consumption | 14 W |
| Standby Power Consumption | 1.50 W |
| Off-Mode Power Consumption | 500 mW |
| Energy Consumption per Year | 21 kWh |
| Video | |
| Contrast Ratio | 700:1 |
| Brightness | 300 cd/m² |
| Color Supported | 16.2 Million Colors |
| Maximum Resolution | 1024 x 768 |
| Physical Characteristics | |
| Weight (Approximate) | 6.40 lb (2902.99 g) |
| Height | 10.41" (264.41 mm) |
| Width | 13.24" (336.30 mm) |
| Depth | 1.65" (41.91 mm) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Product Color | Black |
| General Information | |
| Product Type | Open-frame LCD Touchscreen Monitor |
| Manufacturer Part Number | E326738 |
| Manufacturer Website Address | http://www.elotouch.com |
| Packaged Quantity | 1 |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Model | 1590L |
| Product Name | 1590L 15" Open Frame Touchscreen (Rev B) |
| Brand Name | Elo |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | |
| Environmentally Friendly | Yes |
| TAA Compliant | No |
| Mean Time Between Failures (MTBF) | 5.7 Year |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Restriction of Hazardous Substances (RoHS) | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| HDMI Version | 1.3 |
| VGA | Yes |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Serial Port | Yes |
| USB Standard | USB 2.0 |
| DisplayPort Version | 1.1a |
| Technical Information | |
| Aspect Ratio | 4:3 |
| Response Time | 16 ms |
| Features | On-screen Display (OSD) |
| Anti-glare | |
| Mount Type | Rack-mountable |
| Front Mount | |
| Screen Surface | Anti-glare |
| Viewable Screen Size | 15" |
| Screen Mode | XGA |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 150° |
| Backlight Technology | LED |
| Panel Technology | Thin Film Transistor (TFT) |
| Curved Screen | No |
| Maximum Refresh Rate | 75 Hz |
| Screen Size Class | 15" |
