À propos du produit

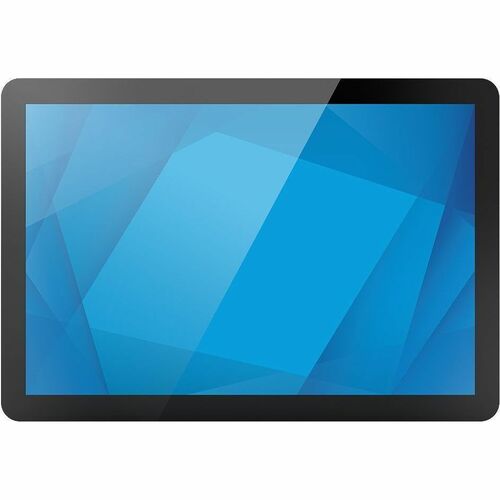

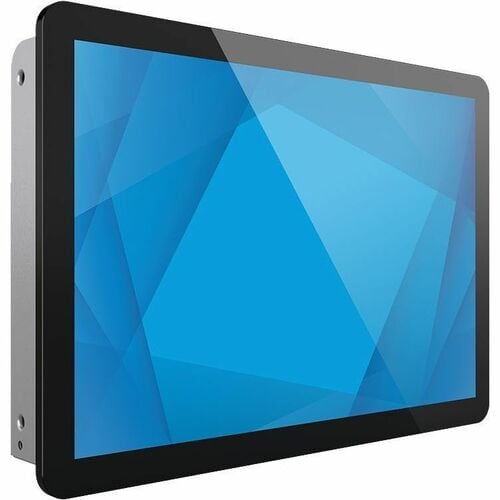

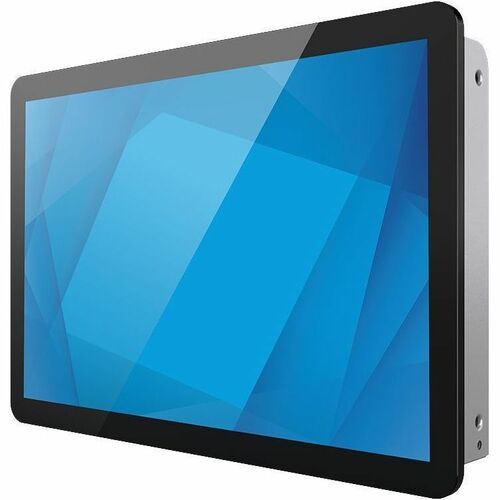

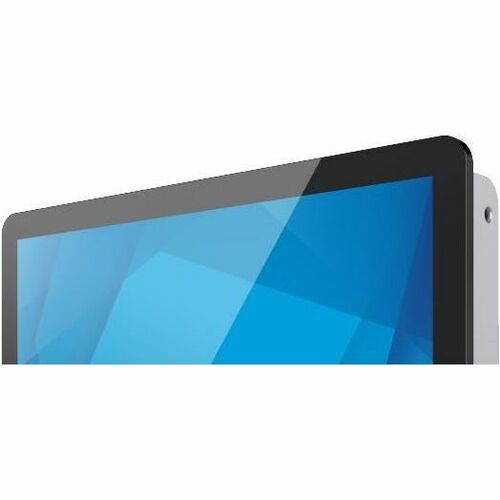

10-inch weather proof touchscreen that covers you from day to night.
Built to perform outdoors, Elo's 1099 weatherproof
monitor offers IP66 and NEMA 4X when integrated
into an enclosure as well as IK09 impact protection.
With extended operating temperatures from -20 to
60 degrees Celsius, the integrated outdoor digital
signage display can withstand harsh physical and
thermal requirements.
Sunlight readable monitor.
To provide unmitigated performance from day to night, the
ambient light sensor automatically adjusts the display's
brightness to optimize power consumption, extend the life
of the display and enhance the viewing experience.
Outdoor kiosk | solutions.
Elo's 1099L outdoor monitor enables
you to create reliable outdoor kiosks that
will capture audiences and differentiate
your sunlight readable outdoor display.
- Charging Stations
- Payment & Ticketing
- Vending Machine
- Human Machine Interface

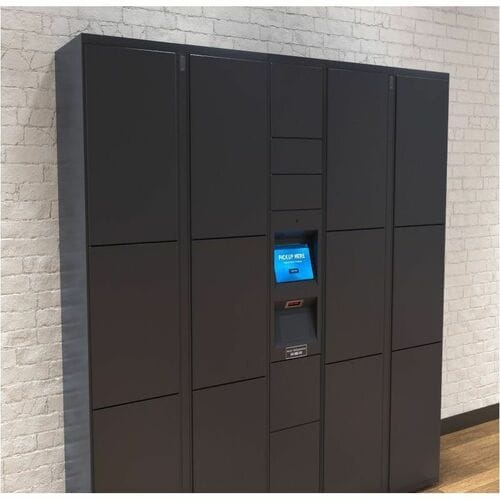

- Order Pickup Lockers

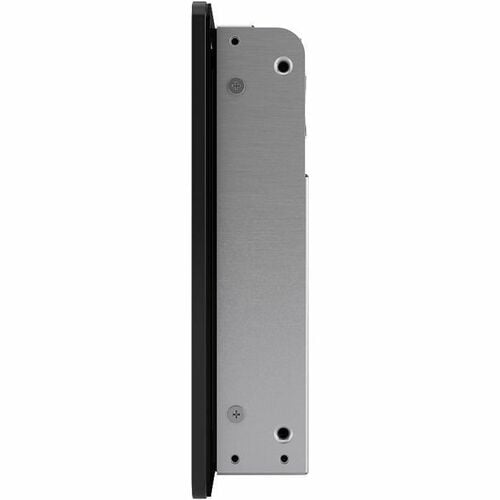

Flexibility for your install.

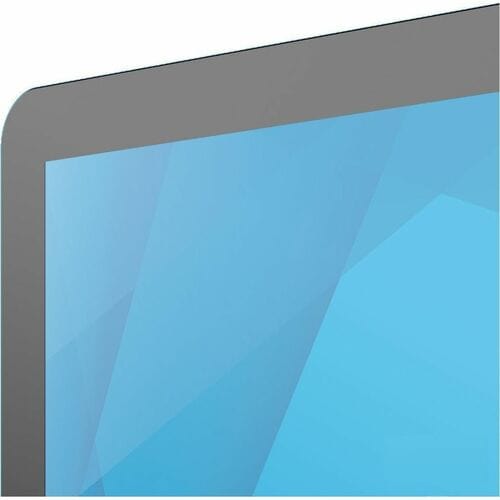

Elo's waterproof touchscreen monitor can be mountedin landscape, portrait and upward facing orientations,providing optimal flexibility for integrating in anycounter, kiosk or cabinet design. Whether end users areviewing up close or from a distance, with or withoutpolarized sunglasses, our optically bonded outdoordigital signage display offers what you need whilemaintaining optimal clarity for the viewing experience.
- Experience luminescent visual images with LCD display
- LED backlight enhances display performance that delivers an outstanding color range and contrast ratios
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
Spécifications techniques
| Network & Communication | |
| Ethernet | Yes |
| Power Description | |
| Input Voltage | 24 V DC |
| 12 V DC | |
| Video | |
| Brightness | 1000 cd/m² |
| Native Contrast Ratio | 800:1 |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Technical Information | |
| Panel Technology | Thin Film Transistor (TFT) |
| Ingress Protection (IP) Rating | IP66 |
| Impact Protection (IK) Rating | IK09 |
| Operation Hours | 24 Hours/7 Days |
| Miscellaneous | |
| Application/Usage | Outdoor |
| Kiosk | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| China Restriction of Hazardous Substances (China RoHS) | |
| General Information | |
| Product Type | Digital Signage Kiosk |
| Manufacturer Part Number | E354792 |
| Manufacturer Website Address | http://www.elotouch.com |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Model | 1099L |
| Product Name | 1099L Digital Signage Kiosk |
| Brand Name | Elo |
| Environmental Conditions | |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -22°F (-30°C) |
| Maximum Storage Temperature | 176°F (80°C) |
| Minimum Operating Humidity | 10% |
| Maximum Operating Humidity | 90% |
| Minimum Storage Humidity | 10% |
| Maximum Storage Humidity | 95% |
| Physical Characteristics | |
| Weight (Approximate) | 4.85 lb (2199.92 g) |
| Mount Type | Flush Mount |
| Bracket Mount | |
| Height | 6.90" (175.26 mm) |
| Width | 10" (254 mm) |
| Depth | 1.60" (40.64 mm) |
| VESA Mount Standard | 200 x 100 |
| Product Color | Black |
| Color Family | Black |
| Display & Graphics | |
| Aspect Ratio | 16:9 |
| Display Resolution | 1280 x 800 |
| Response Time | 25 ms |
| Orientation | Landscape/Portrait |
| Touchscreen | Yes |
| Display Screen Type | LCD |
| Backlight Technology | LED |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 5 |
| Maximum LED Life | 5.7 Year |
