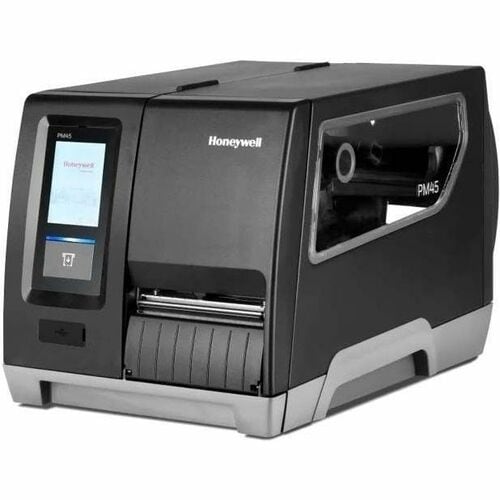

Enterprises today are facing increasing challenges on production flexibility, inventory turnover, and cost control. The Honeywell PM45 industrial printer is designed to give businesses the flexibility and precision for high-volume printing. The PM45 printer's track-and-trace functionality is aimed at improving print efficiency and supply chain transparency within a variety of industries, including food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management.
Built on the Honeywell print platform, the durable PM45 printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high-quality prints for barcodes, texts, and images, even on small electronic components and medical device labels.
As a highly connected industrial printer, the PM45 is packed with enhanced WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45 printer's versatility allows the user to incorporate RFID, parallel, industrial, and applicator interfaces to address unpredictable future business needs. To help your transformation to intelligent manufacturing and supply chain management, the PM45 printer supports variable network protocols and multiple print languages to enable easy integration into your system, whether it is cloud-based or on a local server.
Embedded with Honeywell's Smart Parse software, the PM45 allows for quick position changes, sizing of objects and barcodes, or font type on labels, without the need for backend system changes or programming skills. With Honeywell's Operational Intelligence software, users can remotely manage and monitor the PM45 printer's diagnostics and output performance. The PM45 supports a wide range of media - including ink-in and ink-out ribbons with a 1-inch core size - enhancing the time between media resupplies.
The PM45 printer is an ideal replacement for existing Honeywell or mixed printers, especially with Honeywell's firmware platform supporting multiple print languages. A rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement helps minimize downtime and maintenance needs.
- The printer is capable of printing sharp and detailed monochrome documents quickly
- Produce high-quality documents with this monochrome printer to increase your productivity
- Engineered to provide low-cost, high-quality printing
- Use Thermal Transfer Printer for their versatility and compact design, as well as their high-resolution and durable printing capabilities
Spécifications techniques
| Cutter | |
| Cutter | Yes |
| Memory | |
| Flash Memory | 512 MB |
| Standard Memory | 256 MB |
| Display & Graphics | |
| Display Screen | Yes |
| Touchscreen | Yes |
| Display Screen Type | LCD |
| Interfaces/Ports | |
| USB | Yes |
| Serial Port | Yes |
| USB Host | Yes |
| Power Description | |
| Power Source | AC Supply |
| Frequency | 50 Hz |
| 60 Hz | |
| Network & Communication | |
| Ethernet | Yes |
| Ethernet Technology | Gigabit Ethernet |
| RFID | Yes |
| Network Ready | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 29.10 lb (13200 g) |
| Form Factor | Desktop |
| Tabletop | |
| Height | 11.61" (295 mm) |
| Width | 11.18" (284 mm) |
| Depth | 19.02" (483 mm) |
| Fonts & Emulation | |
| Language Emulation | Fingerprint |
| IPL | |
| XML | |
| DPL | |
| ZSim2 | |
| Direct Protocol (DP) | |
| ZPL II | |
| General Information | |
| Product Type | Thermal Transfer Printer |
| Manufacturer Part Number | PM45G10010030201 |
| Manufacturer Website Address | http://www.honeywell.com |
| Manufacturer | Honeywell International, Inc |
| Product Name | PM45 Thermal Transfer Printer |
| Product Series | PM45 |
| Brand Name | Honeywell |
| Miscellaneous | |
| Platform Supported | PC |
| Environmentally Friendly | Yes |
| TAA Compliant | Yes |
| Energy Star | Yes |
| Power Cable Localization | US |
| Energy Efficiency Certification | ENERGY STAR 3.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Media Types & Handling | |
| Maximum Roll Diameter | 8.4" (213 mm) |
| Media Type | Black Mark |
| Continuous Label | |
| Notch | |
| Gap | |
| Label | |
| Media Sensor | Label Present Sensor |
| Label Taken Sensor | |
| Maximum Label Width | 4.49" (114 mm) |
| Technical Information | |
| Application/Usage | Industrial |
| Healthcare | |
| Government | |
| Warehouse | |
| Manufacturing | |
| Food Service | |
| Barcode Symbology Supported | UPC/EAN Shipping Container |
| HIBCC | |
| POSTNET | |
| UCC/EAN 128 Serial Shipping Container | |
| ISBT-128 | |
| 1D | |
| 2D | |
| GM1724 | |
| Maximum Print Width | 4.25" (107.95 mm) |
| Recommended Use | Label Print |
| Features | Rugged |
| Print Technology | Thermal Transfer |
| Peel Facility | Yes |
| Print Color Capability | Monochrome |
| Maximum Print Length | 15.75 ft (4800.60 mm) |
| Rewinder | Yes |
| Maximum Print Resolution (dpi) | 203 |
