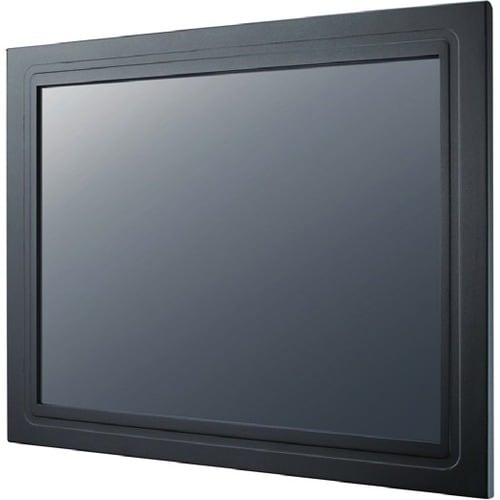

À propos du produit
- 17" SXGA LCD panel with LED backlight for 20% power saving and environmental protection
- -20 ~ +60° C wide range operating temperature
- 5-wire resistive touchscreen solution or 3mm tempered smudge resistant protected glass
- Combo touch interface: RS-232 and USB

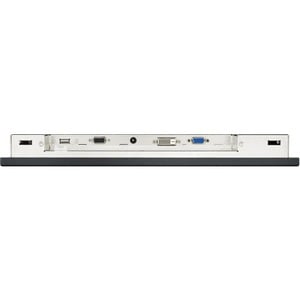

- Dual signal interface with VGA & DVI (on selected models)
- Standard integrated frame
- Versatile mounting methods for front mounting and VESA mounting
- Anti-Reflective treatment (optional)
- Ultra high brightness solution of 1200 cd/m2 for outdoor applications (optional)
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- The 250 cd/m² brightness gives an exceptionally visible display for clear and consistent on-screen pictures
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Spécifications techniques
| Touchscreen Information | |
| Touchscreen Type | 5-wire Resistive |
| Multi-touch Screen | Yes |
| Miscellaneous | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Interfaces/Ports | |
| USB | Yes |
| DVI | Yes |
| VGA | Yes |
| Number of USB Ports | 1 |
| Video | |
| Brightness | 250 cd/m² |
| Color Supported | 16.2 Million Colors |
| Maximum Resolution | 1280 x 1024 |
| Native Contrast Ratio | 1,000:1 |
| Physical Characteristics | |
| Weight (Approximate) | 10.36 lb (4700 g) |
| Height | 14.07" (357.50 mm) |
| Width | 16.73" (425 mm) |
| Depth | 1.54" (39 mm) |
| VESA Mount Compatible | Yes |
| General Information | |
| Product Type | LCD Touchscreen Monitor |
| Manufacturer Part Number | IDS-3217ER-25SXA1E |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | IDS-3217 |
| Product Name | 17" SXGA Industrial Panel Mount Monitor |
| Brand Name | Advantech |
| Technical Information | |
| Response Time | 5 ms |
| Features | 3H Surface Hardness |
| On-screen Display (OSD) | |
| Mount Type | Panel Mount |
| Viewable Screen Size | 17" |
| Screen Mode | SXGA |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 160° |
| Backlight Technology | LED |
| Screen Size Class | 17" |
