Introduction

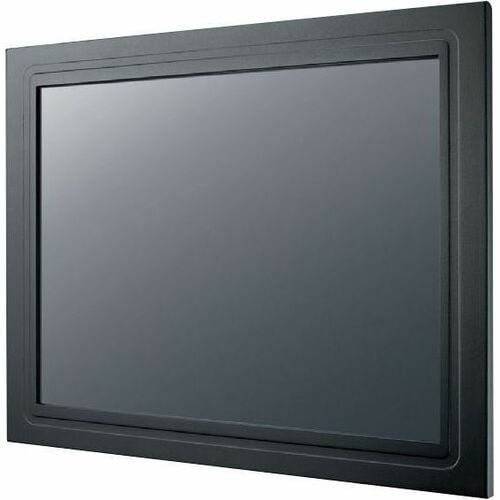

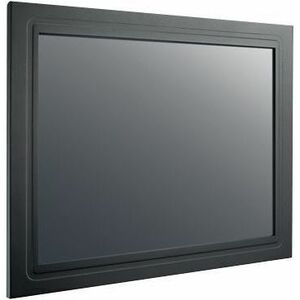

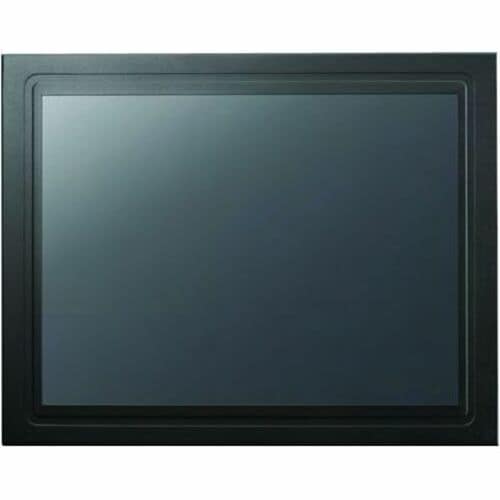

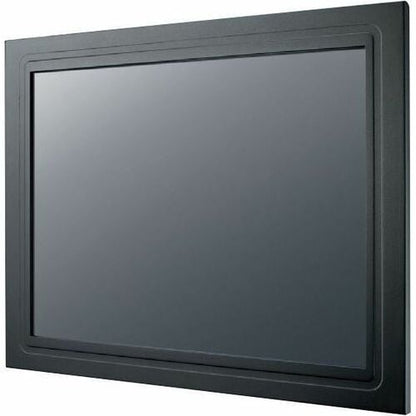

The Advantech IDS-3219 Embedded Industrial Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series with standard integrated frame design, supports front and VESA mounting which brings the benefits of easy installation and provides flexibility for different applications.
- 5-wire Resistive technology can be activated with virtually any object such as a stylus, gloved hand, pen and your fingers
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- Enjoy crisp content and energetic hues with the 350 cd/m² brightness
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
- Furnishes staggering touch utilization with astonishing screen execution
Spécifications techniques
| Touchscreen Information | |
| Touchscreen Type | 5-wire Resistive |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Video | |
| Brightness | 350 cd/m² |
| Color Supported | 16.7 Million Colors |
| Maximum Resolution | 1280 x 1024 |
| Native Contrast Ratio | 1,000:1 |
| Physical Characteristics | |
| Height | 14.74" (374.40 mm) |
| Width | 17.70" (449.70 mm) |
| Depth | 1.61" (40.90 mm) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |

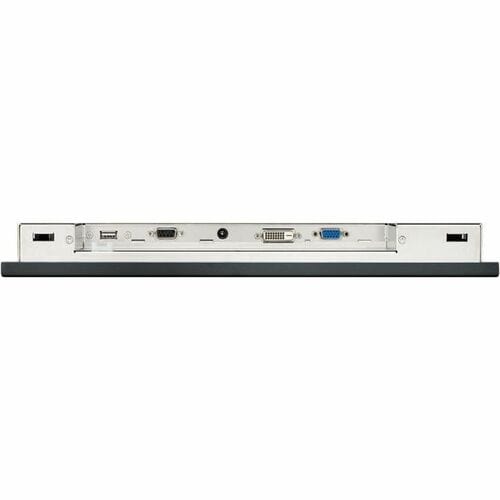

| Interfaces/Ports | |
| USB | Yes |
| VGA | Yes |
| Number of USB Ports | 1 |
| Number of VGA Ports | 1 |
| Number of DVI Ports | 1 |
| DVI-D | Yes |
| General Information | |
| Product Type | LED Touchscreen Monitor |
| Manufacturer Part Number | IDS3219R35SXA1E |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | IDS-3219 |
| Product Name | 19" SXGA Industrial Panel Mount Monitor |
| Brand Name | Advantech |
| Technical Information | |
| Response Time | 5 ms |
| Features | Power Switch |
| On-screen Display (OSD) | |
| Anti-reflective | |
| AutoTune | |
| Mount Type | Front Mount |
| Panel Mount | |
| Viewable Screen Size | 19" |
| Screen Mode | SXGA |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 160° |
| Backlight Technology | LED |
| Screen Size Class | 19" |
| Glass Hardness | 3H |
