Flexible Power Protection for Smart Industrial Applications
The DIN24240DC standby UPS system with hardwire DC input/output delivers reliable power and battery backup for computing, networking, control and storage equipment in factories, warehouses, edge computing locations and automated manufacturing and fabrication facilities. The rugged compact housing withstands demanding conditions and integrates seamlessly and securely into electrical enclosures in any non-traditional IT environment.
Ideal for Factory Floors and Extreme Temperatures

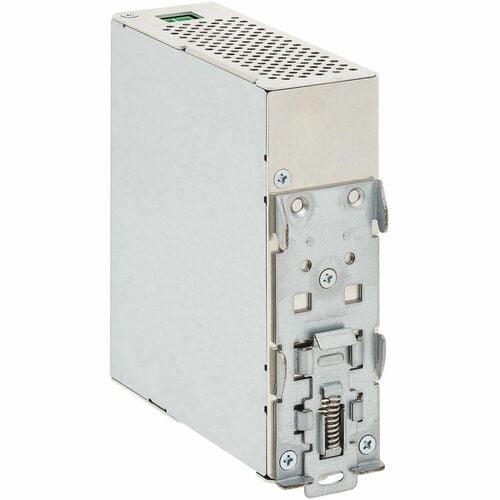

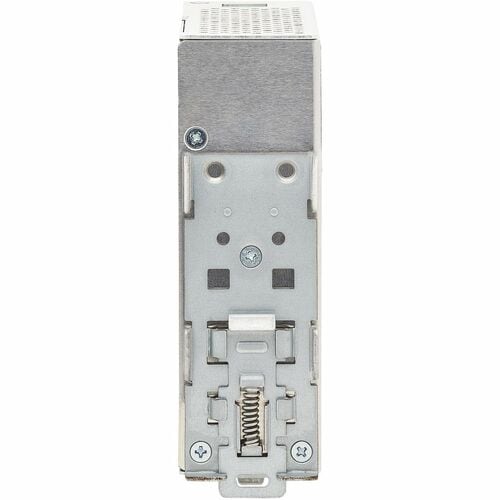

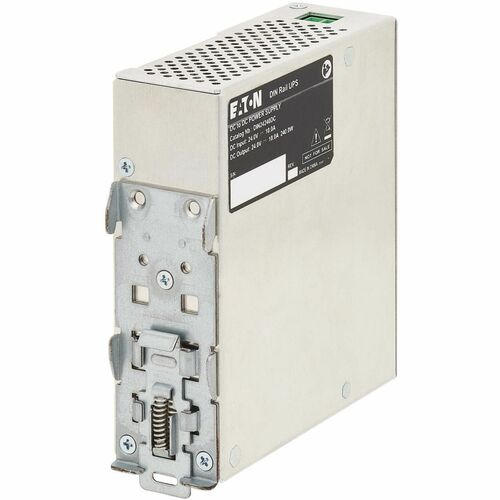

Get full use of the DIN24240DC's power capacity because there is no derating based on its operating temperature range of -15°C (5°F) to 50°C (122°F), which expands the number of locations in which it can be used. Built to fit into small spaces, the DIN24240DC is a UL 508 recognized component for use in industrial panels. Its pre-installed clamp enables quick mounting to a 35 mm DIN rail. Its fanless design reduces noise and increases reliability.
Reliable Battery Backup Keeps You Operational Through Power Outages
Power outages not only drain productivity from the factory floor, but they also damage expensive equipment. The DIN24240DC protects productivity by providing enough runtime to maintain operation during a brief power outage and protects equipment by allowing it to complete an operation during an extended outage. It also prevents brownouts, overvoltages, surges and line noise from damaging equipment that could destroy data and contribute to costly downtime.
Stay in Control of Your Operation

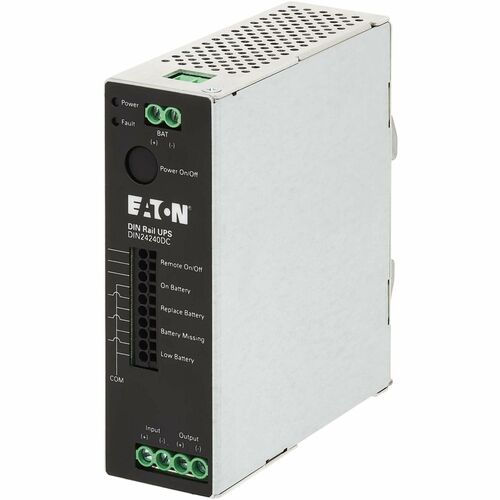

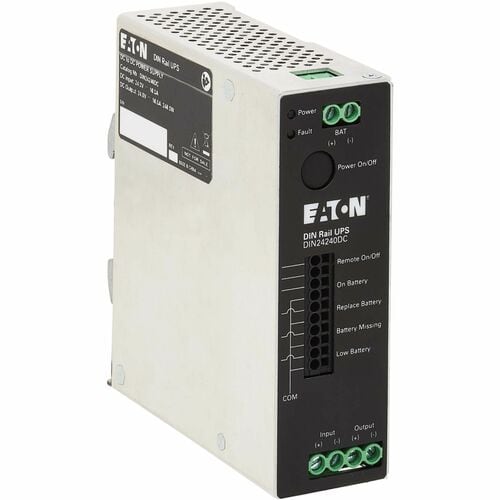

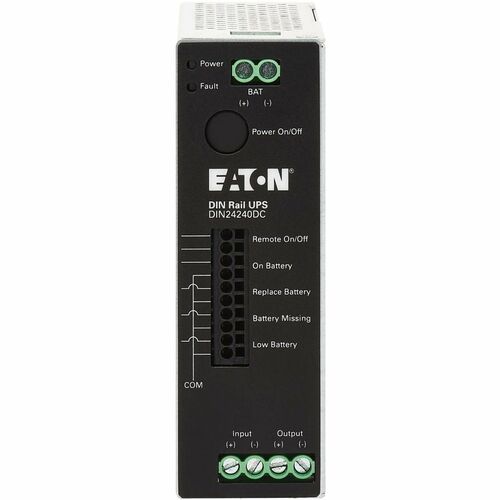

LEDs on the front panel confirm normal operation and indicate alarm or fault status. Remote on/off can help you avoid maintenance surprises. The DIN24240DC has dry contacts for battery status and UPS communication.
Easy Preventative Maintenance and Initial Troubleshooting
The DIN24240DC requires connection of the BPDIN24XL external battery module (sold separately). Up to four battery modules can be connected to extend backup runtime. The self-test capability can extend the life of the UPS and minimize disruption to operations.
- Compact in size and offers highly efficient solution
- Prevent critical data loss by staying powered during a blackout with up to 240 W load capacity
- 240 VA load capacity provides sufficient backup during power failures
- Keep your sensitive devices powered with a backup of up to 10 minute at full load
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | LED Indicators:
|
| Display & Graphics | |
| Display | LED |
| Interfaces/Ports | |
| EPO Port | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Elevation | 9843 ft (3000146.40 mm) |
| Sound Emission (A-Weighted) | 40 dB(A) |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 20 Minute |
| Backup/Run Time (Full Load) | 10 Minute |
| Battery Characteristics | Valve-regulated |
| DC System Voltage | 24 V DC |
| Physical Characteristics | |
| Weight (Approximate) | 14.40 oz (408.23 g) |
| Form Factor | DIN Rail |
| Height | 4.80" (121.92 mm) |
| Width | 1.50" (38.10 mm) |
| Depth | 5" (127 mm) |
| Power Description | |
| Input Voltage | 24 V DC |
| Output Voltage | 24 V DC |
| Load Capacity (VA) | 240 VA |
| Load Capacity (Watt) | 240 W |
| Output Power Factor | 1 |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| Restriction of Hazardous Substances (RoHS) | |
| Restriction of Hazardous Substances (RoHS) 3 | |
| General Information | |
| Product Type | Standby UPS |
| Manufacturer Part Number | DIN24240DC |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | DIN24240DC |
| Product Name | DIN24240DC 240VA DIN Rail UPS |
| Brand Name | Eaton |
| Technical Information | |
| Application/Usage | IT System |
| Machine Control | |
| Manufacturing Facility | |
| Network | |
| Storage Device | |
| Automation Industry | |
| Edge Computing | |
| Factory | |
| Industrial | |
| Plug/Connector Type | Hardwired |
| Phase | Single Phase |
| Receptacle Type | Hardwired |
| Receptacle Detail | 1 x Hardwired |
