Flexible Power Protection for Smart Industrial Applications
The DIN24480DC standby UPS system with hardwire DC input/output delivers reliable power and battery backup for computing, networking, control and storage equipment in factories, warehouses, edge computing locations and automated manufacturing and fabrication facilities. The rugged compact housing withstands demanding conditions and integrates seamlessly and securely into electrical enclosures in any non-traditional IT environment.
Ideal for Factory Floors and Extreme Temperatures

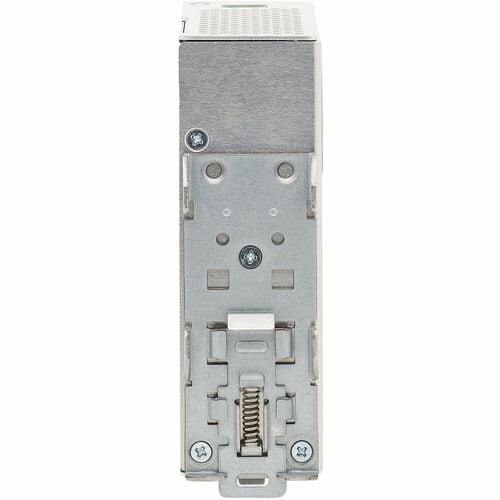

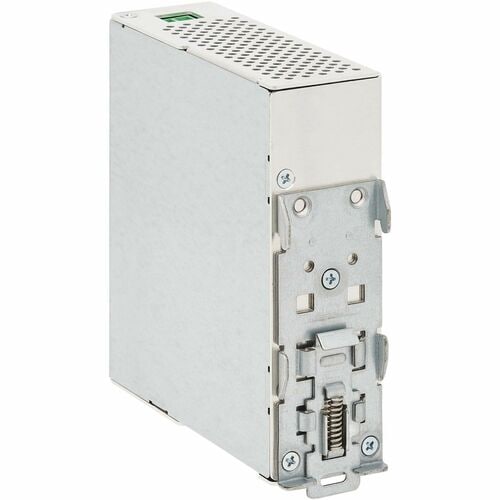

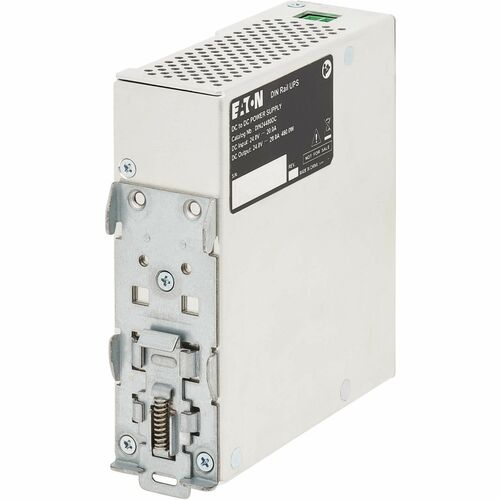

Get full use of the DIN24480DC's power capacity because there is no derating based on its operating temperature range of 0°C (32°F) to 50°C (122°F), which expands the number of locations in which it can be used. Built to fit into small spaces, the DIN24480DC is a UL 508 recognized component for use in industrial panels. Its pre-installed clamp enables quick mounting to a 35 mm DIN rail. Its fanless design reduces noise and increases reliability.
Reliable Battery Backup Keeps You Operational Through Power Outages
Power outages not only drain productivity from the factory floor, but they also damage expensive equipment. The DIN24480DC protects productivity by providing enough runtime to maintain operation during a brief power outage and protects equipment by allowing it to complete an operation during an extended outage. It also prevents brownouts, overvoltages, surges and line noise from damaging equipment that could destroy data and contribute to costly downtime.
Stay in Control of Your Operation

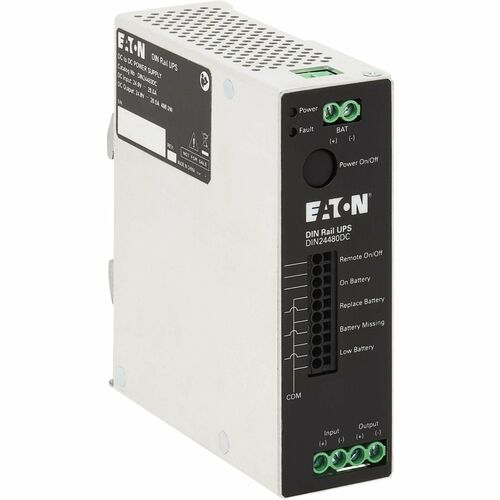

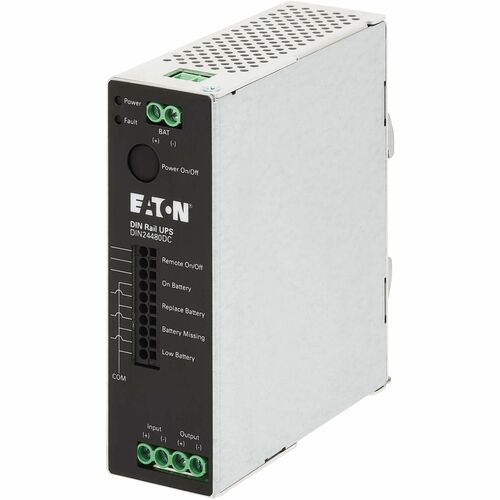

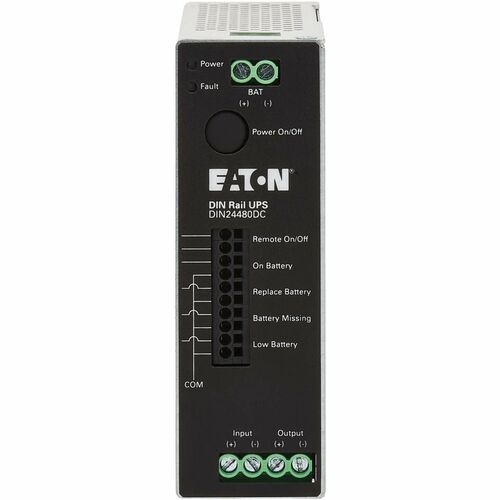

LEDs on the front panel confirm normal operation and indicate alarm or fault status. Remote on/off can help you avoid maintenance surprises. The DIN24480DC has dry contacts for battery status and UPS communication.
Easy Preventative Maintenance and Initial Troubleshooting
The DIN24480DC requires connection of the BPDIN24XL external battery module (sold separately). Up to four battery modules can be connected to extend backup runtime. The self-test capability can extend the life of the UPS and minimize disruption to operations.
- Protects computers and other electronic devices from harm caused by short power outages
- 480 VA load capacity - work without any interruption during power outages
- Prevent critical data loss by staying powered during a blackout with up to 480 W load capacity
- Up to 3 minute runtime on full load to preserve critical data from power shortage interruptions
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | LED Indicators:
|
| Display & Graphics | |
| Display | LED |
| Interfaces/Ports | |
| EPO Port | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Elevation | 6561 ft (1999792.80 mm) |
| Sound Emission (A-Weighted) | 40 dB(A) |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 10 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Battery Characteristics | Valve-regulated |
| DC System Voltage | 24 V DC |
| Physical Characteristics | |
| Weight (Approximate) | 14.40 oz (408.23 g) |
| Form Factor | DIN Rail |
| Height | 5" (127 mm) |
| Width | 1.50" (38.10 mm) |
| Depth | 4.80" (121.92 mm) |
| Power Description | |
| Input Voltage | 24 V DC |
| Output Voltage | 24 V DC |
| Load Capacity (VA) | 480 VA |
| Load Capacity (Watt) | 480 W |
| Output Power Factor | 1 |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Restriction of Hazardous Substances (RoHS) 3 | |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | |
| General Information | |
| Product Type | Standby UPS |
| Manufacturer Part Number | DIN24480DC |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | DIN24480DC |
| Product Name | DIN24480DC 480VA DIN Rail UPS |
| Brand Name | Eaton |
| Technical Information | |
| Application/Usage | IT System |
| Storage Device | |
| Factory | |
| Edge Computing | |
| Automation Industry | |
| Industrial | |
| Machine Control | |
| Manufacturing Facility | |
| Network | |
| Plug/Connector Type | Hardwired |
| Phase | Single Phase |
| Receptacle Type | Hardwired |
| Receptacle Detail | 1 x Hardwired |
