Not for sale in the USA until further notice.
Flexible Power Protection for Smart Industrial Applications

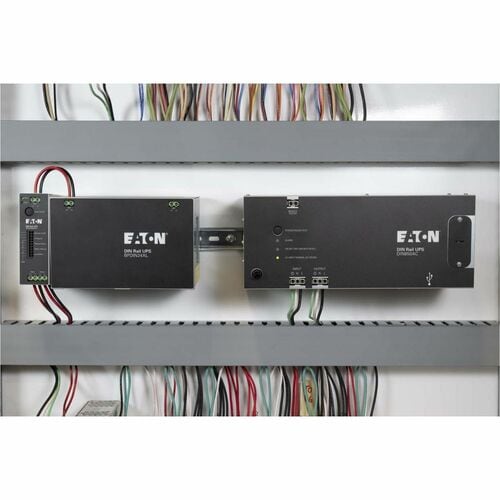

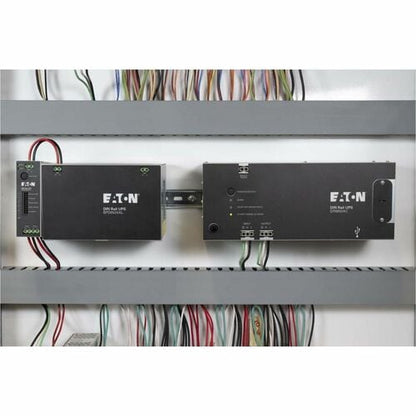

The DIN500AC standby UPS system with hardwire AC input/output delivers reliable power and battery backup for computing, networking, control and storage equipment in factories, warehouses, edge computing locations and automated manufacturing and fabrication facilities. The rugged compact housing withstands demanding conditions and integrates seamlessly and securely into electrical enclosures in any non-traditional IT environment.
Ideal for Factory Floors and Extreme Temperatures

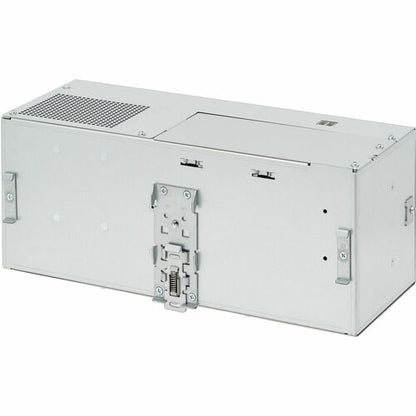

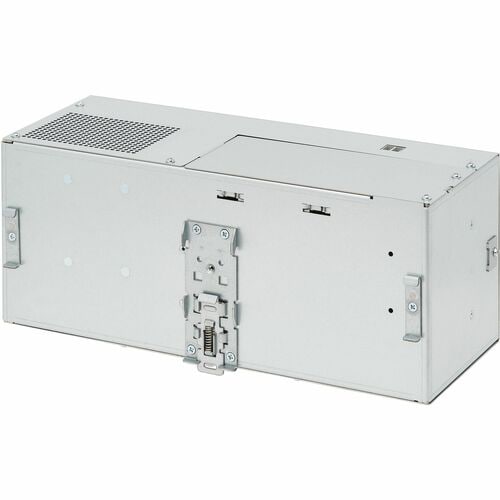

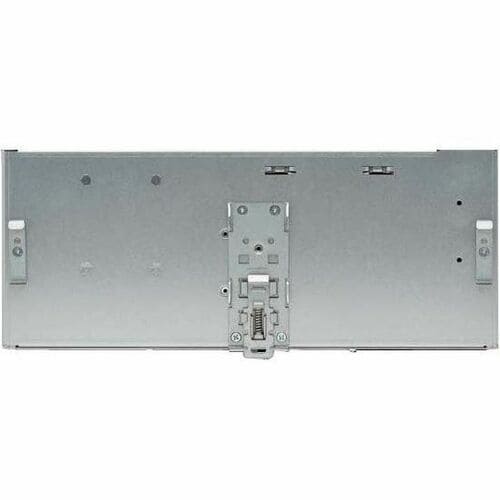

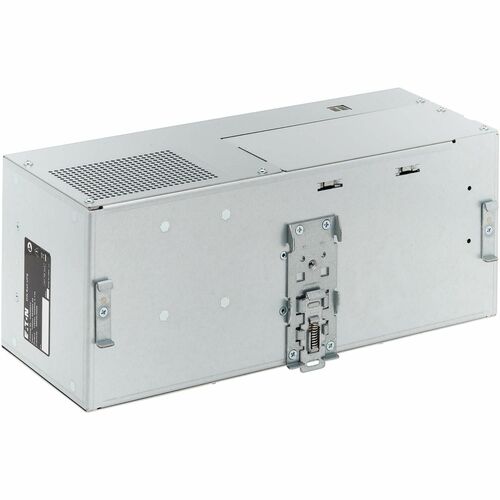

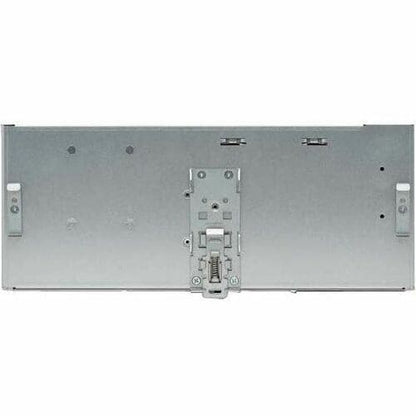

Get full use of the DIN500AC's power capacity because there is no derating based on its operating temperature range of 0°C (32°F) to 50°C (122°F), which expands the number of locations in which it can be used. Built to fit into small spaces, the DIN500AC is a UL 508 recognized component for use in industrial panels. Its pre-installed clamp enables quick mounting to a 35 mm DIN rail. Its fanless design reduces noise and increases reliability.
Reliable Battery Backup Keeps You Operational Through Power Outages
Power outages not only drain productivity from the factory floor, but they also damage expensive equipment. The DIN500AC protects productivity by providing enough runtime to maintain operation during a brief power outage and protects equipment by allowing it to complete an operation during an extended outage. It also prevents brownouts, overvoltages, surges and line noise from damaging equipment that could destroy data and contribute to costly downtime.
Convenient Automatic Restart
The DIN500AC automatically restarts when AC power is restored after an outage, eliminating the need for a costly site visit.
Stay in Control of Your Operation

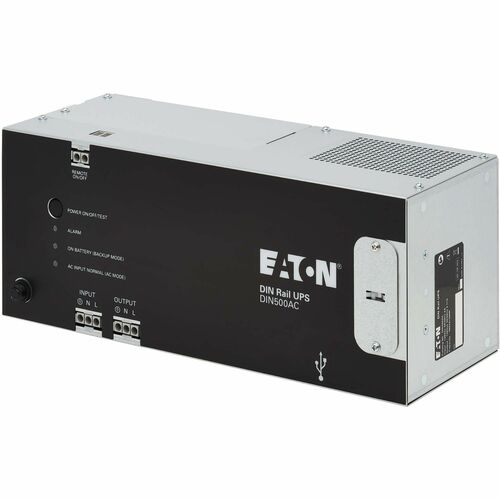

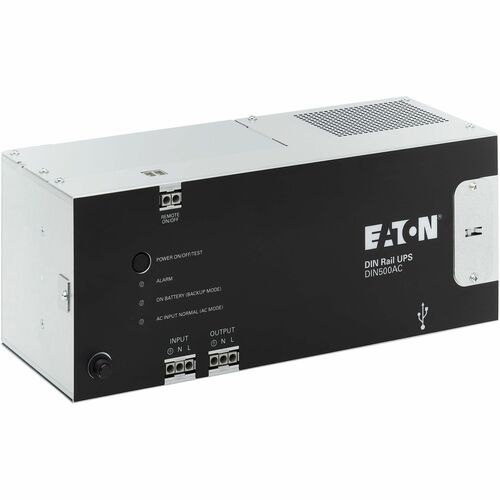

LEDs on the front panel confirm normal operation and indicate alarm or fault status. Remote on/off and a battery indicator mode can help you avoid maintenance surprises. The DIN500AC is compatible with PowerAlertOffice software for UPS monitoring and control via USB connection.
Easy Preventative Maintenance and Initial Troubleshooting
The DIN500AC's self-test capability and user-replaceable internal battery can extend the life of the UPS and minimize disruption to operations. A resettable circuit breaker helps prevent dangerous system overloads.
- Prevent critical data loss by staying powered during a blackout with up to 300 W load capacity
- 500 VA load capacity provides sufficient backup during power failures
- Keep your sensitive devices powered with a backup of up to 4 minute at full load
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | LED Indicators:
|
| Display & Graphics | |
| Display | LED |
| Interfaces/Ports | |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Conditions | |
| Thermal Dissipation | 31 BTU/h |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Elevation | 9843 ft (3000146.40 mm) |
| Sound Emission (A-Weighted) | 40 dB(A) |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Half Load) | 14.50 Minute |
| Backup/Run Time (Full Load) | 4 Minute |
| Battery Characteristics | Valve-regulated |
| DC System Voltage | 12 V DC |
| Physical Characteristics | |
| Weight (Approximate) | 11.60 lb (5261.67 g) |
| Form Factor | DIN Rail |
| Height | 15.80" (401.32 mm) |
| Width | 7.90" (200.66 mm) |
| Depth | 7.70" (195.58 mm) |
| General Information | |
| Product Type | Standby UPS |
| Manufacturer Part Number | DIN500AC |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | DIN500AC |
| Product Name | DIN500AC 500VA DIN Rail UPS |
| Brand Name | Eaton |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| 115 V AC | |
| Surge Energy Rating | 558 J |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Output Frequency | 60 Hz |
| Load Capacity (VA) | 500 VA |
| Load Capacity (Watt) | 300 W |
| Output Power Factor | 0.6 |
| Technical Information | |
| Application/Usage | Factory |
| Storage Device | |
| Automation Industry | |
| Edge Computing | |
| Industrial | |
| IT System | |
| Network | |
| Manufacturing Facility | |
| Machine Control | |
| Plug/Connector Type | Hardwired |
| Phase | Single Phase |
| Receptacle Type | Hardwired |
| EMI/RFI Noise Filter | Yes |
| Transfer Time | 10 ms |
| Receptacle Detail | 1 x Hardwired |
