À propos du produit
Create a dual-4K 60Hz workstation with this certified universal laptop docking station for USB-C and USB-A laptops. The USB-C dock features 60W Power Delivery 3.0, dual HDMI and/or DisplayPort monitors, fast-charge, and both USB-C and USB-A peripheral ports.

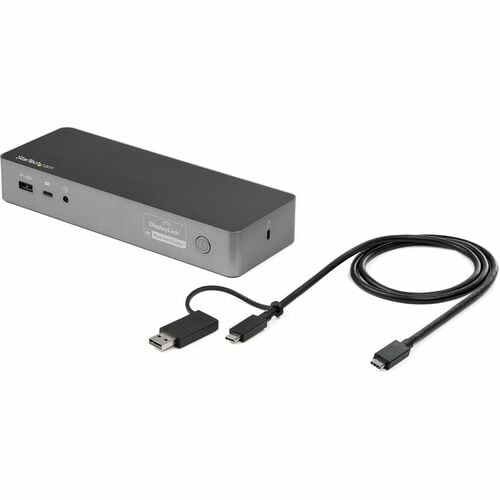

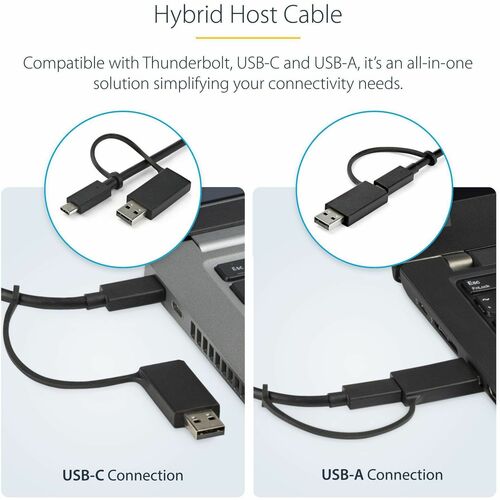

The Uniquely Universal Host Cable
The USB-C dock comes with a universal host cable that is designed with an attached USB-C to USB-A adapter to accommodate USB-A laptops. The cable also features an extended length of 1 meter (3.3 ft.) to support a wide variety of workstation setups.
Flexible Monitor Connections

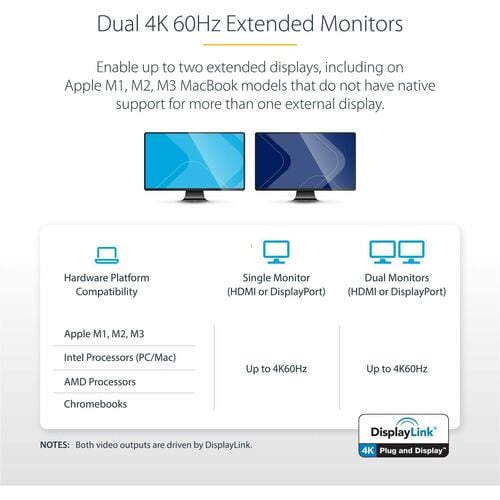

This is a dual 4K60Hz video docking station with support for both Ultra HD DisplayPort and/or HDMI monitors that lets you configure your video connections to best suit your needs.
-
Dual 4K DisplayPort | Up to 4096 x 2160p @ 60Hz
-
Dual 4K HDMI | Up to 4096 x 2160p @ 60Hz
-
Single 4K DisplayPort + Single 4K HDMI | Up to 4096 x 2160p @ 60Hz
-
Single 5K DisplayPort * | Up to 5120 Ã- 2880
*Requires monitor support for 5K using two DP ports

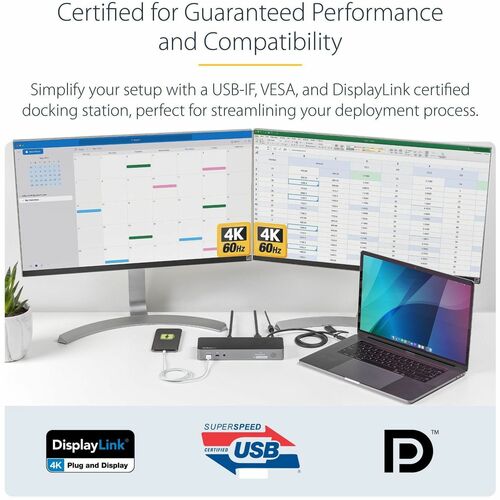

Certified for Universal Compatibility & Reliability
This docking station is fully certified to meet top industry standards for USB-IF (USB 3.1 Gen 1, USB Type-C and Power Delivery), VESA DisplayPort and DisplayLink (video connections) certification to guarantee the highest quality, reliability, and compatibility.

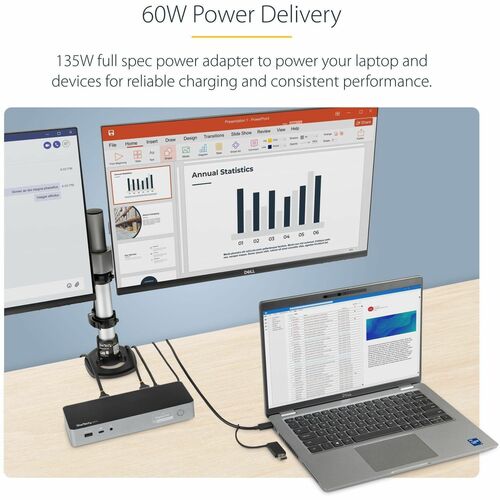

60W Power Delivery
Using a single cable, the dock powers and charges your laptop as you work with 60W PD for faster charging, using the 135W power adapter.
Easy and Convenient Setup

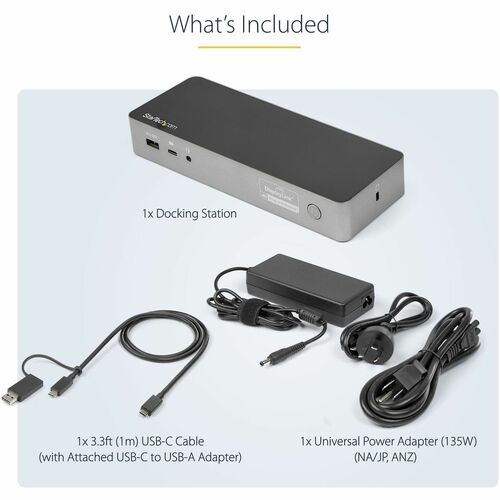

For fast setup right out of the box, the combo cable (USB-C with attached USB-A adapter) lets you connect any laptop. The dock has mounting holes for workstation mounting (bracket not included).

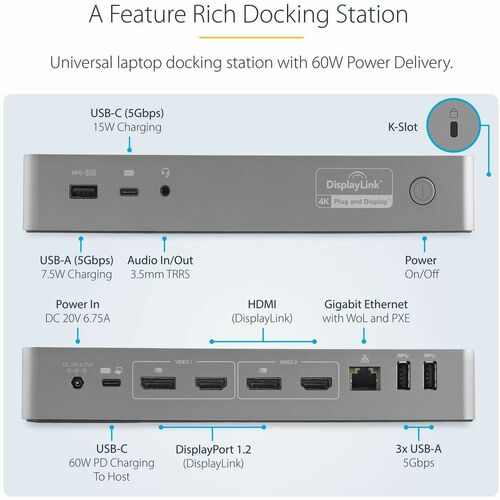

The Connections You Need
Connect your devices with four USB 3.1 ports: 1x USB-C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (PXE Boot support & Wake-on-LAN) and 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft.

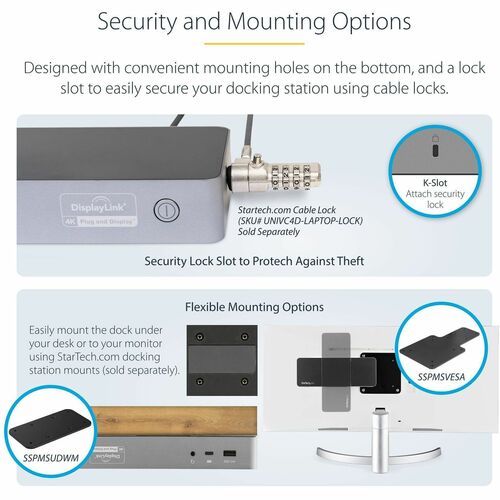

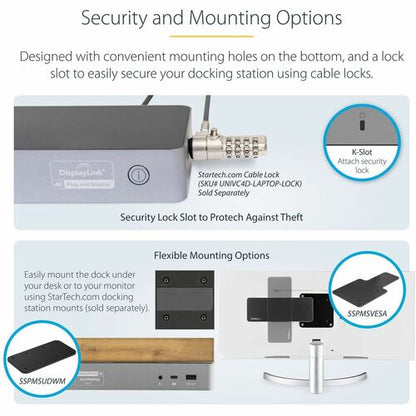

For more installation flexibility, you can use StarTech.com mounting brackets (SSPMSVESA) that are specifically designed for our docks and hubs, to mount your dock to a desk, wall, or other surfaces to give you the customized setup you need.
The IT Pro's Choice Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
DK30C2DPPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
More from the Manufacturer
- HYBRID DOCK: Universal docking station works with USB Type-C, Thunderbolt 3, Thunderbolt 4, and USB Type-A laptop computers, using a 2-in-1 USB-C/USB-A 3.1 Gen 1 cable, ideal for hoteling or shared workspace setup
- GUARANTEED COMPATIBILITY: USB-C & USB-A hybrid dock is USB-IF, VESA & DisplayLink certified for max performance & universal compatibility w/ Dell, HP, Lenovo & Apple where mixed laptop brands deployed
- FLEXIBLE DUAL MONITOR VIDEO OUTPUTS: This Dual 4K60Hz UHD USB-C & USB-A docking station supports multiple screens: Dual DisplayPort / Dual HDMI / DP + HDMI displays; supports dual extended displays on MacBook Pro/Air with Intel CPU or Apple M1/M2 chip
- FULL FEATURED DOCK: 1 USB-C, 3 USB-A (2 fast charge), Gigabit Ethernet & audio ports, k-slot for security & holes for optional mounting bracket; incl. DisplayLink update utility
- 60W POWER DELIVERY 3.0: Power & charge USB-C & Thunderbolt 3 and 4 workstation laptops & ultrabook incl. Thinkpad T Series, X1 Carbon, Surface Pro7, MacBook & USB-C Chromebooks w/ this USB-C port replicator
- CONNECTIVITY TOOLS: Provided with this device, the application improves performance and security, featuring MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities
Spécifications techniques
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Power Description | |
| Maximum Power Supply Wattage | 60 W |
| Technical Information | |
| Device Supported | Notebook |
| Connectivity Technology | Wired |
| Number of Displays Supported | 2 |
| Supported Resolutions | 5120 x 2880 |
| 4096 x 2160 | |
| Screen Mode Supported | 4K |
| General Information | |
| Product Type | Docking Station |
| Manufacturer Part Number | DK30C2DPPD |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 Each |
| Manufacturer | StarTech.com |
| Product Name | USB-C Docking Station with USB-A Laptop Compatibility - 60W PD |
| Brand Name | StarTech.com |

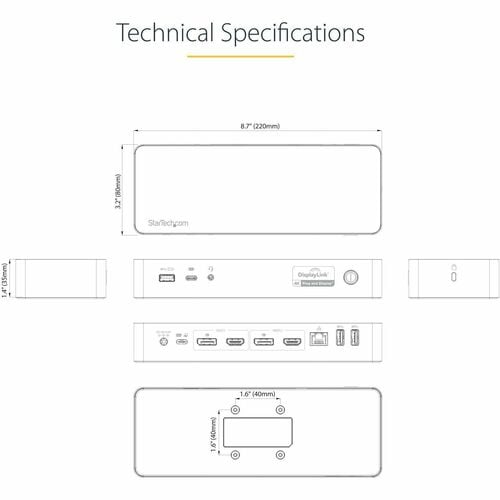

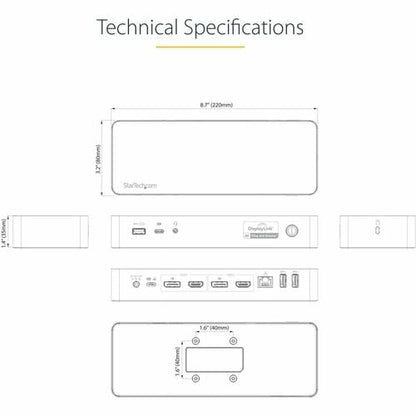

| Physical Characteristics | |
| Weight (Approximate) | 9.90 oz (280.66 g) |
| Height | 1.20" (30.48 mm) |
| Width | 3.10" (78.74 mm) |
| Depth | 8.70" (220.98 mm) |
| Product Color | Black |
| Space Gray | |
| Color Family | Dual Color |
| Miscellaneous | |
| Package Contents |
|
| Compatibility |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Brand Compatibility | HP |
| Lenovo | |
| Dell | |
| Apple | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Waste Electrical and Electronic Equipment Directive (WEEE) | |
| Software | |
| Operating System Supported | Windows 8.1 |
| Windows 8 | |
| Windows 7 | |
| Windows 11 | |
| Windows 10 | |
| Ubuntu 20.04 | |
| Ubuntu 18.04 | |
| Mac OS X 10.14 Mojave | |
| Mac OS X 10.11 El Capitan | |
| ChromeOS 55+ | |
| Interfaces/Ports | |
| Host Interface | USB Type C |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Audio Line Out | Yes |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 2 |
| Number of HDMI Outputs | 2 |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB Type-C (Fast-Charge, 24 pin) USB 3.0 Female |
| Number of USB Type-C Ports | 1 |
| Number of USB Type-A Ports | 3 |
| USB Type-A | Yes |
