À propos du produit

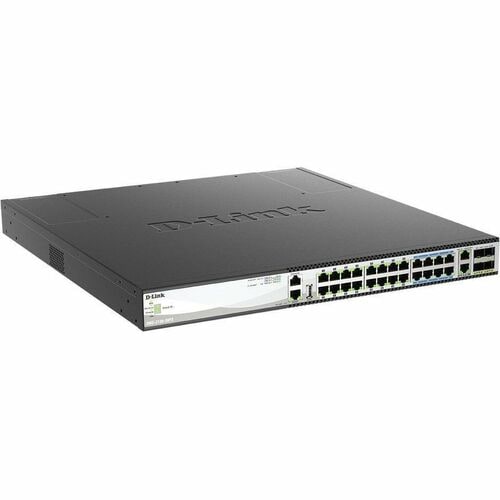

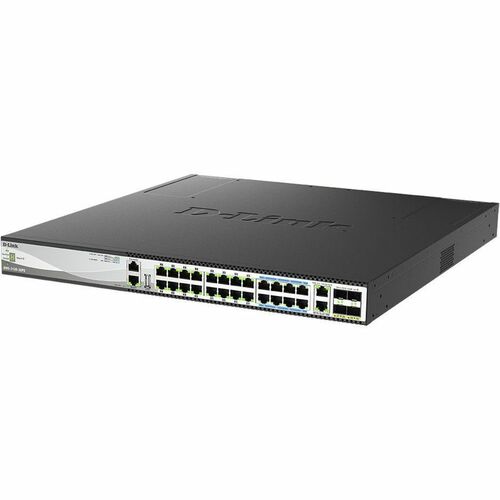

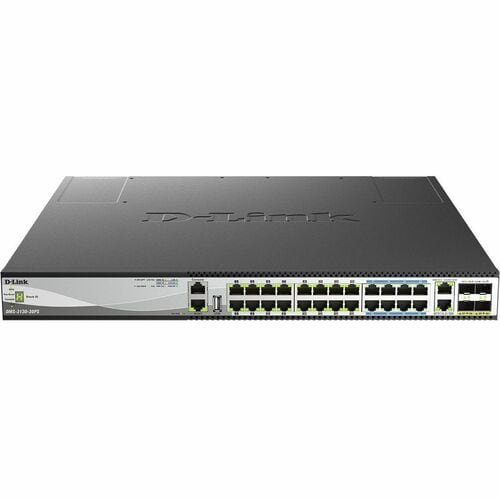

The DMS-3130 Series is a range of Layer 3 Stackable Multi-Gigabit Managed Switches designed to connect end-users in a secure enterprise or metro Ethernet access network. These switches support both multicasting and enhanced security, making them an ideal multi-Gigabit access layer solution. Each model boasts two 10GBASE-T ports and four 10G/25G SFP28 ports to provide versatility and speed.
Future-Proof Power over Ethernet Support
The DMS-3130-30PS provides sixteen 2.5G ports supporting 802.3af/at PoE and eight 5G ports supporting 60W 802.3bt PoE standards with a power budget of 740 watts expandable to 960 watts with dual power supplies. Multi-Gigabit PoE with up to 60W of power per port is ideal for Wi-Fi 6/6E access points, smart lighting or industrial automation equipment. Perpetual PoE and Fast PoE support delivers faster and uninterrupted power to connected devices even when the switch is booting.
- Can work as layer 3 routing for scalable network design
- Managed switch provides a reliable foundation for your network
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Stack port provides an easy and hassle-free way to extend your office network
- Quickly and easily set up a wired network with 26 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 26 ports
Spécifications techniques
| Management & Protocols | |
| Manageable | Yes |
| I/O Expansions | |
| Expansion Slot Type | SFP28 |
| Total Number of Expansion Slots | 4.0 |
| Miscellaneous | |
| Application/Usage | Automation Industry |
| Enterprise | |
| Wireless Access Point | |
| Package Contents |
|
| Physical Characteristics | |
| Weight (Approximate) | 14.42 lb (6540 g) |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Depth | 18.50" (470 mm) |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | DMS313030PS |
| Manufacturer Website Address | http://www.dlink.com |
| Manufacturer | D-Link Systems, Inc |
| Product Model | DMS-3130-30PS |
| Product Name | DMS-3130-30PS Ethernet Switch |
| Product Series | DMS-3130 |
| Brand Name | D-Link |
| Interfaces/Ports | |
| Modular | Yes |
| Uplink Port | Yes |
| Stack Port | Yes |
| Total Number of Network Ports | 26 |
| Port/Expansion Slot Details | 8 x 5 Gigabit Ethernet Network PoE++ |
| 2 x 10 Gigabit Ethernet Network | |
| 16 x 2.5 Gigabit Ethernet Network PoE+ | |
| 4 x 25 Gigabit Ethernet Expansion Slot | |
| Media & Performance | |
| Network Technology | 25GBase-X |
| 2.5GBase-T | |
| 10GBase-T | |
| 5GBase-T | |
| Ethernet Technology | 5 Gigabit Ethernet |
| 25 Gigabit Ethernet | |
| 2.5 Gigabit Ethernet | |
| 10 Gigabit Ethernet | |
| Media Type Supported | Optical Fiber |
| Twisted Pair | |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Frequency | 50 Hz |
| 60 Hz | |
| Power Consumption | 1211.50 W |
| Number of Power Supplies Supported | 2 |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | Yes |
| PoE Budget | 740 W |
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards | IEEE 802.1v |
| IEEE 802.1w | |
| IEEE 802.1x | |
| IEEE 802.3 | |
| IEEE 802.3ad | |
| IEEE 802.3af | |
| IEEE 802.3ah | |
| IEEE 802.3at | |
| IEEE 802.1ag | |
| IEEE 802.1AX | |
| IEEE 802.1D | |
| IEEE 802.1p | |
| IEEE 802.1Q | |
| IEEE 802.1s | |
| IEEE 802.3bt | |
| IEEE 802.3x |
