Audi Video Cables
Expected delivery 3 to 7 business days (exceptions applied)
Startech

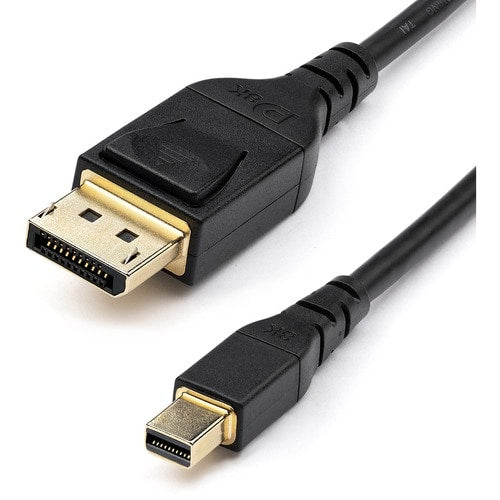

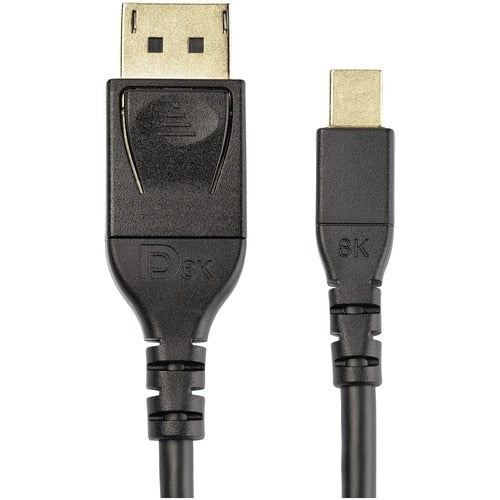

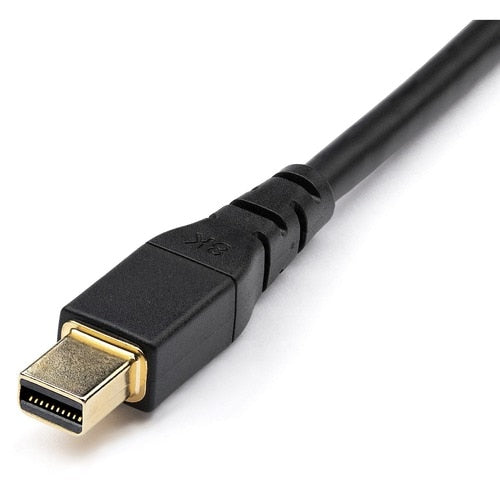

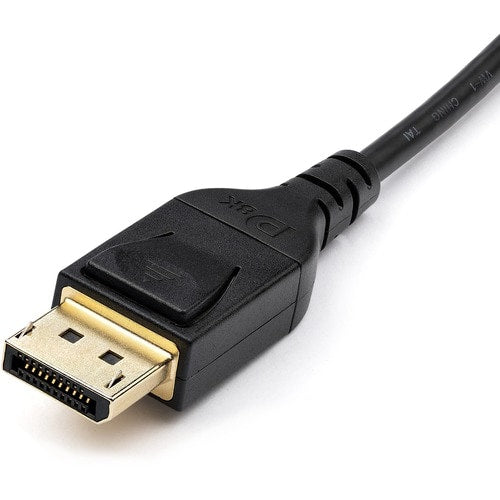

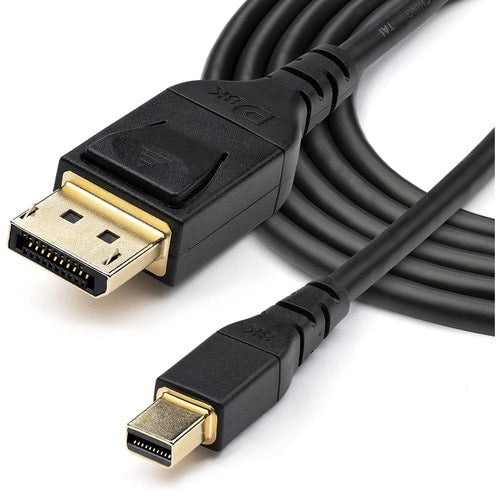

Câble Mini DisplayPort vers DisplayPort 1.4 certifié VESA StarTech.com (1 m)
Câble Mini DisplayPort vers DisplayPort 1.4 certifié VESA StarTech.com (1 m)
Câble mDP vers DisplayPort 1.4 : 1 m (3,3 pi) certifié VESA avec bande passante de 32,4 Gbit/s ; 8K 60 Hz (7680 x 4320) avec DSC, 4K 120 Hz (3840 x 2160), méta-transport HDR, HBR3, audio 32 ch, connexion en guirlande de moniteurs MST, contrôle d'erreur FEC ; compatible avec les moniteurs certifiés DisplayHDR. FIABLE
Construit avec un gestionnaire de câbles interne pour garantir l'intégrité du signal ; une feuille Al-Mylar avec tresse et une sous-structure de connecteur métallique assurent un blindage EMI ; un connecteur à verrouillage sur l'extrémité DP pour éviter toute déconnexion accidentelle. DURABLE : la gaine en PVC de ce câble vidéo fin (diamètre extérieur : 4,5 mm) (34 AWG) absorbe la tension des courbures fréquentes avec un serre-câble protégeant le cœur du cordon DisplayPort ; les connecteurs plaqués or empêchent l'oxydation et le ternissement.
Bloc de texte
Impossible de charger la disponibilité du service de retrait
Remise sur volume disponible - Demandez un devis.
Afficher tous les détails




Recently Viewed
Câble Mini DisplayPort vers DisplayPort 1.4 certifié VESA StarTech.com (1 m)
Résumé des informations sur le produit

À propos du produit
This 1 meter VESA Certified Mini DisplayPort to DisplayPort v1.4 cable features a mDP male connector on one end, and a DP male latching connector on the other, allowing you to connect any Mini DisplayPort-enabled laptop or workstation to an 8K TV
monitor or projector that uses a standard DisplayPort connection. Astonishing Picture Quality This mDP to DP 1.4 cable supports high resolutions of up to 8K (7680 x 4320p) at 60Hz or 4K (3840 x 2160) at 120Hz with a maximum HBR3 bandwidth of 32.4 Gbps and ensures that digitally protected content is displayed properly, with both HDCP 2.2 and DPCP capability. The adapter cable also supports: Multi-Stream Transport (MST) for daisy chaining multiple monitors. Display Stream Compression (DSC) v1.2 transport that enables up to 3:1 compression ratio. HDR meta transport, which offers a flexible metadata packet transport to support future dynamic HDR standards. Expanded audio transport, which covers capabilities such as 32 uncompressed audio channels, 1536kHz sample rate. Forward Error Correction (FEC), which overlays the DSC 1.2 transport, addresses the transport error resiliency needed for compressed video transport to external displays. Ultimate Compatibility This Mini DisplayPort to DisplayPort adapter is compatible with several systems, including your PC, Mac and Microsoft Surface devices with mDP. For ultimate convenience, this Mini DisplayPort cable works with computers that are equipped with Thunderbolt 2 ports, enabling you to connect your DP compatible displays to your mDP source. In addition, this DP1.4 adapter cable supports a wide selection of mDP1.4-equipped graphics cards such as: Radeon™ VII, SSG, WX x100, Pro and FirePro™ series. Nvidia Quadro P series. Built to Last This Mini DisplayPort to DisplayPort v1.4 adapter cable is designed with gold-plated latching DisplayPort connectors that prevent accidental disconnection, making it a great accessory for office or boardroom applications. Having 34 AWG conductors and 4.5mm outer diameter, this slim cable offers both flexibility and ease of connection. The DP14MDPMM1MB is backed by a StarTech.com lifetime warranty and free lifetime technical support. More from the Manufacturer More from the ManufacturermDP to DisplayPort 1.4 CABLE: 3.3ft (1m) VESA Certified with 32.4Gbps bandwidth; 8K 60Hz (7680x4320) w/ DSC, 4K 120Hz (3840x2160), HDR meta transport, HBR3, 32 ch audio, MST monitor daisy-chain, FEC error control; Works with DisplayHDR certified MonitorsRELIABLE: Built with internal wire manager to ensure signal integrity; Al-Mylar foil with Braid and metal connector sub-structure provide EMI shielding; Latching connector on DP end to prevent accidental disconnectionDURABLE: PVC jacket of this slim (outer diameter: 4.5mm) video cable (34 AWG) absorbs stress of frequent bends with strain relief protecting the core of the DisplayPort cord; Gold plated connectors prevent oxidization and tarnishBROAD COMPATIBILITY: Works with Nvidia Quadro: P620, P600, P400, and AMD Radeon Pro: VII, SSG, WX9100/4100/3200/3100/2100, W5700/5500 & FirePro: W9100/900/600/4100; Works with mDP 1.2 and Thunderbolt 2 host device (1080p/4K)SPECS: 3.3ft (1m) | Black | DisplayPort 1.4 | Mini DP Male to DP Male | 34 AWG | Jacket: PVC | EMI Shielding |Supported Protocols: HBR 3, 4:4:4 Chroma Subsampling, DSC 1.2, HDCP 2.2, MST | Lifetime Warranty
Spécifications techniques
Miscellaneous | |
Compatibility | Nvidia Quadro Graphic Cards:
AMD Graphic Cards:
|
Country of Origin | China |
Physical Characteristics | |
Shipping Weight (Approximate) | 2.72 oz (77.11 g) |
Shipping Height | 0.79" (20.07 mm) |
Shipping Width | 8.66" (219.96 mm) |
Jacket Material | Polyvinyl Chloride (PVC) |
Product Color | Black |
Color Family | Black |
General Information | |
Product Type | Video Cable |
Manufacturer Part Number | DP14MDPMM1MB |
Manufacturer Website Address | http://www.startech.com |
Packaged Quantity | 1 Each |
Manufacturer | StarTech.com |
Product Name | Mini Displayport to Displayport Cable |
Brand Name | StarTech.com |
Technical Information | |
Cable Length | 3.3 ft (1 m) |
Data Transfer Rate | 32.4 Gbit/s |
Device Supported | Audio/Video Device |
Computer | |
Projector | |
Workstation | |
TV | |
Graphics Card | |
MAC | |
Monitor | |
Notebook | |
PC | |
Shielding | Yes |
Features | Tarnish Resistant |
Stress Resistant | |
Strain Relief | |
Multi-Stream Transport (MST) Support | |
Latching Connector | |
Forward Error Correction (FEC) Support | |
EMI Protection | |
DPCP | |
Display Stream Compression (DSC) 1.2 | |
Bend Resistant | |
HDCP 2.2 | |
Cable Type | DisplayPort/Mini DisplayPort |
Connector Type on First End | DisplayPort 1.4 Digital Audio/Video - Male |
Connector Type on Second End | Mini DisplayPort 1.2 Digital Audio/Video - Male |
Connector Plating | Gold |
American Wire Gauge | 34 AWG |
Supported Resolution | 7680 x 4320 |
Connector on First End Details | 1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male |
Connector on Second End Details | 1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male |
Connector Gender on First End | Male |
Connector Gender on Second End | Male |
