À propos du produit
This DisplayPort 1.4 cable connects your DisplayPort™ laptop or desktop computer to an ultra-high definition 8K monitor, TV or projector. It supports resolutions up to 8K (7680 x 4320) at 60Hz.
The DisplayPort monitor cable provides the essential connection to support the next generation of ultra-high definition video.
Full-Featured DisplayPort 1.4
This 8K DisplayPort cable supports all DP 1.4 features:
- High Bit Rate 3 (HBR3) Bandwidths of 32.4 Gbps supporting the latest in industry standards
- High Dynamic Range (HDR10) for higher contrast ratio and vivid colors
- Multi-Stream Transport (MST) for daisy-chaining multiple monitors
- Display Stream Compression 1.2 (DSC) for maximum resolution output
- Forward Error Correction to manage data transmission errors
- High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display
- 32 Uncompressed Digital Audio Channels
Cable Key Features
Aluminum-mylar foil with braided shielding improve EMI protection Long lasting flexible TPE jacket & strain relief (TPE is non-toxic & halogen free for environmental sustainability)
Connector Key Features

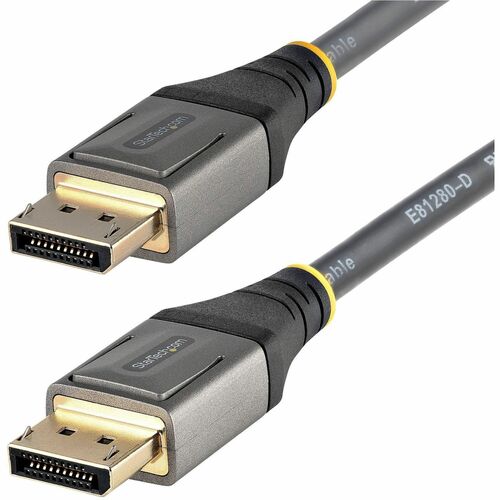

Die-cast aluminium sub-structure shielding improves signal integrity & prevents signal degradation Corrosion-free gold-plated connectors ensure premium video quality & enhanced reliability Tested to withstand 5000+ insertions
8K: Enabling Business Continuity
8K has a resolution of 7680 x 4320 and is also known as 4320p and Ultra High Definition (UHD). Suitable for digital signage and other commercial displays that require the highest available resolution. This cable is backward compatible with 4K and 5K displays making it the perfect peripheral to start futureproofing your cabling infrastructure.
Comprehensive Product Testing & Expert Technical Support
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
DP14VMMV1M is backed by a StarTech.com lifetime warranty.

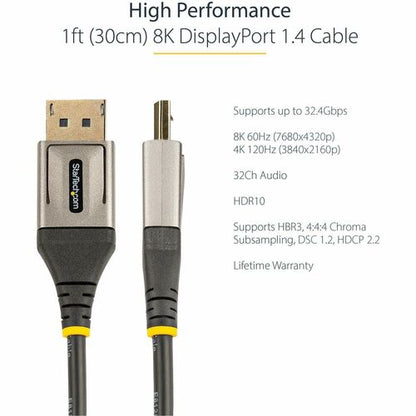

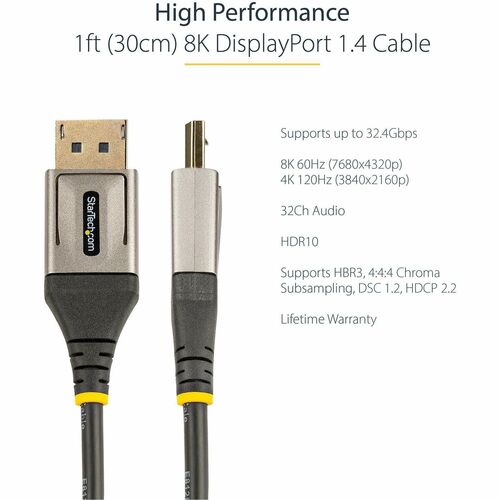

- HIGH PERFORMANCE: 1ft (30cm) DisplayPort 1.4 cable supports 8K 60Hz (7680x4320p) and 4K 120Hz (3840x2160p) w/HDR10, MST, 32Ch Audio, and GTC for precise audio channel timing; Up to 32.4Gbps bandwidth

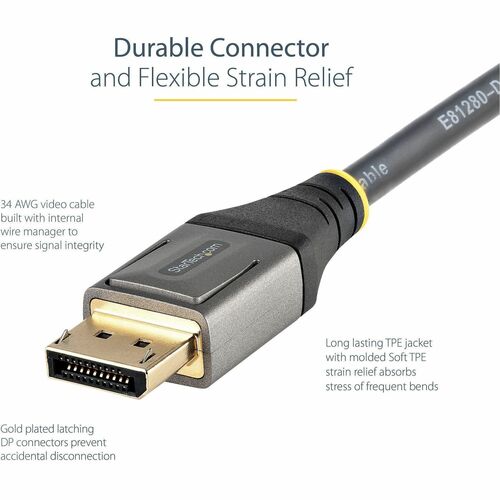

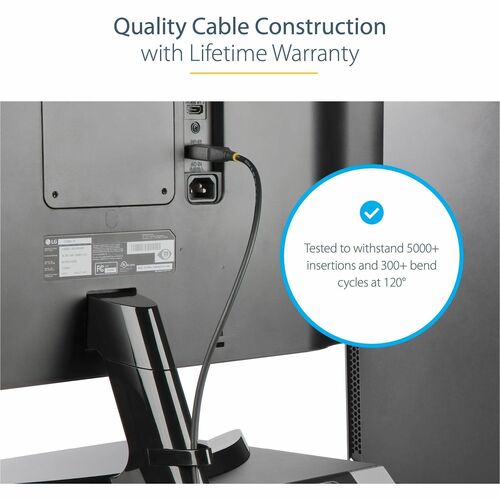

- DURABLE: Tested to withstand 5000+ insertions & 300+ bend cycles at 120° angle; Long lasting TPE jacket w/ molded Soft TPE strain relief absorbs stress of frequent bends; TPE is non-toxic, halogen free & RoHS certified for environmental sustainability

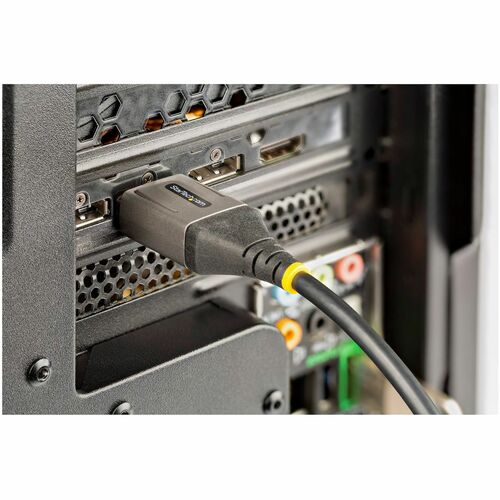

- RELIABLE: 34 AWG video cable built with internal wire manager to ensure signal integrity; Metal connector sub-structure & Al-Mylar Foil w/Braid (85% coverage) for superior EMI shielding; Gold-plated latching DP connectors prevent accidental disconnection

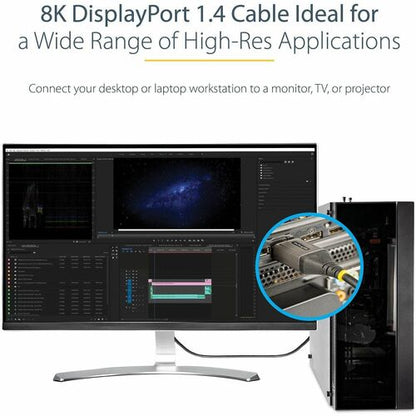

- APPLICATIONS: Ideal for high resolution 8K displays; Up to 120Hz refresh rate at 4K resolution; Suitable for high performance GPUs and AV workstations; Supports MST multi-monitor daisy chains; Connect a DP monitor to a UHD docking station
- SPECS: 1-foot (0.3-meter); Black; DP 1.4 cable; Supports HBR3, 4:4:4 Chroma Subsampling, DSC 1.2, HDCP 2.2; Latching Gold-Plated Connectors; Al-Mylar Foil w/Braided Shield; Compatible with DP 1.2 & previous versions
Spécifications techniques
| Miscellaneous | |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Physical Characteristics | |
| Jacket Material | Thermoplastic Elastomer (TPE) |
| Shielding Material | Aluminum Mylar Foil |
| Die-cast Aluminum | |
| Product Color | Gray |
| Black | |
| Color Family | Dual Color |
| General Information | |
| Product Type | A/V Cable |
| Manufacturer Part Number | DP14VMM1F |
| Manufacturer Website Address | http://www.startech.com |
| Packaged Quantity | 1 |
| Manufacturer | StarTech.com |
| Product Name | DisplayPort Audio/Video Cable |
| Brand Name | StarTech.com |
| Technical Information | |

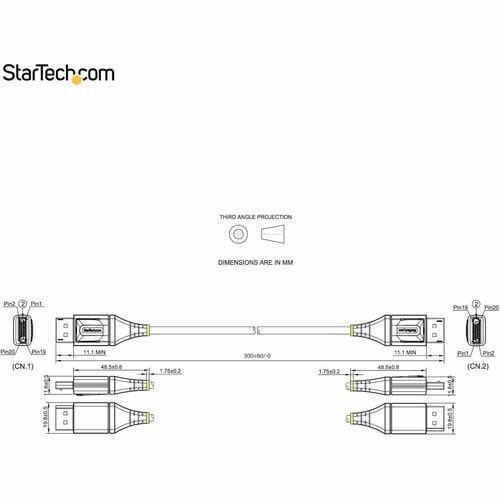

| Cable Length | 1 ft (0.30 m) |
| Data Transfer Rate | 32.4 Gbit/s |
| Device Supported | Desktop Computer |
| Digital Signage | |
| Display | |
| Docking Station | |
| Projector | |
| TV | |
| Notebook | |
| Monitor | |
| External GPU | |
| Workstation | |
| Audio/Video Device | |
| Shielding | Yes |
| Features | Braided |
| Corrosion-free | |
| Display Stream Compression (DSC) 1.2 | |
| EMI Protection | |
| Flexible | |
| Halogen Free | |
| HDCP 2.2 | |
| HDR10 Support | |
| High Bit Rate 3 (HBR3) | |
| Latching Connector | |
| Multi-Stream Transport (MST) Support | |
| Passive | |
| Strain Relief | |
| Number of Conductors | 19 |
| Cable Type | DisplayPort |
| Connector Type on First End | DisplayPort 1.4 Digital Audio/Video |
| Connector Type on Second End | DisplayPort 1.4 Digital Audio/Video |
| Connector Plating | Gold |
| American Wire Gauge | 34 AWG |
| Supported Resolution | 7680 x 4320 |
| Connector on First End Details | 1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
