À propos du produit

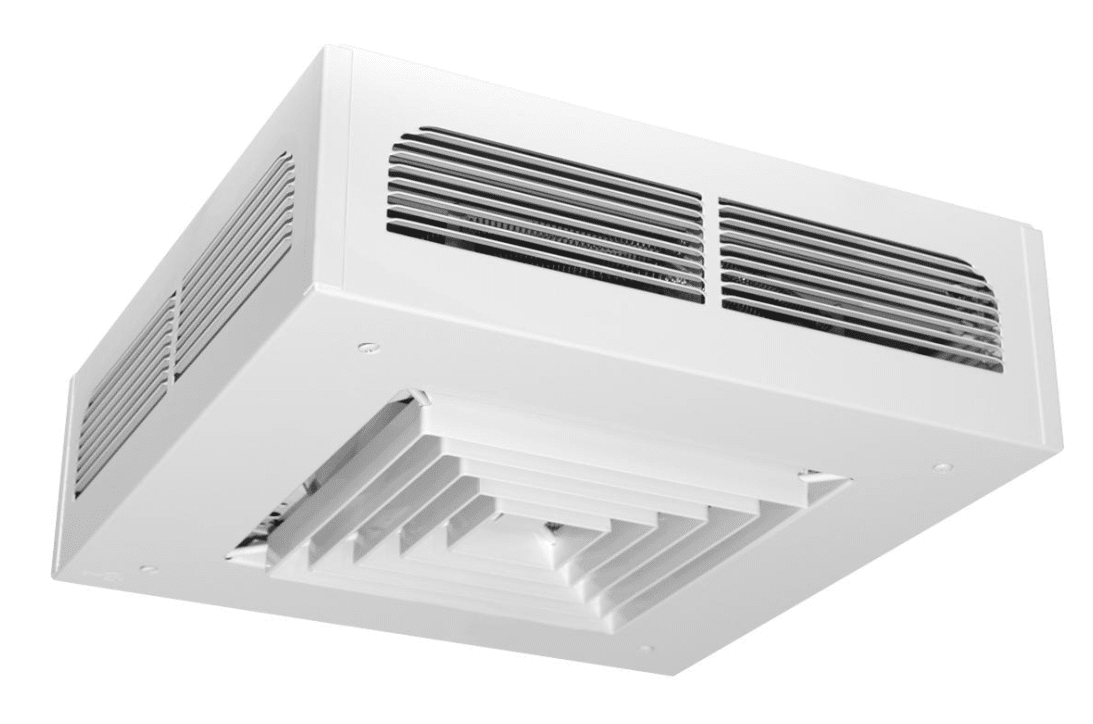

The Dragon's unique feature is its ability to recycle leftover warm air that has gathered at the ceiling and mix it with the chilly air below. Depending on the model, the Dragon can output between 2000 and 10,000 W and has voltage ranges of 208 to 600 V. This device, which is hung at least eight feet above the floor, can be surface mounted or recessed in the ceiling. Building corridors, garages, workshops, entryways and stairwells are all excellent uses for the Dragon.
Dragon Ceiling Fan Heater Features:
- MANUFACTURING
- 20-gauge steel cabinet and 14-gauge steel grille
- Quiet helicoidal fan
- Thermal protection with automatic reset
- Closed and permanently lubricated motor
- Pilot light indicates when power is on
- CONTROL
- Wall thermostat (not included) – the use of an electronic thermostat is strongly recommended (up to 4000 W)
- Fan-only mode for continuous air circulation, controlled by built-in selection switch
- Disconnect switch option available (ADRR models only)
- Fan-only mode available for use with wall mounted switch (optional OFS model, wall switch not provided)
- Heating mode, confirmed by pilot light when heating is on
- Connection of multiple units to the same thermostat is possible with a relay kit without a transformer (optional) and an external transformer (not provided)
- INSTALLATION
- Ceiling recessed in a T-bar (ADRR model)
- Ceiling surface mounted with bracket to support unit during wiring (ADRI and ADRII models) (included)
- Install at a minimum distance from adjacent or surrounding walls: 12 in. (ADRR or ADRI models); 24 in. (ADRII models)
- Mounting heights: 8 ft. (2 kW or 3 kW units); 10 ft. (4 kW or 5 kW units); 12 ft. (7.5 kW or 10 kW units)
- COLORS
- Standard: white, soft white
- ORORA (optional): refer to www.stelpro.com/en-US/orora
- FINISH: Epoxy-polyester powdercoat
- ELEMENT: Nichrome element produces instant heat
- WARRANTY: Three Years
Dragon Ceiling Fan Heater Specifications:
- Power Watts: 3000
- Voltage Volts: 240
- Air Flow Cfm: 250
- Weight: 7.2 (16)
- Color: Whte
Spécifications techniques
