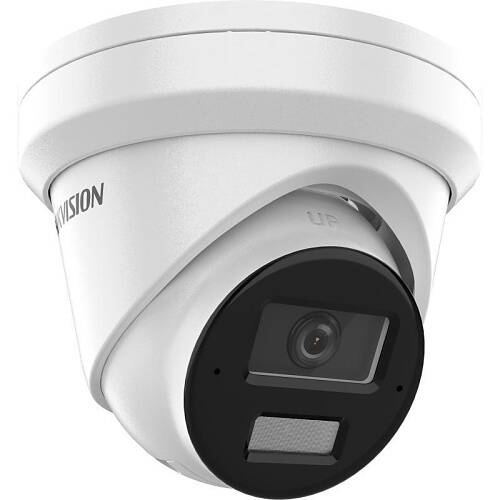

Caméra IP réseau Hikvision AcuSense Smart Hybrid Turret, 4 MP, IR, 2,8 mm, blanche (DS-2CD2343G2-LI2U 2,8 mm)

The Hikvision AcuSense Smart Hybrid Turret Camera is a cutting-edge 4MP network camera with advanced deep-learning features like human and vehicle classification alongside a host of additional features. Built-in arrayed dual-microphone provides real-time high-quality audio, and smart hybrid light with integrated infrared and white light supplementation provides consistent light levels in footage, no matter how harsh or dim the background. 120 dB true WDR technology allows users to install the camera in direct, harsh lighting without impacting fidelity of details or colours of foreground subjects.

Water and dust resistant IP67 construction for year-round indoor or outdoor installation, the AcuSense Smart Hybrid Turret Camera is an excellent compliment to any networked or PoE-powered NVR IP camera system.

DS-2CD2343G2-LI2U 2.8MM Specs and Features

• Image Sensor: 1/2.9"" Progressive Scan CMOS
• Max. Video Resolution: 2688 × 1520
• Min. Illumination (Colour): 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotate: 0° to 360°
• Lens Type: Fixed focal lens, 2.8mm
• Focal Length & FOV: 2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 122°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.6
• Depth of Field: 1.4 m to ?
• DORI: D: 63 m, O: 25 m, R: 12 m, I: 6 m
• Supplement Light Type: IR, White Light
• Supplement Light Range: Up to 30 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm
• Video Output (max): 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Video Compression Standards: H.265/H.264/H.264+/H.265+, MJPEG
• Video Bit Rate: 32 Kbps to 8 Mbps
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Bit Rate Control: CBR, VBR
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream
• Target Cropping: Yes
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise Filtering: Yes
• Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
• User/Host: Up to 32 users, 3 user levels (administrator, operator, and user)
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• Image Parameters Switch: Yes
• Day/Night Switch: Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR): 120 dB
• SNR: ? 52 dB
• Image Enhancement: BLC, HLC,3D DNR
• Privacy Mask: 8 programmable polygon privacy masks
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in Microphone: Arrayed dual-microphone
• On-Board Storage: Built-in memory card slot; supports microSD/microSDHC/microSDXC cards up to 512 GB (not included)
• Reset Key: Yes
• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
• Deep Learning Function: Perimeter Protection; Line crossing, intrusion; Supports alarm triggering by specified target types (human and vehicle)
• Power: 12 VDC ± 25%, 0.58 A, max. 7 W,Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9 W
• Material: Metal
• Dimensions: Ø127.3 mm × 96.3 mm (Ø5.0"" × 3.8"")
• Weight: Approx. 515 g (1.1 lb.)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
• Approvals
  • EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7; KC: KN32: 2015, KN35: 2015
  • Safety: CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
  • Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • Protection IP67: IEC 60529-2013
