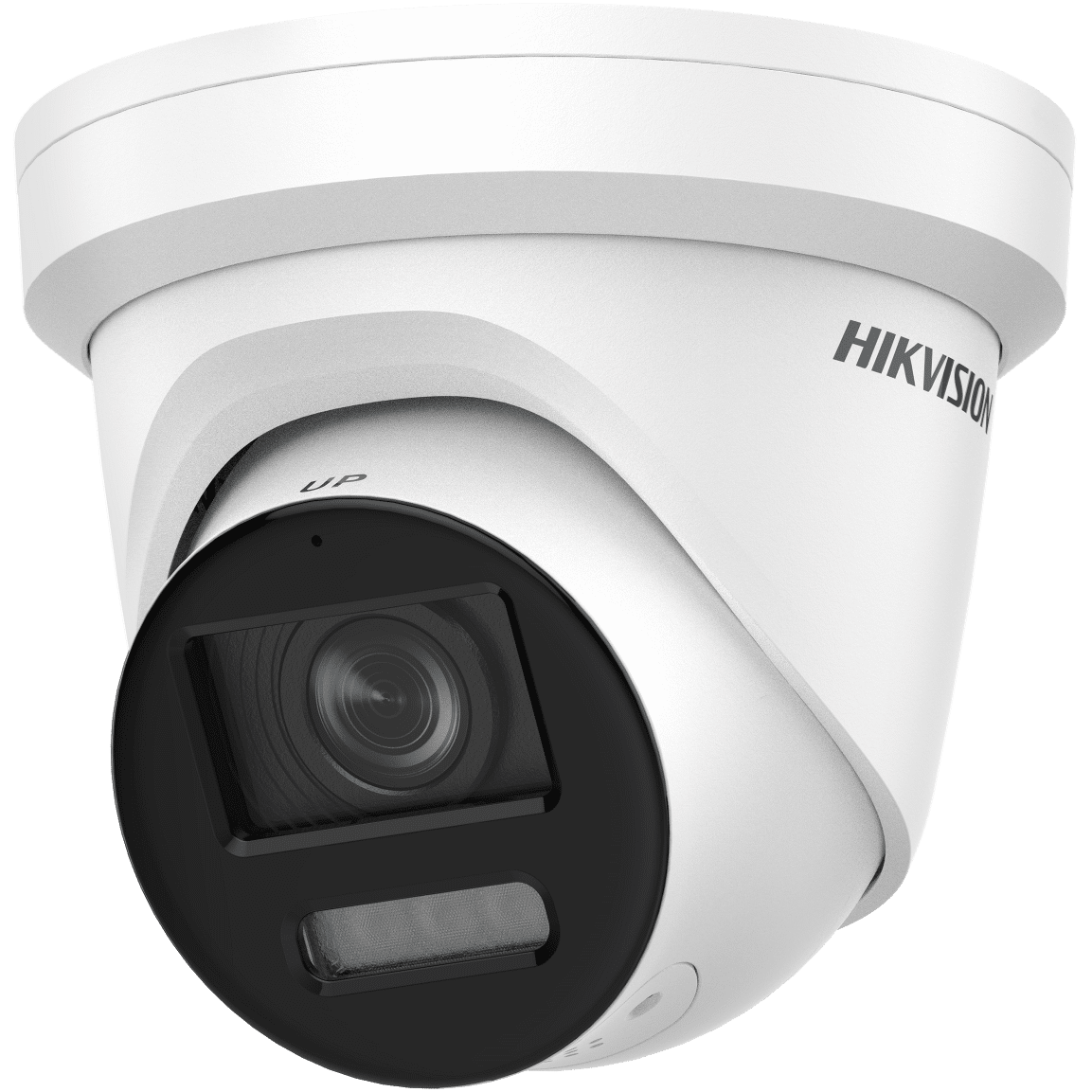

Hikvision 8MP IP Turret Camera, ColorVu, Strobe Light/Audible Warning, 4mm Overview
Hikvision ColorVu technology provides 24/7 vivid colorful images with F1.0 advanced lenses and high-performance sensors. F1.0 super-aperture collects more light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light.
Hikvision 8MP IP Turret Camera Features
- High-quality imaging with 8 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong backlight due to 130 dB WDR technology
- Focus on human and vehicle targets classification based on deep learning
- 24/7 colorful imaging
- Active strobe light and audio alarm to warn intruders off
- Provide real-time security via built-in two-way audio
- Audio and alarm interface available
- Water and dust resistant (IP67)
Hikvision 8MP IP Turret Camera Specifications
- Camera
- Image Sensor: 1/1.2? Progressive Scan CMOS
- Max. Resolution: 3840 × 2160
- Min. Illumination: Color?0.0005 Lux @ (F1.0, AGC ON)?0 Lux with white light
- Shutter Speed: 1/3 s to 1/100,000 s
- Day & Night: 24/7 Color imaging
- Angle Adjustment: Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV:
- 2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124°
- 4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104°
- Lens Mount: M mount
- Iris Type: Fixed
- Aperture: F1.0
- Depth Of Field:
- 2.8 mm: 4 m to ?
- 4 mm: 6.2 m to ?
- DORI:
- DORI:
- 2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m
- 4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m
- DORI:
- Illuminator:
- Supplement Light Type: White Light
- Supplement Light Range: Up to 30 m
- Smart Supplement Light: Yes
- Video
- Main Stream:
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz:
- 24 fps (3840 × 2160)
- 30 fps (3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream:
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
- Third Stream:
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 x 1080, 1280 × 720, 640 × 480, 640 × 360)
- Video Compression:
- Main stream: H.265/H.264/H.264+/H.265+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- Video Bit Rate: 32 Kbps to 16 Mbps
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR/VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region Of Interest (ROI): 1 fixed region for mainstream and sub-stream
- Main Stream:
- Audio
- Environment Noise Filtering: -U: Yes
- Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
- Audio Bit Rate: -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
- Network
- Simultaneous Live View: Up to 6 channels
- API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
- User/Host: Up to 32 users. 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Web Browser:
- Plug-in required live view: IE 10, IE 11
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Wide Dynamic Range (WDR): 130 dB
- SNR: ? 52 dB
- Privacy Mask: 8 programmable polygon privacy masks, mask color or mosaic configurable
- Day/Night Switch: Day, Night, Auto, Schedule
- Image Enhancement: BLC, HLC, 3D DNR
- Image Parameters Switch: Yes
- Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
- Interface
- Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
- Built-In Microphone: Yes
- Built-In Speaker: 1.5 W, 10 cm: 95 dB
- Audio:
- 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 K?, interface type: non-equilibrium
- 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 ?, interface type: non-equilibrium
- Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
- Reset Key: Yes
- Event
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)), scene change detection
- Linkage: Upload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email
- Deep Learning Function
- Face Capture: Yes
- General
- Power:
- 12 VDC ± 25%, 0.63 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
- PoE: 802.3af, Class 3, 36 V to 57 V, 0.24 A to 0.15 A
- Material: Cover: metal, main body: metal
- Dimension: Ø138.3 mm × 120.1 mm (Ø5.4"" × 4.7"")
- Package Dimension:
- 170 mm × 170 mm × 150 mm (6.7"" × 6.7"" × 5.9"")
- Approx. 900 g (2 lb.)
- With Package Weight: Approx. 1190 g (2.6 lb.)
- Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 33 languages:
- English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function: Anti-flicker, heartbeat, mirror, password reset via e-mail, pixel counter
- Power:
- Approval
- EMC:
- FCC (47 CFR Part 15, Subpart B)
- CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
- RCM (AS/NZS CISPR 32: 2015)
- IC (ICES-003: Issue 7)
- KC (KN32: 2015, KN35: 2015)
- Safety:
- UL (UL 62368-1)
- CB (IEC 62368-1: 2014+A11)
- CE-LVD (EN 62368-1: 2014/A11: 2017)
- Environment:
- CE-RoHS (2011/65/EU)
- WEEE (2012/19/EU)
- Reach (Regulation (EC) No 1907/2006)
- Protection:
- IP67: IEC 60529-2013
- EMC:
