À propos du produit

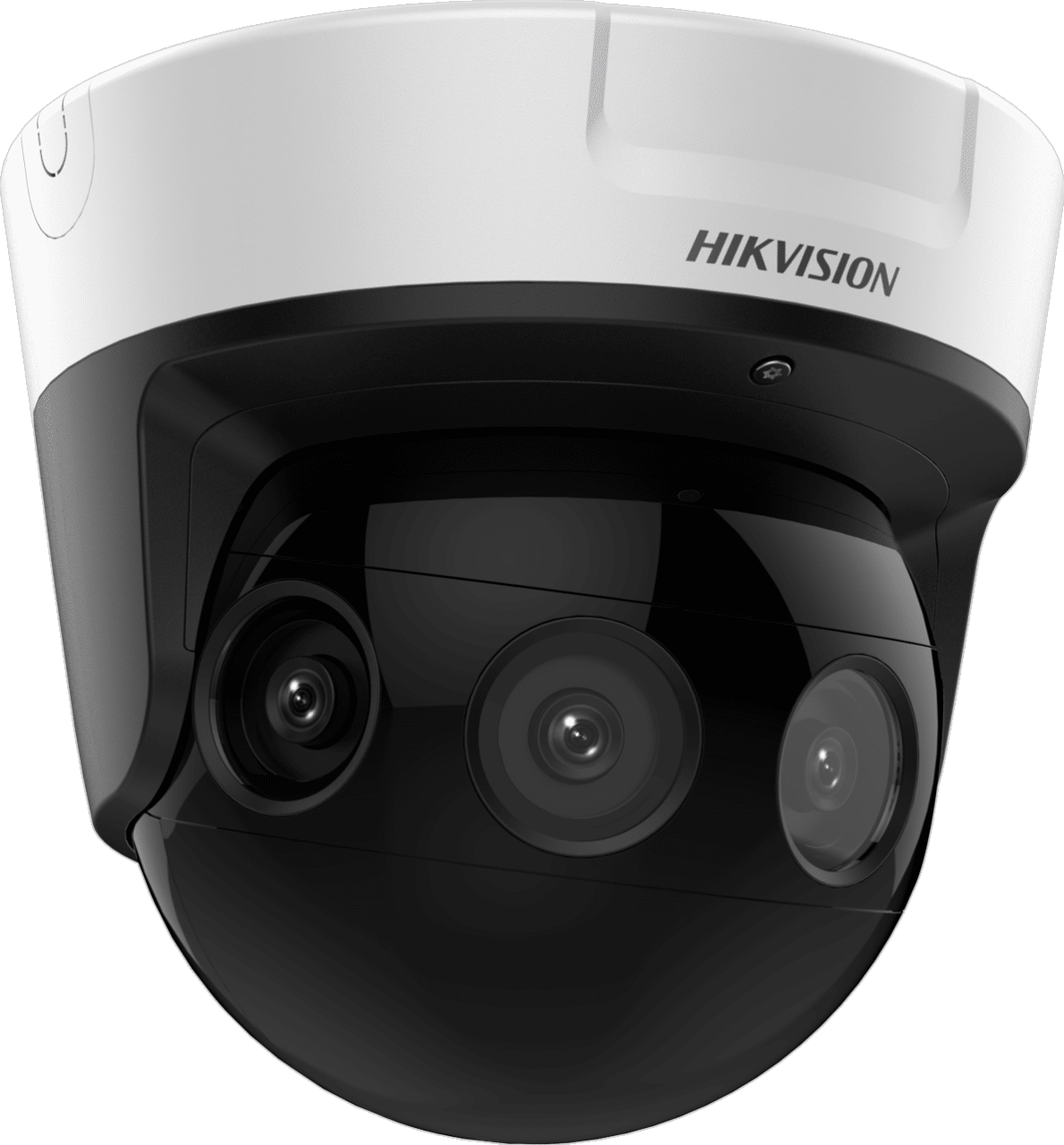

Hikvision DS-2CD6924G0-IHS PanoVu Panoramic Outdoor Dome Camera gives a four-lense panoramic view of 180° of your surroundings. It is featured with multiple modes including Panorama1, Panorama + ePTZ, Divided Panorama, and Original for flexible viewing. H.265+ and H.264+ compression saves bandwidth and data storage costs. IP67 and IK10 protect the camera from harsh outdoor conditions.
Hikvision 8MP Outdoor,180 Degree, (2x4MP) Darkfighter Dome Camera, 4mm Features:
- 180° splicing image to present all scenes that covered by the camera
- Built-in heater, ultra-low temperature start-up to -40?
- Water and dust resistant (IP67) and vandal-proof(IK10)
- Smart human density counting and public behavior analysis to increase public area safety
- DORI: The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera's ability to distinguish persons or objects within its field of view.
Hikvision 8MP Outdoor Specifications:
- Camera:
- Image Sensor: 1/1.8"" progressive scan CMOS
- Day/Night IR cut filter. Blue glass module to reduce ghost phenomenon
- Min. Illumination: Color: 0.003 Lux @ (F1.2, AGC ON); B/W: 0.0018 Lux @ (F1.6, AGC ON),0 Lux with IR
- Shutter Time: 1/25 s to 1/100,000
- Lens
- Aperture: ƒ/1.4
- Focus: Manual, semi-auto
- Lens Type Four fixed 2.8 mm lenses
- Illuminator
- IR Range: Four IR LEDs, up to 66 ft (20 m)
- Wavelength: 850 nm
- Video
- Maximum Resolution: 2.8 mm, 6mm
- Main Stream: 2.8 mm, 6mm
- Sub Stream: 2.8 mm, 6mm
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 65 Mbps
- SVC: H.264 and H.265 encoding
- Audio
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32–192 Kbps (MP2L2)/32 Kbps (PCM)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering: Yes
- Network
- Network Storage: MicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR
- Security: Password protection, complicated password, HTTPS encryption, 802.1x authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS1.0, TLS1.1
- Simultaneous Live View: Up to 20 channels
- User/Host: Up to 32 users. 3 user levels: administrator, operator, and user
- Web Browser: IE8+
- Image
- Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable
- Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In
- Wide Dynamic Range (WDR): Digital WDR
- Image Enhancement: BLC, HLC, 3D DNR, Defog, EIS (only the original mode supports)
- Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24-bit BMP format
- Interface
- Communication Interface: 1 RJ-45 10M/100M/1000M Ethernet port; 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- On-Board Storage: Built-in microSD/SDHC/SDXC slot, up to 256GB
- Audio:
- 1 input (line in), 3.5 mm 3-section connector, max. input amplitude: 1 vpp, input impedance: 4.7 K?, interface type: non-equilibrium;
- 1 output (line out), 3.5 mm 3-section connector, max. output amplitude: 1 vpp, output impedance: 100 ?, interface type: non-equilibrium
- Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1A)
- General
- Firmware Version: v5.5.84
- Web Client Language: English
- Startup and Operating Conditions: -40° to +60° C (-40° to +140° F), humidity 95% or less (non-condensing)
- Storage Conditions: -40° to +60° C (-40° to +140° F), humidity 95% or less (non-condensing)
- Power Supply 12 VDC, three-core terminal block, PoE (802.3at)
- Power Consumption and Current: 12 VDC, 1.6 A, maximum 24 W, PoE (802.3at, 42.5 V to 57 V), 0.5 to 0.4 A
- Material: Aluminum alloy
- Camera Dimensions: 189.5 mm × 207.63 mm × 206.62 mm (7.46"" × 8.17"" × 8.13"")
- Camera weight: approximately 3 kg (6.6 lb)
Spécifications techniques
Hikvision DS-2CD6924G0-IHS PanoVu Panoramic Outdoor Dome Camera gives a four-lense panoramic view of 180° of your surroundings. It is featured with multiple modes including Panorama1, Panorama + ePTZ, Divided Panorama, and Original for flexible viewing. H.265+ and H.264+ compression saves bandwidth and data storage costs. IP67 and IK10 protect the camera from harsh outdoor conditions.
Hikvision 8MP Outdoor,180 Degree, (2x4MP) Darkfighter Dome Camera, 4mm Features:
- 180° splicing image to present all scenes that covered by the camera
- Built-in heater, ultra-low temperature start-up to -40?
- Water and dust resistant (IP67) and vandal-proof(IK10)
- Smart human density counting and public behavior analysis to increase public area safety
- DORI: The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera's ability to distinguish persons or objects within its field of view.
Hikvision 8MP Outdoor Specifications:
- Camera:
- Image Sensor: 1/1.8"" progressive scan CMOS
- Day/Night IR cut filter. Blue glass module to reduce ghost phenomenon
- Min. Illumination: Color: 0.003 Lux @ (F1.2, AGC ON); B/W: 0.0018 Lux @ (F1.6, AGC ON),0 Lux with IR
- Shutter Time: 1/25 s to 1/100,000
- Lens
- Aperture: ƒ/1.4
- Focus: Manual, semi-auto
- Lens Type Four fixed 2.8 mm lenses
- Illuminator
- IR Range: Four IR LEDs, up to 66 ft (20 m)
- Wavelength: 850 nm
- Video
- Maximum Resolution: 2.8 mm, 6mm
- Main Stream: 2.8 mm, 6mm
- Sub Stream: 2.8 mm, 6mm
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 Kbps to 65 Mbps
- SVC: H.264 and H.265 encoding
- Audio
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32–192 Kbps (MP2L2)/32 Kbps (PCM)
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering: Yes
- Network
- Network Storage: MicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR
- Security: Password protection, complicated password, HTTPS encryption, 802.1x authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS1.0, TLS1.1
- Simultaneous Live View: Up to 20 channels
- User/Host: Up to 32 users. 3 user levels: administrator, operator, and user
- Web Browser: IE8+
- Image
- Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable
- Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In
- Wide Dynamic Range (WDR): Digital WDR
- Image Enhancement: BLC, HLC, 3D DNR, Defog, EIS (only the original mode supports)
- Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24-bit BMP format
- Interface
- Communication Interface: 1 RJ-45 10M/100M/1000M Ethernet port; 1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- On-Board Storage: Built-in microSD/SDHC/SDXC slot, up to 256GB
- Audio:
- 1 input (line in), 3.5 mm 3-section connector, max. input amplitude: 1 vpp, input impedance: 4.7 K?, interface type: non-equilibrium;
- 1 output (line out), 3.5 mm 3-section connector, max. output amplitude: 1 vpp, output impedance: 100 ?, interface type: non-equilibrium
- Alarm: 2 inputs, 2 outputs (max. 24 VDC, 1A)
- General
- Firmware Version: v5.5.84
- Web Client Language: English
- Startup and Operating Conditions: -40° to +60° C (-40° to +140° F), humidity 95% or less (non-condensing)
- Storage Conditions: -40° to +60° C (-40° to +140° F), humidity 95% or less (non-condensing)
- Power Supply 12 VDC, three-core terminal block, PoE (802.3at)
- Power Consumption and Current: 12 VDC, 1.6 A, maximum 24 W, PoE (802.3at, 42.5 V to 57 V), 0.5 to 0.4 A
- Material: Aluminum alloy
- Camera Dimensions: 189.5 mm × 207.63 mm × 206.62 mm (7.46"" × 8.17"" × 8.13"")
- Camera weight: approximately 3 kg (6.6 lb)
