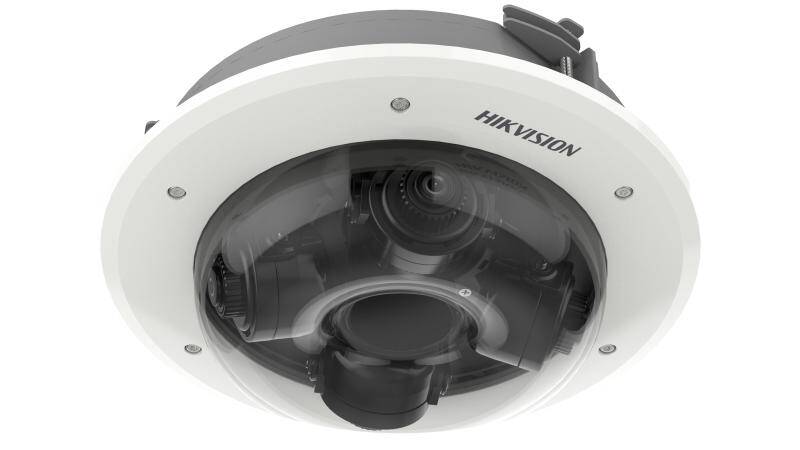

The Hikvision Mini Panovu In-Ceiling Camera combines 4 adjustable lenses and 5MP sensors to create a high-quality 360° panoramic image—eliminate blind spots, and adjust the individual lenses to create a custom, seamless monitoring solution for large, open spaces.
IP67 water and dust resistance combined with an IK10 vandal resistant rating makes the Hikvision Mini Panovu the ideal solution for both indoor and outdoor public installation, including showfloors, warehouses, public facilities, offices, and much more.
In-ceiling mounting creates a subtle footprint, while additional alarm and audio out interfaces allow installers to connect the camera to larger alarm systems for even greater automated security options; including individually adjustable smart alarm conditions for each lens
DS-2CD6D54G1-ZS/RC Specs and Features
- Image Sensor: 1/2.7"" Progressive Scan CMOS
- Min. Illumination:
- Color: 0.0125 Lux @(F1.9, AGC ON)
- B/W: 0.0025 Lux @(F1.9, AGC ON)
- Shutter Speed: 1 s to 1/100,000 s
- Slow Shutter: Yes
- Day &Night: IR cut filter
- Angle Adjustment:
- Pan: -60° to 60°
- Tilt: 10° to 90°
- Rotate: 0° to 350°
- WDR: 120 dB
- Aperture: F1.9
- Focus: Manual, semi-auto
- FOV:
- Horizontal FOV 100° to 49°
- Vertical FOV 72° to 36.4° \
- Diagonal FOV 134.4° to 61.4°
- Lens Mount: Ø 14
- Lens Type: Varifocal lens, 2.8 to 8 mm
- Max. Resolution: 2560 × 1920
- Video Stream: 3 defined streams
- Main Stream: 24 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720)
- Sub-Stream: 24 fps (704 × 480, 640 × 480)
- Third Stream: 8 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Video Compression:
- Main stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Video Bit Rate: 32 Kbps to 16 Mbps
- SVC: H.264 encoding
- H.264+: Main stream support
- H.265+: Main stream support
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
- Environment Noise Filtering: Yes
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Smart Event: Line crossing detection, up to 4 lines configurable; Intrusion detection, up to 4 regions configurable; Region entrance detection, up to 4 regions configurable; Region exiting detection, up to 4 regions configurable; Unattended baggage detection, up to 4 regions configurable; Object removal detection, up to 4 regions configurable; Scene change detection, audio exception detection, defocus detection
- Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error); Region of Interest 4 fixed regions for each stream
- Linkage Method: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
- Image Enhancement BLC, HLC, 3D DNR, Defog, EIS
- Image Setting: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
- Target Cropping: Yes
- Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In
- Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
- SNR: ?52 dB
- Network Storage microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), AN
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface
- Simultaneous Live View: Up to 20 channels
- User/Host: Up to 32 users. 3 user levels: administrator, operator and user
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
- Power Supply: 12 VDC ± 20%, reverse polarity protection; three-core terminal block 24 VAC ± 20%; PoE (802.3af, class 0)
- Power Consumption and Current: 12 VDC, 1.2 A, 14 W; 24 VAC, 1 A, 14 W; PoE (802.3af, 36 to 57 VDC), 0.36 A to 0.22 A, 13 W, class 0
- Material Bubble: plastic, camera: metal
- Dimensions:
- Camera: Ø255 × 95.9 mm (10? × 3.8?)
- With package: 312 × 311 × 163 mm (13.2? × 10.3? × 11.5?)
- Weight:
- Camera: 2.1 kg (4.7 lb.)
- With package: 3.4 kg (7.5 lb.)
- EMC: 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32:2015, KN 35: 2015
- Safety: UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
- Chemistry: 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
- Protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
Spécifications techniques
The Hikvision Mini Panovu In-Ceiling Camera combines 4 adjustable lenses and 5MP sensors to create a high-quality 360° panoramic image—eliminate blind spots, and adjust the individual lenses to create a custom, seamless monitoring solution for large, open spaces.
IP67 water and dust resistance combined with an IK10 vandal resistant rating makes the Hikvision Mini Panovu the ideal solution for both indoor and outdoor public installation, including showfloors, warehouses, public facilities, offices, and much more.
In-ceiling mounting creates a subtle footprint, while additional alarm and audio out interfaces allow installers to connect the camera to larger alarm systems for even greater automated security options; including individually adjustable smart alarm conditions for each lens
DS-2CD6D54G1-ZS/RC Specs and Features
- Image Sensor: 1/2.7"" Progressive Scan CMOS
- Min. Illumination:
- Color: 0.0125 Lux @(F1.9, AGC ON)
- B/W: 0.0025 Lux @(F1.9, AGC ON)
- Shutter Speed: 1 s to 1/100,000 s
- Slow Shutter: Yes
- Day &Night: IR cut filter
- Angle Adjustment:
- Pan: -60° to 60°
- Tilt: 10° to 90°
- Rotate: 0° to 350°
- WDR: 120 dB
- Aperture: F1.9
- Focus: Manual, semi-auto
- FOV:
- Horizontal FOV 100° to 49°
- Vertical FOV 72° to 36.4° \
- Diagonal FOV 134.4° to 61.4°
- Lens Mount: Ø 14
- Lens Type: Varifocal lens, 2.8 to 8 mm
- Max. Resolution: 2560 × 1920
- Video Stream: 3 defined streams
- Main Stream: 24 fps (2560 × 1920, 2048 × 1536, 1920 × 1080, 1280 × 720)
- Sub-Stream: 24 fps (704 × 480, 640 × 480)
- Third Stream: 8 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Video Compression:
- Main stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- H.264 Type: Baseline Profile/Main Profile/High Profile
- H.265 Type: Main Profile
- Video Bit Rate: 32 Kbps to 16 Mbps
- SVC: H.264 encoding
- H.264+: Main stream support
- H.265+: Main stream support
- Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)
- Environment Noise Filtering: Yes
- Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Smart Event: Line crossing detection, up to 4 lines configurable; Intrusion detection, up to 4 regions configurable; Region entrance detection, up to 4 regions configurable; Region exiting detection, up to 4 regions configurable; Unattended baggage detection, up to 4 regions configurable; Object removal detection, up to 4 regions configurable; Scene change detection, audio exception detection, defocus detection
- Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error); Region of Interest 4 fixed regions for each stream
- Linkage Method: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture
- Image Enhancement BLC, HLC, 3D DNR, Defog, EIS
- Image Setting: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
- Target Cropping: Yes
- Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In
- Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
- SNR: ?52 dB
- Network Storage microSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), AN
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface
- Simultaneous Live View: Up to 20 channels
- User/Host: Up to 32 users. 3 user levels: administrator, operator and user
- Client: iVMS-4200, Hik-Connect, Hik-Central
- Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
- Power Supply: 12 VDC ± 20%, reverse polarity protection; three-core terminal block 24 VAC ± 20%; PoE (802.3af, class 0)
- Power Consumption and Current: 12 VDC, 1.2 A, 14 W; 24 VAC, 1 A, 14 W; PoE (802.3af, 36 to 57 VDC), 0.36 A to 0.22 A, 13 W, class 0
- Material Bubble: plastic, camera: metal
- Dimensions:
- Camera: Ø255 × 95.9 mm (10? × 3.8?)
- With package: 312 × 311 × 163 mm (13.2? × 10.3? × 11.5?)
- Weight:
- Camera: 2.1 kg (4.7 lb.)
- With package: 3.4 kg (7.5 lb.)
- EMC: 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32:2015, KN 35: 2015
- Safety: UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
- Chemistry: 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
- Protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
