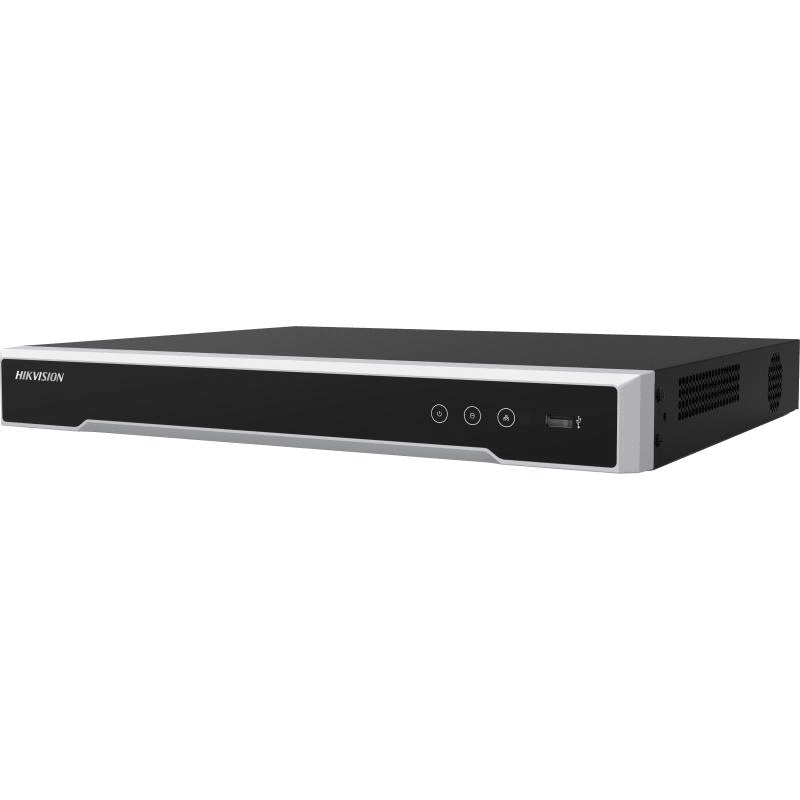

The Hikvision DS-7608NI-M2/8P is an 8-channel 8K PoE NVR using H.265+/H.265/H.264+/H.264 video formats. This M-Series NVR is capable of simultaneous 8-channel playback and features both 8K video resolution output via HDMI, and independent HDMI and VGA outputs. Supports multiple VCA (video content analytics) events for custom control and alert conditions. Enables and supports configuration of select smart camera functions such as VCA detection (motion, line crossing, zone intrusion, etc.), heat maps, ANPR and people counting. Use the Hik-Connect app and DDNS for easy network management and remote functionality. Smoothly stream and review video and support web access without additional plug-ins or software required. Includes a 4TB drive and 2 SATA bays for additional Purple or Security-rated HDD.
DS-7608NI-M2/8P-4T Specs:
- IP Video Input: 8-ch, up to 8-ch 32 MP/24 MP IP video inputs.
- Incoming Bandwidth: 128 Mbps
- Outgoing Bandwidth: 256 Mbps
- HDMI Output: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 ×1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 ×720/60Hz, 1024 × 768/60Hz
- VGA Output: 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×768/60Hz
- Video Output Mode: HDMI/VGA independent output
- CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output: 1-ch, RCA (Linear, 1 K?)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
- Decoding Format: H.265+/H.265/H.264+/H.264
- Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback: 8-ch
- Decoding Capability: 2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30fps)/40-ch@1080p (30 fps)
- Dual-Stream Recording Support: Stream Type Video, Video & Audio
- Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
- Remote Connections: 128
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- PoE Interface: 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power ? 120 W
- Standard: IEEE 802.3 af/at
- SATA: 2 SATA interfaces
- Capacity: Up to 16 TB capacity for each HDD
- Alarm In/Out: 4/1
- USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
- Power Supply: 100 to 240 VAC, 50 to 60 Hz
- Consumption: ? 15 W (without HDD and PoE off)
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Dimension (W × D × H): 385 × 315 × 52 mm (15.2"" × 12.4"" × 2.0"")
- Weight: ? 3 kg (without HDD, 2.2 lb.)
- Certifications:
- FCC: Part 15 Subpart B, ANSI C63.4-2014
- CE: EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
