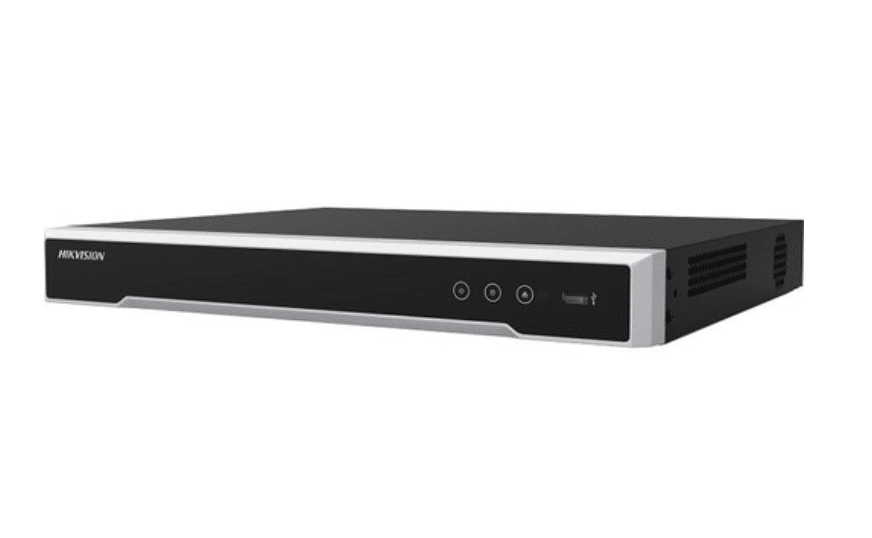

Hikvision NVR 16 canaux 1U 16 POE 8K, sans disque dur (DS-7616NI-M2/16P)

The Hikvision M Series DS-7616NI-M2/16P 16-Channel is designed to provide professional recording and reliability.

Hikvision DS-7616NI-M2/16P 16-Channel M Series 32MP Embedded Plug-and-Play NVR, No HDD Features:

• Professional and Reliability

• H.265+ compression effectively reduces the storage space by up to 75%
• Dual-stream recording saves bandwidth
• Adopt stream over TLS encryption technology which provides a more secure stream transmission service
• Support double verification for playback and downloading HD Video Output
• Provide independent HDMI and VGA outputs
• HDMI video output at up to 8K resolution Storage and Playback
• Up to 2 SATA interfaces for HDD connection
• 16-ch synchronous playback Smart & POS Function
• Support multiple VCA (Video Content Analytics) events
• Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
• POS information overlay on live view and playback, and POS triggered recording and alarm Network & Ethernet Access
• 16 independent PoE network interfaces
• 1 self-adaptive 10/100/1000 Mbps Ethernet interface
• Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
• Smooth streaming technology
• Support web access without plug-in

Hikvision DS-7616NI-M2/16P 16-Channel M Series 32MP Embedded Plug-and-Play NVR, No HDD Specifications:
Video and Audio

• IP Video Input: 16-ch Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
• Incoming Bandwidth: 256 Mbps
• Outgoing Bandwidth: 256 Mbps
• HDMI Output: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output: 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Video Output Mode: HDMI/VGA independent output
• CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output: 1-ch, RCA (Linear, 1 K?)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)

Decoding

• Decoding Format: H.265+/H.265/H.264+/H.264
• Recording Resolution: 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
• Synchronous Playback: 16-ch Decoding Capability 2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@12 MP (20 fps)/8-ch@8 MP (25 fps)/16-ch@4 MP (30 fps)
• Dual-Stream: Recording Support
• Stream Type: Video, Video & Audio
• Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network

• Remote Connection: 128
• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

• Interface: 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power: ? 200 W
• Standard: IEEE 802.3 af/at

Auxiliary Interface

• SATA: 2 SATA interfaces
• Capacity Up to 14 TB capacity for each HDD
• Alarm In/Out 4/1
• USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

General

• Power Supply 100 to 240 VAC, 50 to 60 Hz
• Consumption ? 15 W (without HDD and PoE off)
• Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity 10% to 90%
• Dimension (W × D × H) 385 × 315 × 52 mm (15.2"" × 12.4"" × 2.0"")
• Weight ? 3 kg (without HDD, 2.2 lb.)
