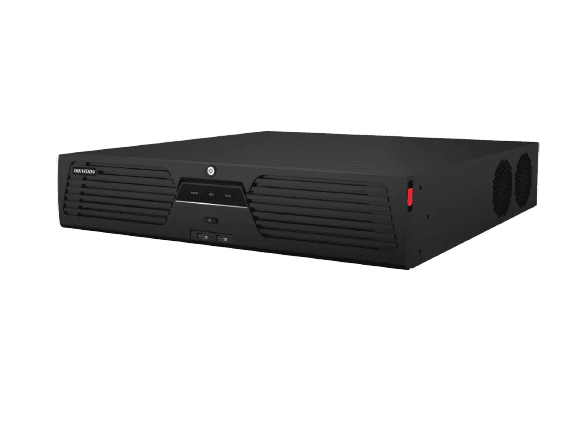

Enregistreur vidéo numérique Hikvision 64 canaux 4K, 8 baies SATA, 2U, prise en charge RAID (DS-9664NI-M8)

Hikvision DS-9664NI-M8 64 Channel 4K NVR, 8 SATA Bays, 2U, Raid Support. This NVR supports two-way audio. Two HDMI and two VGA ports enable video output to an external monitor at up to 8K resolution (HDMI output 1 only).

Hikvision DS-9664NI-M8 64 Channel 4K NVR, 8 SATA Bays, 2U, Raid Support Features:

• Up to 64-ch IP camera inputs
• Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16- ch@4 MP/32-ch@1080p decoding capacity
• Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
• 2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
• Supports special cameras, including people counting cameras,
• ANPR (automatic number plate recognition) camera, and fisheye camera
• Advanced streaming technology enables smooth live views in poor network conditions
• Supports RAID 0, 1, 5, 6, 10, and N+M hot spare for even more reliable data storage, effectively avoids data loss risks

Hikvision DS-9664NI-M8 64 Channel 4K NVR, 8 SATA Bays, 2U, Raid Support Specifications:

Video and Audio

• IP Video Input: 64-ch
• Incoming Bandwidth: 400 Mbps
• Outgoing Bandwidth: 400 Mbps
• HDMI 1 Output: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 720/60Hz, 1024 × 768/60Hz
• HDMI 2 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA 1 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Video Output Mode
  • HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;
  • HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
• CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output: 2-ch, RCA (Linear, 1 K?)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)

Decoding

• Decoding Format: H.265+/H.265/H.264+/H.264
• Recording Resolution: 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous playback: 16-ch
• Decoding Capability: 2-ch@32 MP (30 fps)/8-ch@8 MP (30 fps)/16-ch@4 MP (30 fps)/32-ch@1080p (30 fps)
• Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM

Network

• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network Interface: 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• RAID: RAID Type RAID0, RAID1, RAID5, RAID6, RAID10

Auxiliary Interface

• Serial Interface: 1 RS-485 (full-duplex), 1 RS-232
• Capacity: Up to 14 TB capacity for each disk
• Alarm In/Out: 16/9
• USB Interface Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
• Ctrl 12V: Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm output 9.
• DC 12V: 12 VDC, 1 A power output

General

• Power Supply: 100 to 240 VAC, 50 to 60 Hz
• Consumption: ? 50 W (without HDD)
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 445 × 465 × 93 mm ( 17.5""× 18.3"" × 3.7"")
• Weight: ? 10 kg (22 lb)

Certification

• Obtained Certification CE, FCC
• FCC Part 15 Subpart B, ANSI C63.4-2014
• CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
