À propos du produit

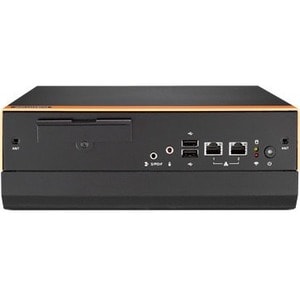

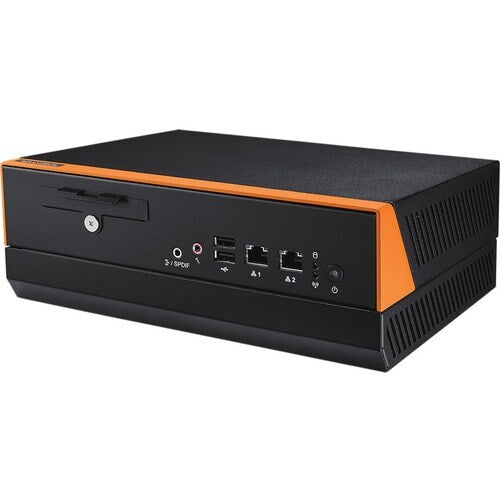

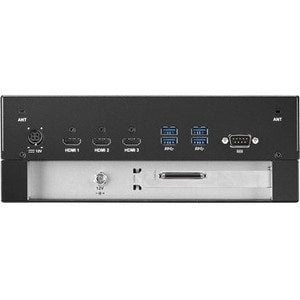

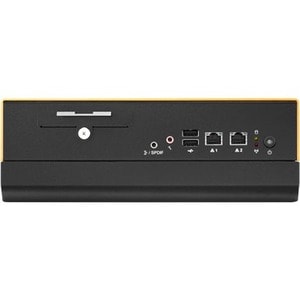

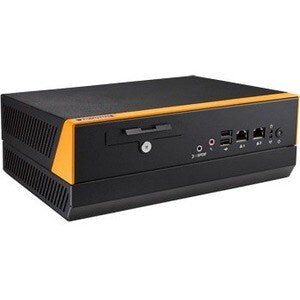

Advantech DS-980 is the first video wall solution of digital signage players, which is powered by the 6th generation Intel® Core i7/ i5/ i3/ Celeron rPGA processor (LGA 1151), and stackable design for PCI Express 3.0 x16 expansion which is used for optional graphic cards. DS-980 delivers the exceptional graphic performance by Intel HD Graphics 530 which supports HEVC/265, AVC/264, MPEG2, VC1/WMV9, VP8, JPEG/MJPEG, VP9 video format. Additionally, DS-980 adopts the latest interfaces to fulfill the customer's advanced requirements, such as HDMI2.0 supports 4096 x 2160 @60Hz maximum resolution, DDR4 2133MHz SO-DIMM with dual channel (maximum capacity for 32GB, 16GB per SO-DIMM), and M.2 (2230 E key) for wireless function. Total display outputs on the DS-980 motherboard are 3 x HDMI which are designed for 1 x HDMI2.0 (printed HDMI1); 2 x 1.4 (printed HDMI2 & HDMI 3; HDMI2 supports CEC function). The maximum resolution is true 4K (4096 x 2160 @ 60Hz). Not only 3 x HDMI outputs but also the extra outputs from PCI Express 3.0 x16 slot for optional graphic card further support up to 6 outputs and realize the video wall application in retails, public services, institute and etc..
Spécifications techniques
| Network & Communication | |
| Ethernet | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Processor & Chipset | |
| Processor Type | Core i5 |
| Technical Information | |
| Video Wall Compatible | Yes |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 7.94 lb (3600 g) |
| Height | 3.46" (88 mm) |
| Width | 10.54" (267.60 mm) |
| Depth | 8.07" (205 mm) |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Number of HDMI Outputs | 3 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 4 |
| Serial | Yes |
| General Information | |
| Product Type | Digital Signage Appliance |
| Manufacturer Part Number | DS-980GF-U3A1E |
| Manufacturer Website Address | http://www.advantech.com |
| Packaged Quantity | 1 |
| Manufacturer | Advantech Co., Ltd |
| Product Model | DS-980GF-U3A1E |
| Product Name | DS-980GF-U3A1E Digital Signage Appliance |
| Product Series | DS-980 |
| Brand Name | Advantech |
