À propos du produit
- 5 ×10/100/1000 Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for all PoE ports
- Up to 250m (820ft) data and power transmitting range under Extend Mode
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play. No configuration or central management required.
- Gigabit Ethernet port for ultra-fast network speeds
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Quickly and easily set up a wired network with 5 networking ports
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
Spécifications techniques
| Management & Protocols | |
| Manageable | No |
| Technical Information | |
| Features | Fanless |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 5 |
| Port/Expansion Slot Details | 5 × 10/100/1000BASE-T RJ45 Network Ports |
| Network & Communication | |
| Networking Standards | IEEE 802.3at |
| IEEE 802.3x | |
| IEEE 802.1p | |
| IEEE 802.3af | |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T |
| Maximum Data Transfer Rate | 125 MB/s |
| Ethernet Technology | Gigabit Ethernet |
| Fast Ethernet | |
| Media Type Supported | Twisted Pair |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Desktop | |
| Height | 1" (25.40 mm) |
| Width | 3.90" (99.06 mm) |
| Depth | 3.90" (99.06 mm) |
| Power Description | |
| Input Voltage | 53.5 V DC |
| Power Source | Power Adapter |
| Frequency | 60 Hz |
| 50 Hz | |
| Power Consumption | 74.54 W |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 65 W |
| General Information | |
| Product Type | Ethernet Switch |
| Manufacturer Part Number | DS105GP |
| Manufacturer Website Address | http://www.tp-link.com |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Model | DS105GP |

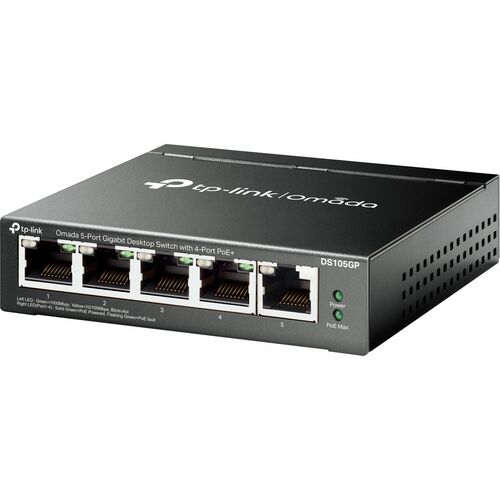

| Product Name | Omada DS105GP 5-Ports Unmanaged Ethernet Switch |
| Product Line | Omada |
| Brand Name | TP-Link |
