À propos du produit

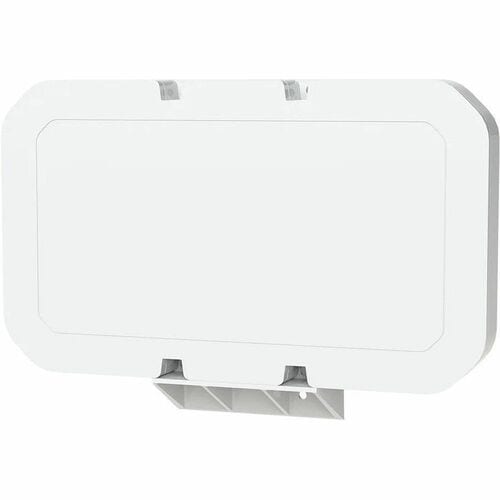

4x4 MiMo 4G/5G antenna solution Wall, mast or desk mount Optional GPS/GNSS - 26dB LNA Integrated coaxial cablesThe DWMM4[G]-6-60 antenna provides 4x4 MiMo solution for global 4G/5G networks from 617-6000MHz. Incorporating four separately fed ultra wideband elements in a single housing the DWMM4[G] is suitable for a huge range of fixed site and failover applications.The supplied mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast mounting using the supplied clamps
The antenna can also be mounted with screws directly to non-conductive panels or internal walls or stood on a desk using supplied mounting feet.The omni-directional radiation pattern allows easy placement of the antenna without requiring directional alignment.The DWMM4G type is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise.The antenna is fitted with integrated flame retardant CS32 cable (FR CS29 for GPS/GNSS) which minimises exposed connector joints and simplifies cable management for easy installation.Provides ease of management and installation thanks to its omni-direction featureAntenna can be mounted as desk mountProvides gain of up to 26 dBThis antenna provides enhanced signals for your gps
Spécifications techniques
| Interfaces/Ports | |
| Connector Type | SMA |
| Miscellaneous | |
| Application/Usage | Indoor |
| Cellular Network | |
| Outdoor | |
| GPS | |
| General Information | |
| Product Type | Antenna |
| Manufacturer Part Number | DWMM466005NJ |
| Manufacturer Website Address | http://www.panorama-antennas.com |
| Manufacturer | Panorama Antennas Ltd |
| Product Name | 4x MiMo 4G/5G Antenna |
| Brand Name | Panorama Antennas |
| Technical Information | |
| Antenna Gain | 26 dB |
| Directivity | Omni-directional |
| Voltage Standing Wave Ratio (VSWR) | <2.5:1 |
| Operating Frequency Range | 617MHz to 960MHz |
| 1427MHz to 6000MHz | |
| Antenna Gain (Isotropic) | 7 dBi |
| Physical Characteristics | |
| Form Factor | Desk Mount |
| Mast/Wall/Railing | |
| Panel | |
| Height | 8.70" (221 mm) |
| Depth | 1.57" (40 mm) |
| Product Color | White |
| Color Family | White |
