À propos du produit

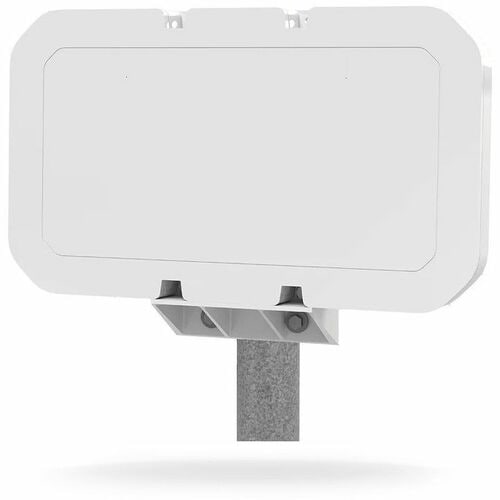

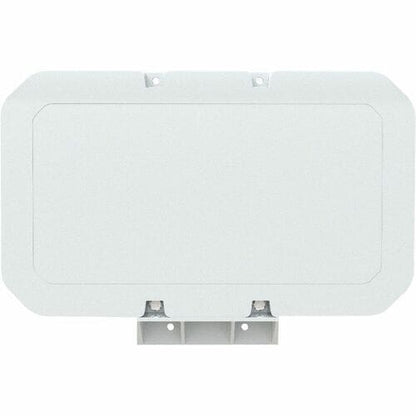

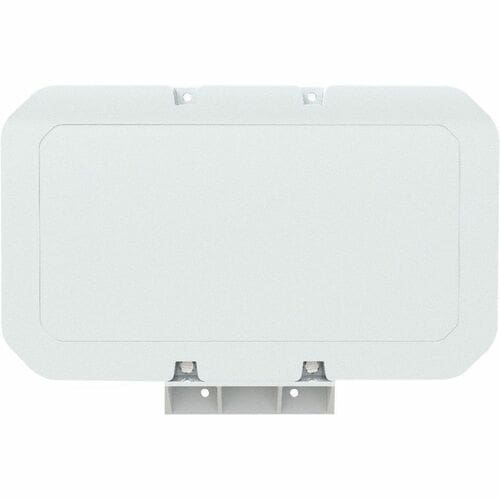

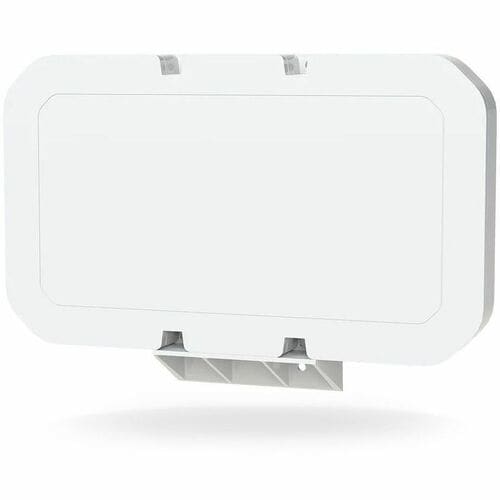

The DWMM4[G]-6-60 Antenna Provides a 4×4 MiMo Solution for Global 4G/5G Networks from 617-6000MHz.Incorporating four separately fed ultra wideband elements in a single housing the DWMM4[G] is suitable for a huge range of fixed site and failover applications. The supplied mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast mounting using the supplied clamps

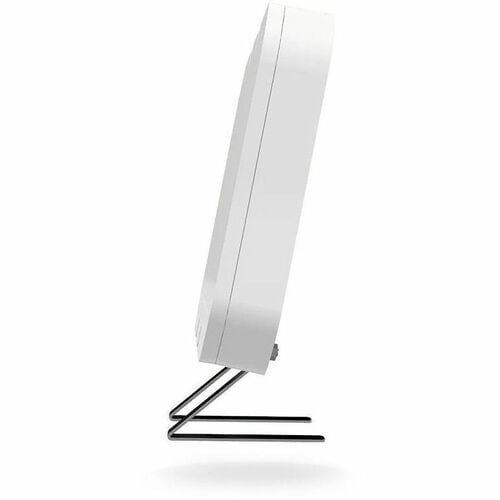

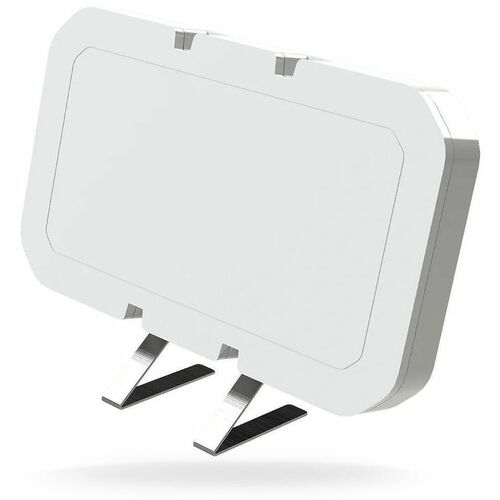

The antenna can also be mounted with screws directly to non-conductive panels or internal walls or stood on a desk using supplied mounting feet. The omnidirectional radiation pattern allows easy placement of the antenna without requiring directional alignment. The DWMM4G type is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise.The antenna is fitted with an integrated flame retardant CS32 cable (FR CS29 for GPS/GNSS) which minimises exposed connector joints and simplifies cable management for easy installation.Eases up the installation procedure thanks to its 360-degree horizontal patternMountable to poles for easy installationOperates at 26 dB gainDue to its broader casting range, it provides improved cellular network signals
Spécifications techniques
| Interfaces/Ports | |
| Connector Type | FAKRA |
| FAKRA D | |
| Miscellaneous | |
| Application/Usage | Cellular Network |
| Environmentally Friendly | Yes |
| Technical Information | |
| Antenna Gain | 26 dB |
| Directivity | Omni-directional |
| Voltage Standing Wave Ratio (VSWR) | <2.5:1 |
| Operating Frequency Range | 600 MHz to 6000 MHz |
| Antenna Gain (Isotropic) | 7 dBi |
| General Information | |
| Product Type | Antenna |
| Manufacturer Part Number | DWMM46605FKJ |
| Manufacturer Website Address | http://www.panorama-antennas.com |
| Manufacturer | Panorama Antennas Ltd |
| Product Name | DWMM4[G]-6-60 | 4×4 MiMo 4G/5G Antenna |
| Product Series | DWMM4[G]-6-60 |
| Brand Name | Panorama Antennas |
| Physical Characteristics | |
| Form Factor | Desk Mount |
| Mast | |
| Pole | |
| Wall Mount | |
| Height | 8.70" (221 mm) |
| Width | 1.57" (40 mm) |
| Product Color | White |
| Color Family | White |
