À propos du produit

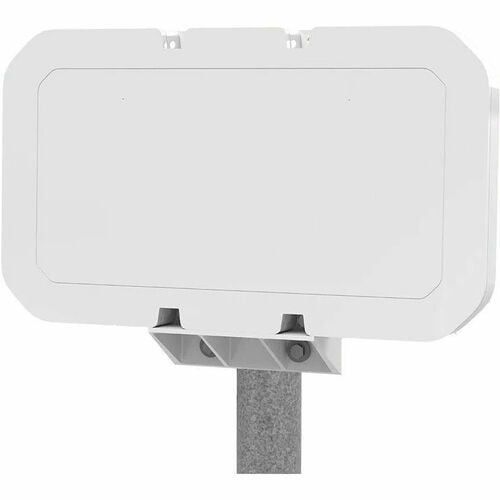

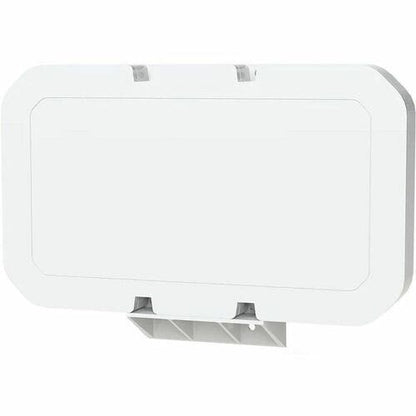

The DWMM4[G]-6-60 | Hammerhead Antenna Provides a 4×4 MiMo Solution for Global 4G/5G Networks from 617-6000MHz. Incorporating four separately fed ultra wideband elements in a single housing the DWMM4[G] is suitable for a huge range of fixed site and failover applications. The supplied mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast mounting using the supplied clamps

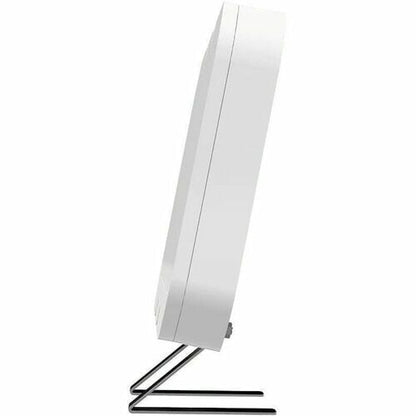

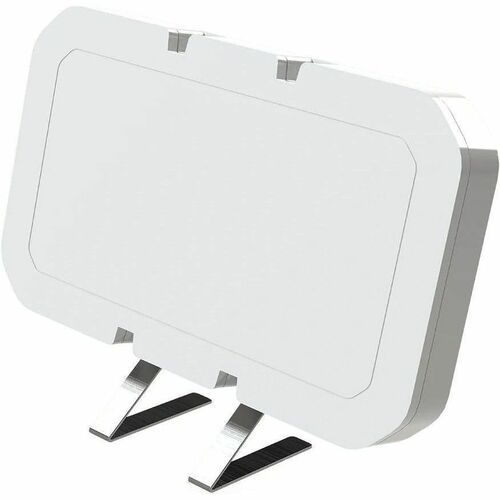

The antenna can also be mounted with screws directly to non-conductive panels or internal walls or stood on a desk using supplied mounting feet. The omnidirectional radiation pattern allows easy placement of the antenna without requiring directional alignment. The DWMM4G type is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise. The antenna is fitted with an integrated flame retardant CS32 cable (FR CS29 for GPS/GNSS) which minimises exposed connector joints and simplifies cable management for easy installation.Antenna can be mounted as desktop/wall/mastOperates at 26 dB gainGet enhanced signals for your cellular network with this antenna
Spécifications techniques
| Interfaces/Ports | |
| Connector Type | SMA |
| Miscellaneous | |
| Application/Usage | Outdoor |
| Indoor | |
| Cellular Network | |
| Package Contents |
|
| Physical Characteristics | |
| Form Factor | Desktop/Wall/Mast |
| Height | 8.70" (221 mm) |
| Width | 1.57" (40 mm) |
| Depth | 14.61" (371 mm) |
| Product Color | White |
| Technical Information | |
| Antenna Gain | 26 dB |
| Directivity | Omni-directional |
| Voltage Standing Wave Ratio (VSWR) | <2.5:1 |
| Operating Frequency Range | 1427MHz - 6000MHz |
| 617MHz - 960MHz | |
| Antenna Gain (Isotropic) | 7 dBi |
| General Information | |
| Product Type | Antenna |
| Manufacturer Part Number | DWMM46605NP |
| Manufacturer Website Address | http://www.panorama-antennas.com |
| Manufacturer | Panorama Antennas Ltd |
| Product Name | DWMM4[G]-6-60 Antenna |
| Product Series | DWMM4[G]-6-60 |
| Brand Name | Panorama Antennas |
