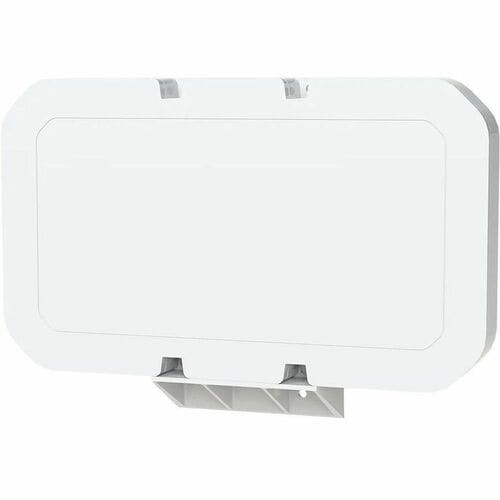

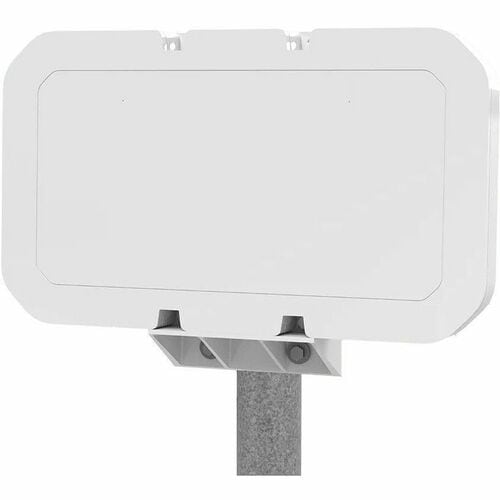

4x4 MiMo 4G/5G antenna solution Wall, mast or desk mount Optional GPS/GNSS - 26dB LNA Integrated coaxial cablesThe DWMM4[G]-6-60 antenna provides 4x4 MiMo solution for global 4G/5G networks from 617-6000MHz. Incorporating four separately fed ultra wideband elements in a single housing the DWMM4[G] is suitable for a huge range of fixed site and failover applications.The supplied mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast mounting using the supplied clamps

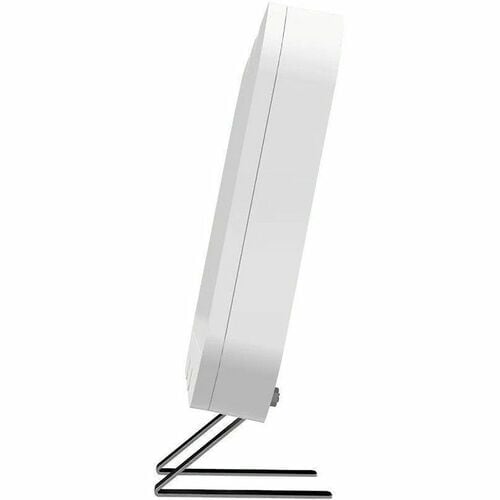

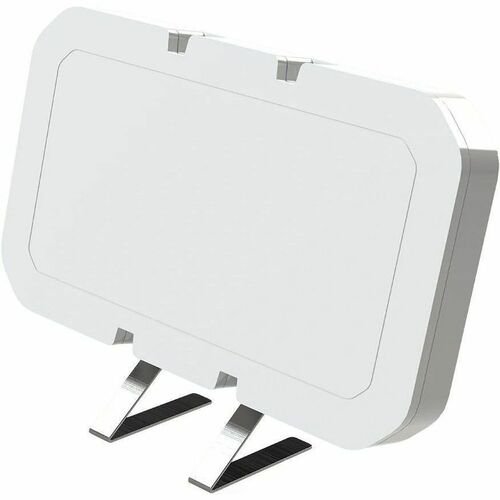

The antenna can also be mounted with screws directly to non-conductive panels or internal walls or stood on a desk using supplied mounting feet.The omni-directional radiation pattern allows easy placement of the antenna without requiring directional alignment.The DWMM4G type is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise.The antenna is fitted with integrated flame retardant CS32 cable (FR CS29 for GPS/GNSS) which minimises exposed connector joints and simplifies cable management for easy installation.Eases up the installation procedure thanks to its 360-degree horizontal patternCan be mounted as desk mountThis antenna is an excellent choice for gps
Spécifications techniques
| Interfaces/Ports | |
| Connector Type | SMA |
| Miscellaneous | |
| Application/Usage | Cellular Network |
| GPS | |
| Router | |
| Technical Information | |
| Directivity | Omni-directional |
| Voltage Standing Wave Ratio (VSWR) | <2.5:1 |
| Operating Frequency Range | 1427MHz to 6000MHz |
| 617MHz to 960MHz | |
| Antenna Gain (Isotropic) | 7 dBi |
| General Information | |
| Product Type | Antenna |
| Manufacturer Part Number | DWMM46605SP |
| Manufacturer Website Address | http://www.panorama-antennas.com |
| Manufacturer | Panorama Antennas Ltd |
| Product Name | 4x MiMo 4G/5G Antenna |
| Brand Name | Panorama Antennas |
| Physical Characteristics | |
| Form Factor | Mast/Wall/Railing |
| Panel | |
| Desk Mount | |
| Height | 8.70" (221 mm) |
| Width | 1.57" (40 mm) |
| Product Color | White |
