À propos du produit
Overview
The VESA-compliant DWT3780XUL Heavy-Duty Tilt Wall Mount allows you to mount your flat-panel or curved-screen television, monitor or other display on the wall. Recommended for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most displays from 37 to 80 inches.
A -10° to 0° tilt capability minimizes glare and provides comfortable viewing from multiple angles. Adjusting the tilt angle is simple using the easy-grip twin knobs located on the wall plate.
The mount is concealed behind the display to give a sleek, professional appearance. An open back enables easy access to cabling. Built-in bubble level allows accurate wall plate leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 165 pounds. Mounting hardware included.
Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm.
This mount has been tested in accordance with UL Standard 2442.
Features
Mounts Your TV or Monitor to the Wall
- Fits most flat-panel or curved-screen televisions, monitors and other displays from 37 to 80 in.
- Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants
- Mounts out of sight behind display for sleek, professional appearance

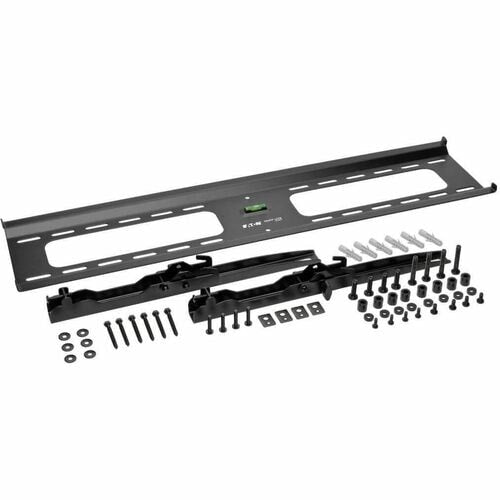

- Mounting hardware included
Convenient Angle Adjustment
- -10° to 0° tilt capability provides comfortable viewing from multiple angles
- Improves viewing angles in applications where audience is below the display
- Easy-grip knobs allow simple adjustment of tilt angle
Durable Metal Construction
- Supports up to 165 lb.
- Open architecture enables easy access to cabling
- Built-in bubble level for accurate display leveling
- Scratch-resistant powder-coated finish
- Tested in accordance with UL Standard 2442
- Compatible with the screen size of 80"
- Supports 80" displays
- Supports the screen size of 80" (2032 mm)
- Can withstand a maximum weight of 165 lb (74842.74 g)
- Sustains a maximum load capacity of 165 lb (74842.74 g)
Spécifications techniques
| Product Information | |
| Device Supported | Monitor |
| Maximum Load Capacity | 165 lb (74842.74 g) |
| Maximum Screen Size Supported | 80" |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | Wall Mount |
| Manufacturer Part Number | DWT3780XUL |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | DWT3780XUL |
| Product Name | DWT3780XUL Wall Mount |
| Brand Name | Tripp Lite by Eaton |
| Physical Characteristics | |
| Weight (Approximate) | 7.89 lb (3580 g) |
| Height | 33.50" (851 mm) |
| Width | 1.81" (46 mm) |
| Depth | 7.99" (203 mm) |
| Mounting Pattern | 600 x 400 |
| 400 x 400 | |
| 400 x 200 | |
| 300 x 300 | |
| 800 x 400 | |
| 200 x 200 | |
| Product Color | Black |
| Color Family | Black |
