À propos du produit

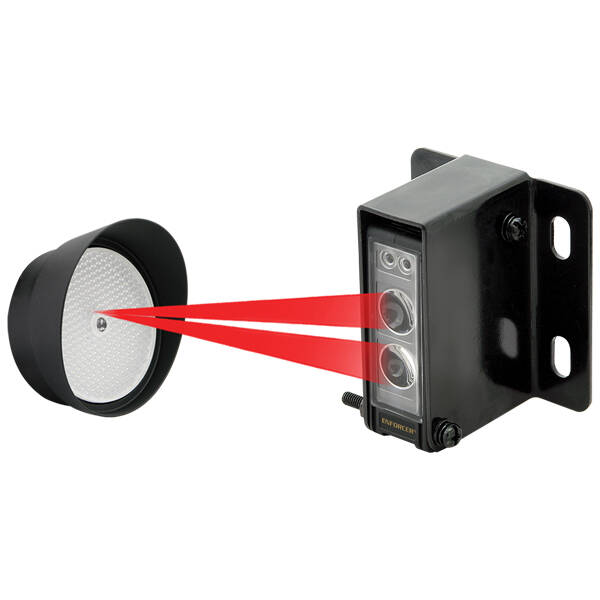

The Seco-Larm Wired 45’ Reflective Photoelectric Beam Sensor is an indoor/outdoor IP66 waterproof photo beam sensor for garage doors, outdoor gates, overhead doors, and more. Pre-wired 6 foot cord with a wide range of electrical inputs (12-250VAC/VDC) allows for a wide variety of usages—from home-security and automation, to assembly line counting and industrial automation, to storefront alarming, and more.
Adjustable sensing distance (up to 45’) and response time (5-100ms) ensures precision detection for any application. Package includes 3-inch round reflector and hood, beam receiver, two sensor mounting brackets and mounting hardware.
E-931-S45RRQ Specs and Features
- Indoor/outdoor usage
- Type: NIR Reflective
- Current Draw: Standby- 70mA@12VDC, Active- 55mA@12VDC
- Sensing Range: 0.5 to 45’ (0.1 – 14m)
- Operating Voltage: 12-250 VAC / VDC
- Reaction time: 5ms-100ms adjustable
- Light Source: IR LED
- LEDs – Red: Trigger
- LEDs – Yellow: Alignment
- Output: SPDT Relay Output (NO/NC/COM)
- Switching Capacity: 3A@120VAC / 3A@30VDC
- Operating Temperature: -4º to 131º F (-20º to 55º C)
- Enclosure: IP66 Waterproof
Spécifications techniques
The Seco-Larm Wired 45’ Reflective Photoelectric Beam Sensor is an indoor/outdoor IP66 waterproof photo beam sensor for garage doors, outdoor gates, overhead doors, and more. Pre-wired 6 foot cord with a wide range of electrical inputs (12-250VAC/VDC) allows for a wide variety of usages—from home-security and automation, to assembly line counting and industrial automation, to storefront alarming, and more.
Adjustable sensing distance (up to 45’) and response time (5-100ms) ensures precision detection for any application. Package includes 3-inch round reflector and hood, beam receiver, two sensor mounting brackets and mounting hardware.
E-931-S45RRQ Specs and Features
- Indoor/outdoor usage
- Type: NIR Reflective
- Current Draw: Standby- 70mA@12VDC, Active- 55mA@12VDC
- Sensing Range: 0.5 to 45’ (0.1 – 14m)
- Operating Voltage: 12-250 VAC / VDC
- Reaction time: 5ms-100ms adjustable
- Light Source: IR LED
- LEDs – Red: Trigger
- LEDs – Yellow: Alignment
- Output: SPDT Relay Output (NO/NC/COM)
- Switching Capacity: 3A@120VAC / 3A@30VDC
- Operating Temperature: -4º to 131º F (-20º to 55º C)
- Enclosure: IP66 Waterproof
