À propos du produit

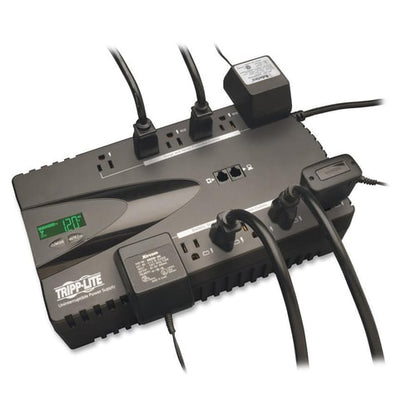

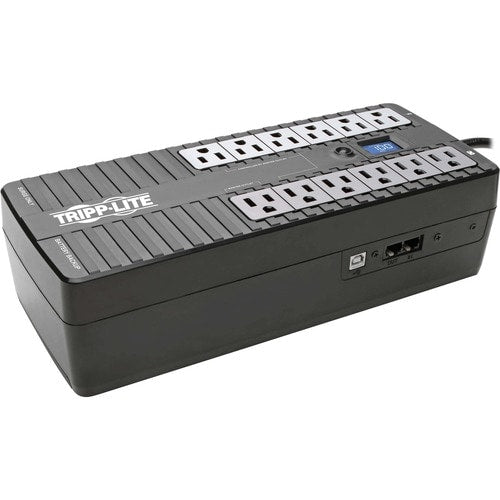

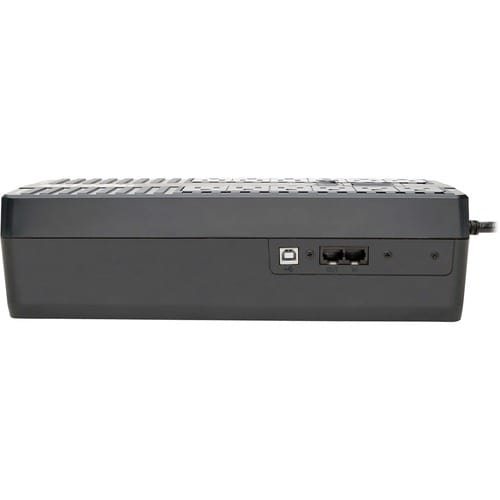

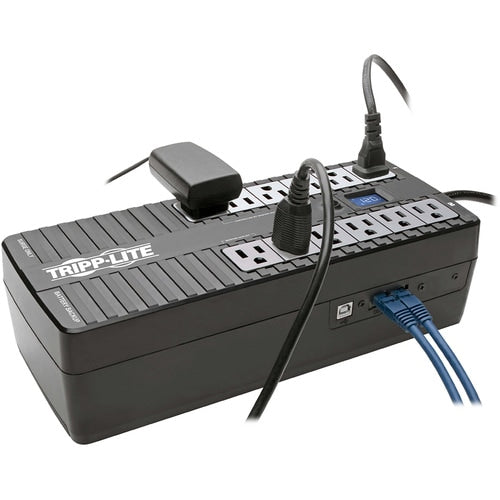

Ultra-compact, green UPS system is the ideal green solution for complete protection against blackouts, brownouts and power surges. Its 850VA/425-watt power handling capacity supports entry-level PC systems for up to 45 minutes during blackouts. With a power efficiency rating of 99 percent, this UPS offers energy savings plus cooler operation by limiting UPS power consumption. Interactive LCD screen displays operating conditions and lets you change settings. Design also features six battery-supported outlets for computer and peripherals plus six surge suppression-only outlets for accessories not requiring battery support. Four of the surge-only outlets are ECO outlets that can be configured to automatically power off unused computer accessories. Built-in, single-line, tel/DSL (RJ11) jacks protect a modem, fax machine or phone. One USB port (USB cable included) plus free PowerAlert software enables unattended system shutdown without data loss in the case of an extended power failure.
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown

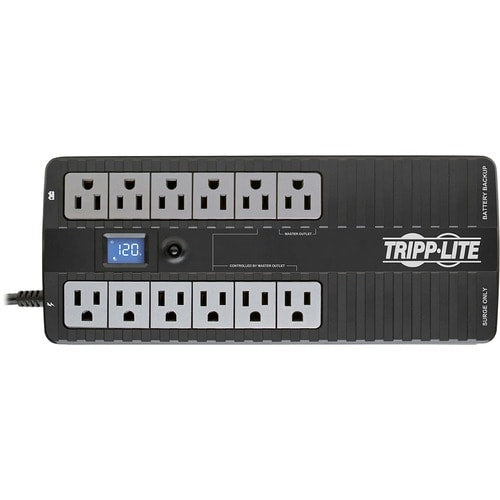

- 12 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment

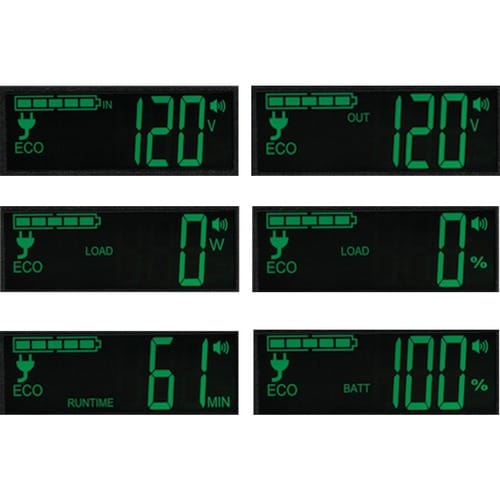

- Touchscreen LCD displays important voltage, load and battery data in real time
- ENERGY STAR-certified to save electricity, lower costs, and protect the environment
- 3-year limited warranty
- $100,000 Ultimate Lifetime Insurance
Spécifications techniques
| Controls/Indicators | |
| Status Indicators | Touchscreen LCD reports operating mode, input/output voltage, input/output frequency and load capacity |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Warranty | |
| Additional Warranty Information | 3 year warranty. $100,000 connected equipment insurance (USA, Puerto Rico, & Canada Only). |
| Interfaces/Ports | |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| Backup/Run Time (Half Load) | 9 Minute |
| Backup/Run Time (Full Load) | 2.30 Minute |
| Replaceable Battery | Yes |
| DC System Voltage | 12 V DC |
| Typical Battery Recharge Time | 8 Hour |
| Management | |
| Alarm | Replace Battery |
| Overload | |
| Low Battery | |
| Fault | |
| Battery Backup | |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | UL Listed Certification |
| Country of Origin | Vietnam |
| Recycled | No |
| Assembly Required | No |
| Energy Star | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 6.81 lb (3090 g) |

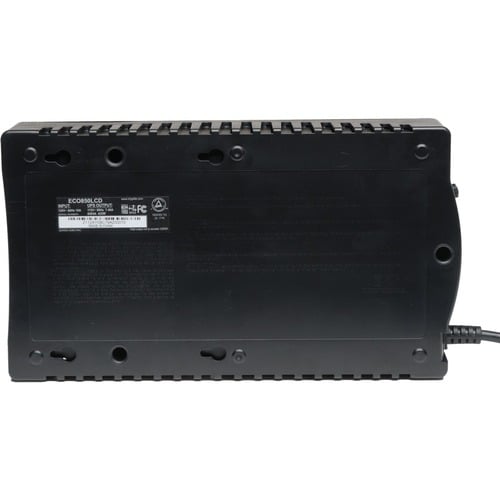

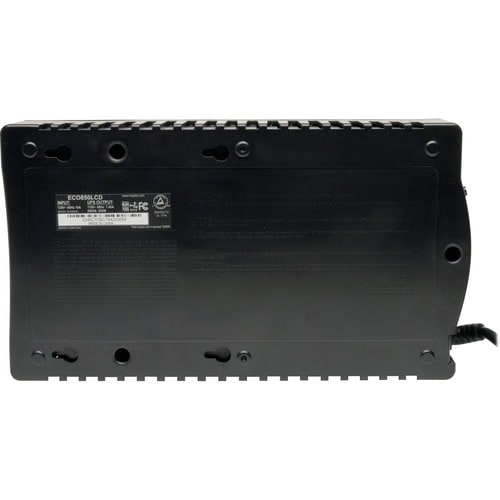

| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Height | 3.50" (88.90 mm) |
| Width | 5.12" (130.05 mm) |
| Depth | 12.20" (309.88 mm) |
| Product Color | Black |
| Color Family | Black |
| General Information | |
| Product Type | Standby UPS |
| Manufacturer Part Number | ECO850LCD |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Packaged Quantity | 1 Each |
| Manufacturer | Eaton Corporation |
| Product Model | ECO850LCD |
| Product Name | 850VA Ultra-compact Green LCD UPS Systm |
| Product Series | ECO |
| Brand Name | Tripp Lite by Eaton |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| 115 V AC | |
| 110 V AC | |
| Input Current | 10 A |
| Surge Energy Rating | 316 J |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Output Frequency | 60 Hz |
| Input Frequency | 60 Hz |
| Load Capacity (VA) | 850 VA |
| Load Capacity (Watt) | 425 W |
| Technical Information | |
| Application/Usage | Digital Signage |
| Desktop Computer | |
| Blu-ray Player | |
| ATM | |
| TV | |
| Security System | |
| Router | |
| Printer | |
| Media Center | |
| Kiosk | |
| Home/Office | |
| Gaming Console | |
| Home Theater | |
| Dataline Protection | RJ-11 |
| Protection Type | Surge |
| Black Out | |
| Plug/Connector Type | NEMA 5-15P |
| Phase | Single Phase |
| Receptacle Type | NEMA 5-15R |
| EMI/RFI Noise Filter | Yes |
| Number of Battery & Surge Outlets | 6 |
| Number of Surge-only Outlets | 6 |
| Transfer Time | 6 ms |
| Receptacle Detail | 12 x NEMA 5-15R |
