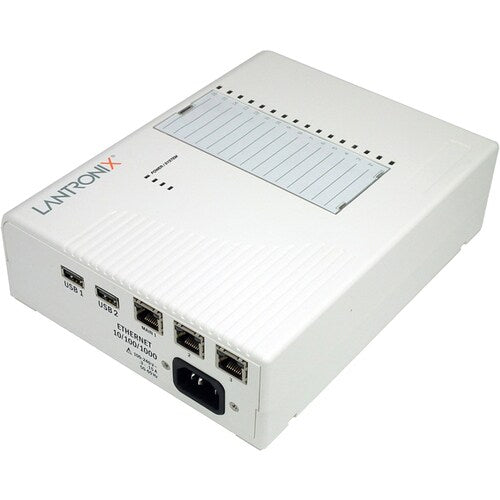

Next Generation Multi-Port Medical Device Server
Specifically designed for the medical industry, the UL and IEC-60601 compliant EDS-MDTM provides mission-critical device connectivity, allowing remote access and management of virtually any electronic or medical device.
EDS-MD boasts 4, 8 or 16 individually isolated RS-232 serial ports with a Gigabit (10/100/1000Mpbs) network interface. Going above and beyond the IEC-60601 requirement, EDS-MD provides galvanic isolation on all ports to ensure the highest levels of safety. If a grounding problem occurs, the operation of EDS-MD or other connected devices will not be affected.
Spécifications techniques
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Memory | |
| Standard Memory | 256 MB |
| Processor & Chipset | |
| Processor Speed | 600 MHz |
| Network & Communication | |
| Network Standard | 10/100/1000Base-T |
| Ethernet Technology | Gigabit Ethernet |
| Wireless Specifications | |
| Wireless LAN | No |
| ISM Band | No |
| UNII Band | No |
| Physical Characteristics | |
| Weight (Approximate) | 1.80 lb (816.47 g) |
| Form Factor | Desktop |
| Height | 2.40" (60.96 mm) |
| Width | 7.50" (190.50 mm) |
| Depth | 8.30" (210.82 mm) |
| General Information | |
| Product Type | Device Server |
| Manufacturer Part Number | EDSOR08P-01 |
| Manufacturer Website Address | http://www.lantronix.com |
| Manufacturer | Lantronix, Inc |
| Product Model | EDS-MD |
| Product Name | EDS-MD 8-Port Medical Device Server |
| Brand Name | Lantronix |
| Interfaces/Ports | |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 2 |
| Serial Port | Yes |
| Parallel Port | No |
| Network (RJ-11) | No |
| Phone Line (RJ-11) | No |
| Number of Serial Ports | 8 |
| PoE (RJ-45) Port | No |
| Centronics Port | No |
