À propos du produit

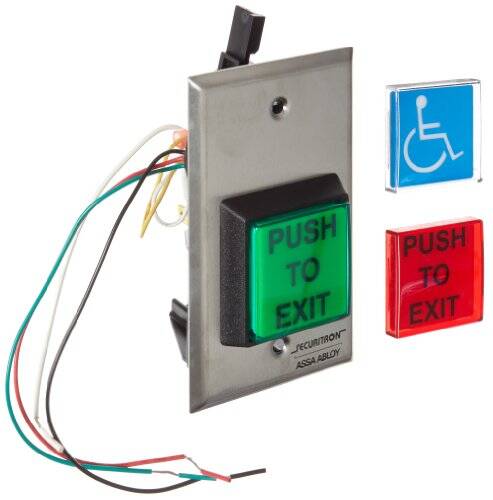

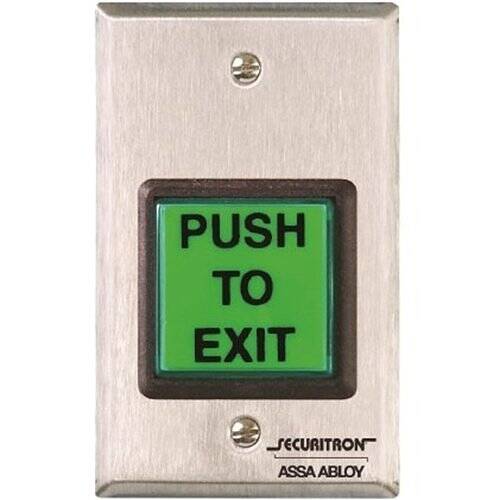

The Securitron Momentary SPDT Green/Red/Blue/Handicap timer with 30 second interval is a simple, customizable access control switch that mounts in a single-gang box. Re-triggerable pushbutton single-pole throw and normally-closed circuit allow temporary energizing of a strike or door controller for accessibility compliance or for high-traffic or monitored exits that require a request to exit; or as a backup access control option if other sensors (ie. motion sensors) are not functioning.
For indoor use only. Includes optional green, red, or blue button options, as well as a handicap option for accessible doors and exits. Meets NFPA Life Safety Code 101 requirements for access controlled egress doors.
EEB2 Specs and Features
- 12/24VDC SPDT, NC circuit (226 mA peak at 12VDC, 118 mA peak at 24VDC)
- Re-triggerable 30 second energization interval (non-adjustable)
- Single-gang box installation
- Dimensions (H x W x D): 4.5’’ x 2.8’’ x 3’’
- Operating temperature: 0°C - 43°C (32°F – 109.4 °F)
- Weight: 191 g
- Stainless steel construction
- Includes alternate button options to meet a variety of installation requirements
- ANSI/UL 294 Listed
- CSA-C22.2 No.205 Listed
- CSFM—California State Fire Marshal
Spécifications techniques
The Securitron Momentary SPDT Green/Red/Blue/Handicap timer with 30 second interval is a simple, customizable access control switch that mounts in a single-gang box. Re-triggerable pushbutton single-pole throw and normally-closed circuit allow temporary energizing of a strike or door controller for accessibility compliance or for high-traffic or monitored exits that require a request to exit; or as a backup access control option if other sensors (ie. motion sensors) are not functioning.
For indoor use only. Includes optional green, red, or blue button options, as well as a handicap option for accessible doors and exits. Meets NFPA Life Safety Code 101 requirements for access controlled egress doors.
EEB2 Specs and Features
- 12/24VDC SPDT, NC circuit (226 mA peak at 12VDC, 118 mA peak at 24VDC)
- Re-triggerable 30 second energization interval (non-adjustable)
- Single-gang box installation
- Dimensions (H x W x D): 4.5’’ x 2.8’’ x 3’’
- Operating temperature: 0°C - 43°C (32°F – 109.4 °F)
- Weight: 191 g
- Stainless steel construction
- Includes alternate button options to meet a variety of installation requirements
- ANSI/UL 294 Listed
- CSA-C22.2 No.205 Listed
- CSFM—California State Fire Marshal
