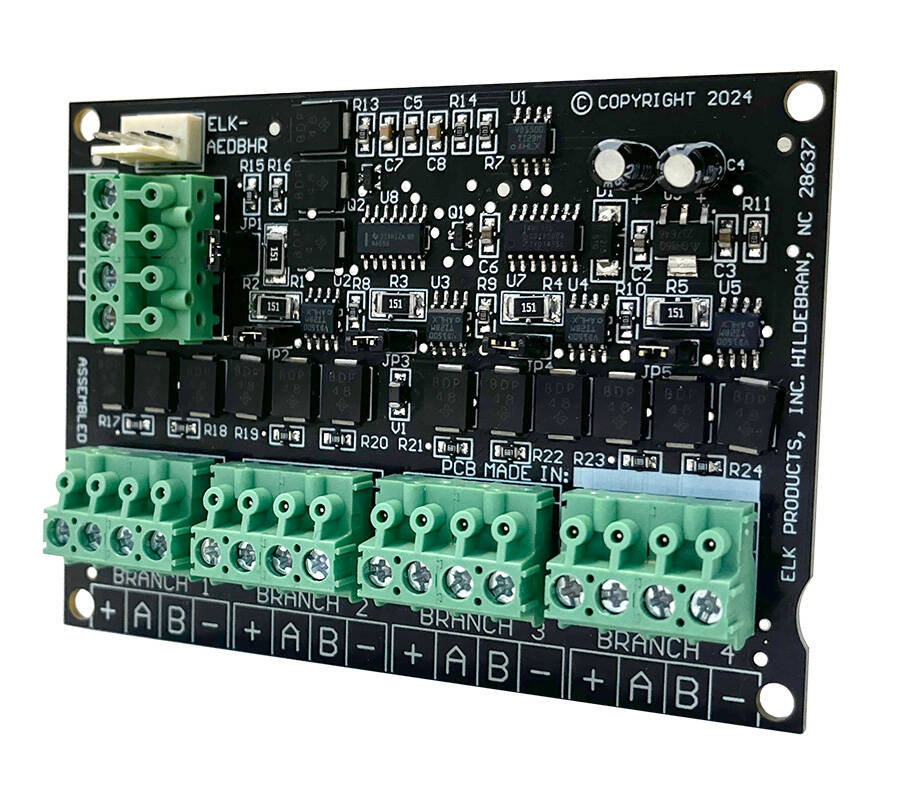

The ELK-AEDBHR splits the Elk Alarm Engine RS-485 data bus output into 4 managed branches for retrofit installs where an older existing panel being replaced by an Alarm Engine Control has multiple homerun 4 conductor keypad/data wires available. Each branch of the “active” RS-485 data bus can have 2 additional parallel home run cables for a total of 8 available home runs—expanding the available hardware options for antiquated systems—additionally, terminating jumpers at the end of each branch ensure proper operation and supervision of end-of-line devices with minimal electrical interference or risk of equipment damage.
Package includes mounting glides for ELK-SWB boxes. Works with standard 4 conductor home run wire off existing retrofit panels. Removeable terminal blocks with 4 position elevator screw terminals allow for simplified wiring outside of the enclosure. Maximum two AEDBHR hubs per Alarm Engine Control, hubs cannot be branch connected, used as an extender or remote repeater. Cannot be used remotely, mounts only within the Alarm Engine main enclosure. Compatible only with ELK Alarm Engine Control systems.
ELKAEDBHR Specs and Features
- Splits Alarm Engine RS-485 data bus output into 4 managed branches and up to 8 home run cables (2 per branch)
- Works with standard 4 conductor home run wire
- Mounts inside the Alarm Engine enclosure using provided ELK-SWG circuit board glides
- Maximum branch wire length: 4000’
- Max total power draw (not including data bus devices): ~110mA (all 4 branches)
- If total current draw exceeds the limits of the control, add an auxiliary 12VDC power supply
- Do NOT exceed 2 terminating jumpers on any of the 4 branches of the AEDBHR or the Alarm Engine bus
- Min. wire gauge: 24AWG
- Long-distance wire gauge: 18 – 22AWG
- Circuit Board Dimensions: 4’’ x 2.75’’
- Package includes: Alarm Engine Retrofit Data Bus Hub, SWG Circuit Board Glides, Instruction Manual
- Compatible only with Elk Alarm Engine Control systems
Spécifications techniques
The ELK-AEDBHR splits the Elk Alarm Engine RS-485 data bus output into 4 managed branches for retrofit installs where an older existing panel being replaced by an Alarm Engine Control has multiple homerun 4 conductor keypad/data wires available. Each branch of the “active” RS-485 data bus can have 2 additional parallel home run cables for a total of 8 available home runs—expanding the available hardware options for antiquated systems—additionally, terminating jumpers at the end of each branch ensure proper operation and supervision of end-of-line devices with minimal electrical interference or risk of equipment damage.
Package includes mounting glides for ELK-SWB boxes. Works with standard 4 conductor home run wire off existing retrofit panels. Removeable terminal blocks with 4 position elevator screw terminals allow for simplified wiring outside of the enclosure. Maximum two AEDBHR hubs per Alarm Engine Control, hubs cannot be branch connected, used as an extender or remote repeater. Cannot be used remotely, mounts only within the Alarm Engine main enclosure. Compatible only with ELK Alarm Engine Control systems.
ELKAEDBHR Specs and Features
- Splits Alarm Engine RS-485 data bus output into 4 managed branches and up to 8 home run cables (2 per branch)
- Works with standard 4 conductor home run wire
- Mounts inside the Alarm Engine enclosure using provided ELK-SWG circuit board glides
- Maximum branch wire length: 4000’
- Max total power draw (not including data bus devices): ~110mA (all 4 branches)
- If total current draw exceeds the limits of the control, add an auxiliary 12VDC power supply
- Do NOT exceed 2 terminating jumpers on any of the 4 branches of the AEDBHR or the Alarm Engine bus
- Min. wire gauge: 24AWG
- Long-distance wire gauge: 18 – 22AWG
- Circuit Board Dimensions: 4’’ x 2.75’’
- Package includes: Alarm Engine Retrofit Data Bus Hub, SWG Circuit Board Glides, Instruction Manual
- Compatible only with Elk Alarm Engine Control systems
