À propos du produit

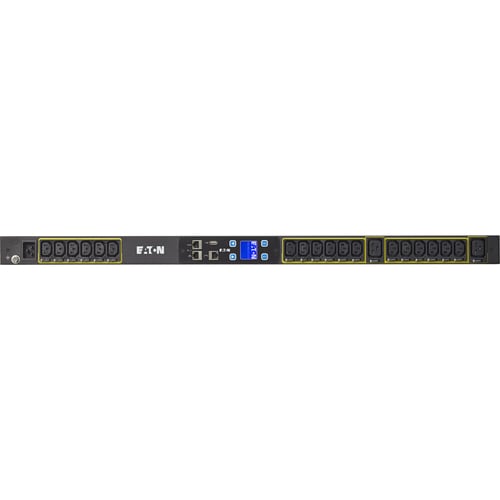

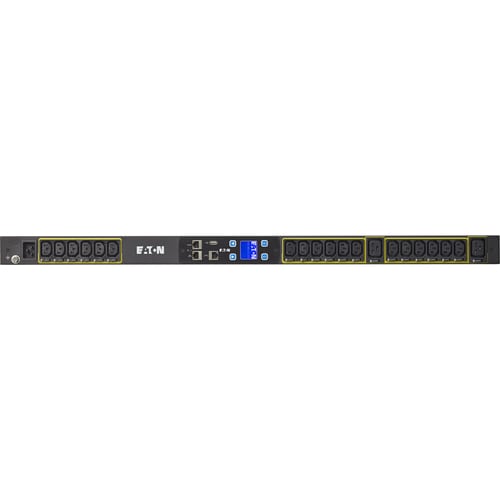

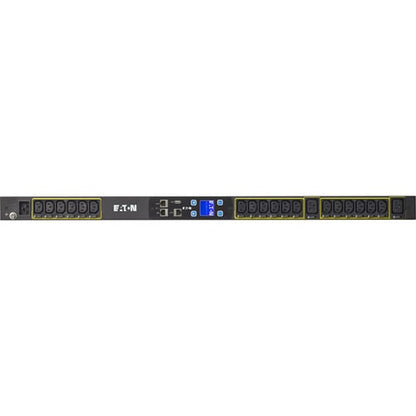

Eaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.
- IEC outlet grip plug retention secures plugs in place using standard cables
- Advanced LCD pixel display for local display of current, voltage, power, energy and menu setup of parameters such as IP address or display rotation
- High operating temperature (140F / 60C) for containment or hot network closet environments
- Hot-swap meter for servicability of without removing power to the rack
- +/- 1% billing grade accuracy for high accuracy reporting of energy usage
- Daisy chain of IP addresses allows four devices to share one network connection
Spécifications techniques
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | China |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Technical Information | |
| Plug/Connector Type | IEC 60320 C20 |
| Receptacle Type | IEC 60320 C13 |
| IEC 60320 C19 | |
| Receptacle Detail | 2 x IEC 60320 C19 |
| 18 x IEC 60320 C13 | |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Input Current | 16 A |
| Input Voltage Range | 120 V AC - 208 V AC |
| Power Rating (Watt) | 3.84 kW |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | EMI103-10 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Name | ePDU 20-Outlets PDU |
| Product Line | ePDU |
| Brand Name | Eaton |
| Physical Characteristics | |
| Weight (Approximate) | 9.30 lb (4218.41 g) |
| Mount Type | Rack-mountable |
| Rack Height | 21U |
| Cord Length | 10 ft (3.05 m) |
| Height | 35.50" (901.70 mm) |
| Width | 2.05" (52.07 mm) |
| Depth | 2.10" (53.34 mm) |
