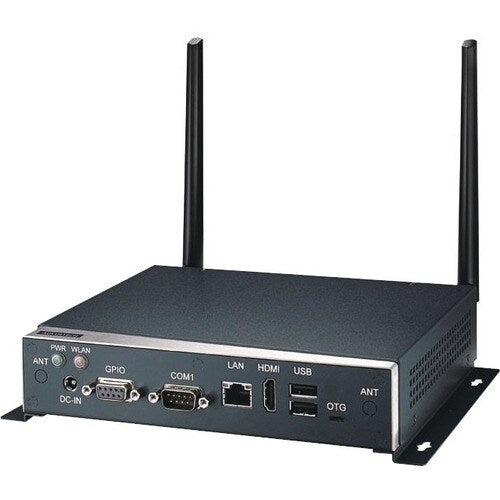

Introduction \n\nEPC-R4760 is an ARM based Box Computer powered by Qualcomm ARM® Cortex®-A53 APQ8016 processor that supports full HD display and intergrades on board wireless solution - Wi-Fi, BT and GPS. EPC-R4760 also features in mini PCIe, M.2, and SIM card slots for expanding connectivity capability, like 3G, 4G/LTE modules
Equipped with complete Android, Linux and Win10 IoT core BSPs, this box computer enables customers to easily develop unique application on specific OS.Qualcomm ARM® Cortex®-A53 APQ8016 Quad core up to 1.2 GHzOnboard 1GB/2GB LPDDR3 memory and 8GB eMMC1 HDMI, 1 RS-232/422/485, 1 GbE, 4 USB 2.0, 8 GPIOHighly intergrated on-board wireless connectivity - Wi-Fi, BT, and GNSSConnevtivity expansion capability - M.2, mini-PCIeWide voltage range DC power inputSupport Android, Linux and Debian
Spécifications techniques
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Form Factor | Box PC |
| Storage | |
| Flash Memory Capacity | 8 GB |
| Chipset | |
| Chipset Manufacturer | Qualcomm |
| Chipset Model | APQ8016 |
| Memory | |
| Standard Memory | 1 GB |
| Memory Technology | LPDDR3 |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 4 |
| Number Of Ethernet Ports | 1 |
| Processor | |
| Processor Type | Cortex A53 |
| Processor Core | Quad-core (4 Core) |
| Processor Manufacturer | ARM |
| Maximum Turbo Speed | 1.20 GHz |
| Network & Communication | |
| Bluetooth | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11b/g/n |
| Ethernet Technology | Gigabit Ethernet |
| LAN Model | LAN7500 |
| General Information | |
| Product Type | Desktop Computer |
| Manufacturer Part Number | EPC-R4760CQ-QNA1E |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | EPC-R4760 |
| Product Name | Qualcomm APQ-8016 Cortex-A53 ARM Based Box Computer |
| Brand Name | Advantech |
