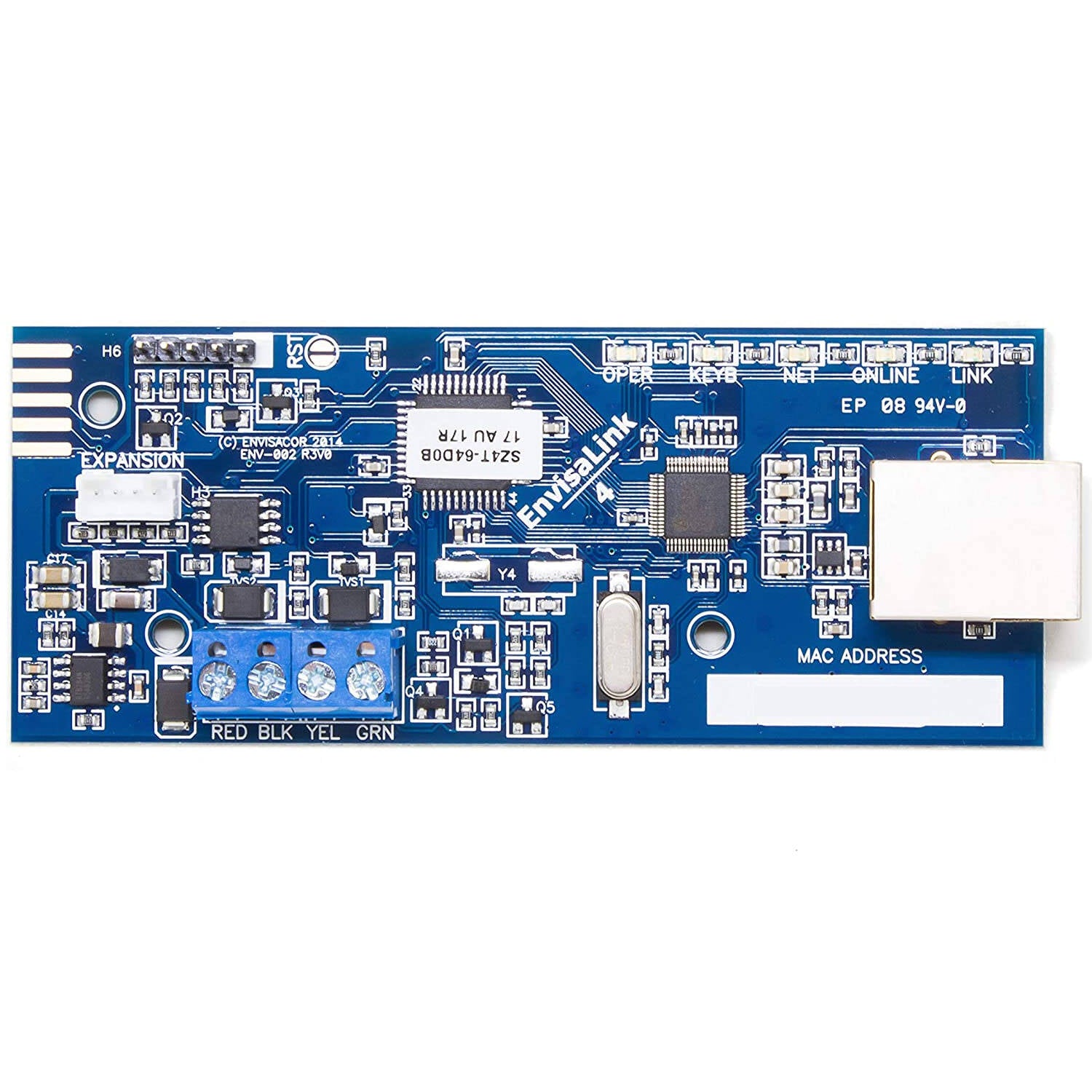

Module Internet Connect2Go Envisalink EVL4 pour DSC Powerseries, Honeywell Vista (EVL-4-CG)

The Envisalink EVL4-CG Internet module adds interactive services to DSC Powerseries or Honeywell Vista alarm systems.  It can also be used as an alarm communicator to the Connect2Go station or you can pay to unlock the module to use with your preferred station.

NEW: When combined with a UNO4 expander, the EVL4 can also be used as a universal communicator for DSC Neo and other similar systems.  In this mode it can monitor alarm status, report burg/fire (without zone details), and can arm and disarm the system.   Add up to 3 additional UNO8 modules and wire them in parallel to existing wired zones, to show zone status for up to 24 zones in the Connect2Go app.  See this knowledgebase article for details.

There are no fees to the dealer allowing you to offer interactive services at no cost to you.  Offer your customers a better experience at a low cost to increase retention.  Or use it as an upsell opportunity.

The EVL-4 can also be used to remotely program/upload to DSC Powerseries systems using DLS software, when the optional EVL-PCLINK5 cable is purchased.

Additionally, installers may choose to use the EVL-4-CG card to provide Internet based monitoring to Eyezon's station for RMR, or they may pay to unlock the card to use it with their preferred station.  Unlocking is a one time fee handled via the C2G dealer portal.

Installation is simple with no port forwarding or router set-up required.  There are no registration or monthly fees to pay and you can manage your customer's accounts for them using your own dealer portal while still allowing them to use and modify the system on their own.

The Envisalink is a perfect addition to the system whether it is professionally monitored or not as it does not interfere with the monitoring of the panel and allows the alarm owner to monitor and control the system from anywhere in the world through an Internet connected device.

The Envisalink is secure - users must enter their PIN code to disarm the system and communications are encrypted.



• Adds network and Internet control from a web browser, iPhone, Android, Blackberry or any Smartphone
• EyezOn App for Android and Apple devices
• No set-up or monthly fees
• Arm, Disarm, Check system and zone status, bypass zones, trigger PGM output (when bus connected)
• Supports e-mail and text alerts to one or multiple contacts
• Alerts can be triggered by alarm, arm/disarm, trouble
• Line-cut monitoring can notify if system does not 'check-in'
• Connects via keypad bus (wiring not included) and wired Ethernet (cable not included)
• No port forwarding or router set-up required
• Works with dynamic or static IP
• Always on Internet connection required at alarm installation premises

Bus compatible with the following panels (only):

PC1555 / PC1555 MX
PC1575
PC5010 (Power832)
PC5020 (Power864)
PC1616
PC1832
PC1864
Vista 10P
Vista 15P
Vista 20P
Vista 21iP
Vista 128p
Vista 250p
