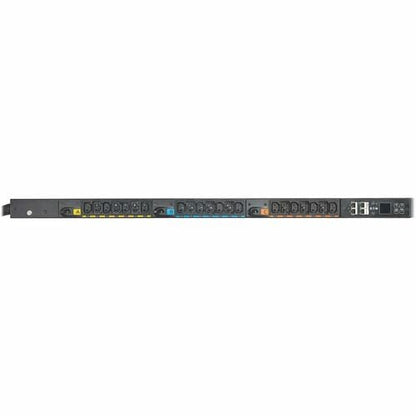

Features | Three-Phase Metered Input PDU Ideal for Data Center Managers with Large-Scale Distributed IT
The EVMIG332X Rack PDU G4 is ideal for streamlining PDU procurement and deployment within a 39U rack in an enterprise data center, colocation data center or distributed IT infrastructure. Equipped to meet even the most diverse data center rack power needs, the EVMIG332X delivers versatile, enterprise-quality power distribution.
Market-Leading Cybersecurity Ensures Your Data Is Kept Safe

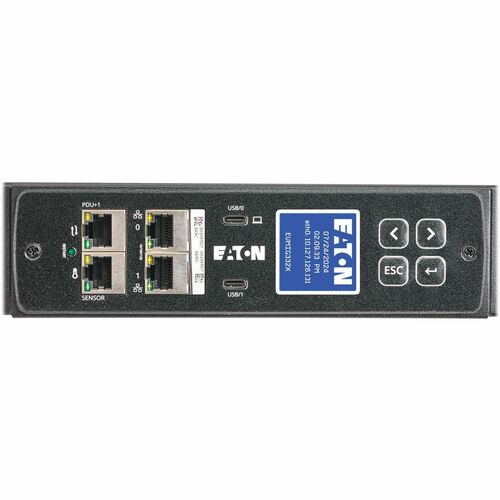

Chain-of-trust encryption and secure firmware boot capability prevent the EVMIG332X from being a cyberattack vulnerability point on a network. An embedded, hot-swappable gigabit network module (GNM) offers enhanced management and cybersecurity, including zero-trust architecture and zero-touch provisioning. The EVMIG332X is compatible with select Eaton Brightlayer Data Centers suite software solutions that enable extensive automation and remote management to shorten response times to power issues and ensure timely updates for stronger cybersecurity.
Remote Management Saves Time and Money
The GNM with multi-color screen supports performance management software for real-time reports, trend charts, dashboards and alerts that are prioritized by severity, as well as remote troubleshooting and automated responses during power events. The EVMIG332X is compatible with optional environmental sensors (sold separately) that provide alerts about temperature, humidity and dry-contact device connections.
42 Outlets Give You Plenty of Power Options

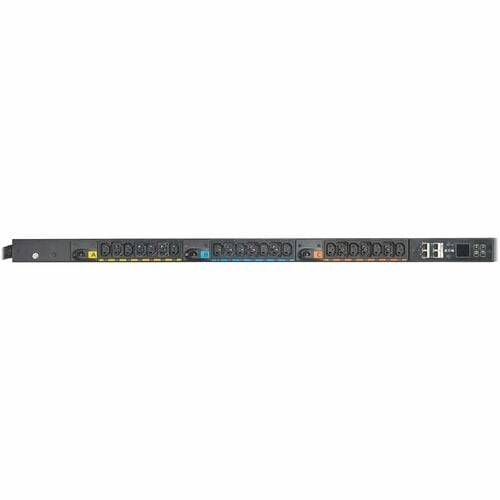

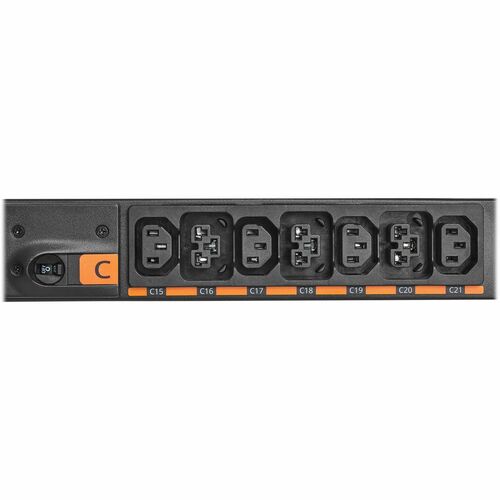

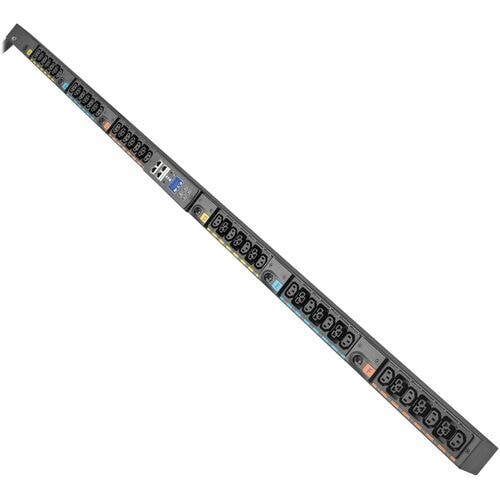

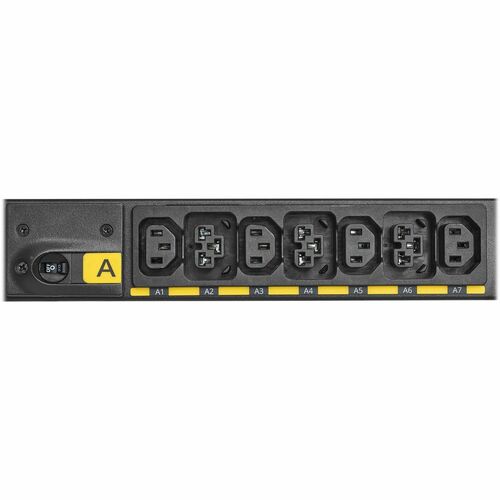

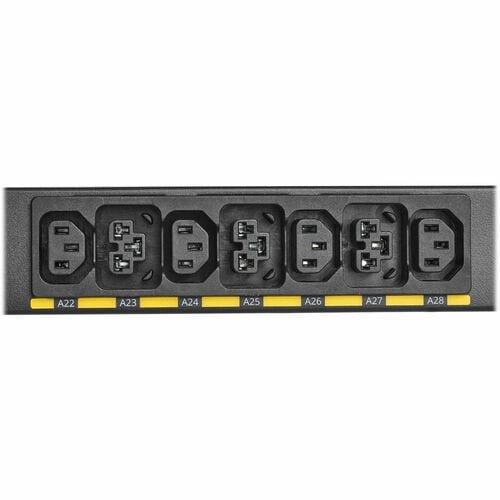

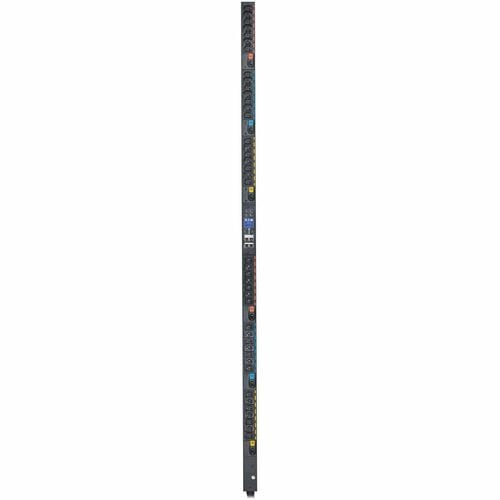

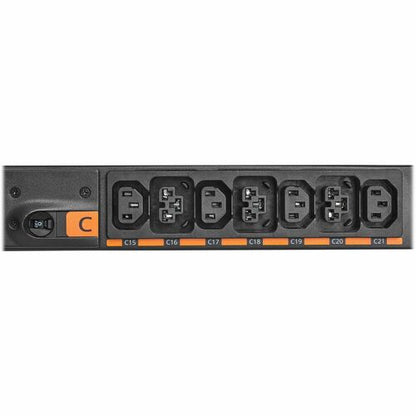

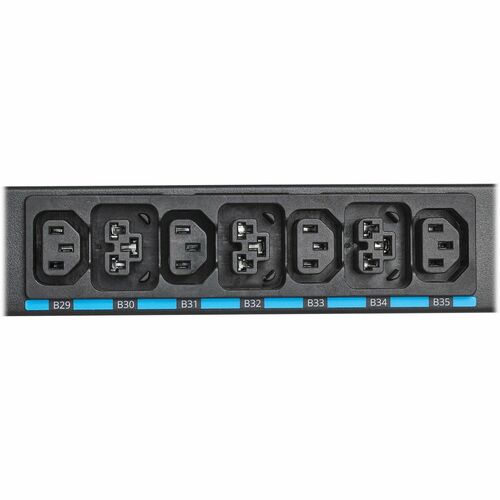

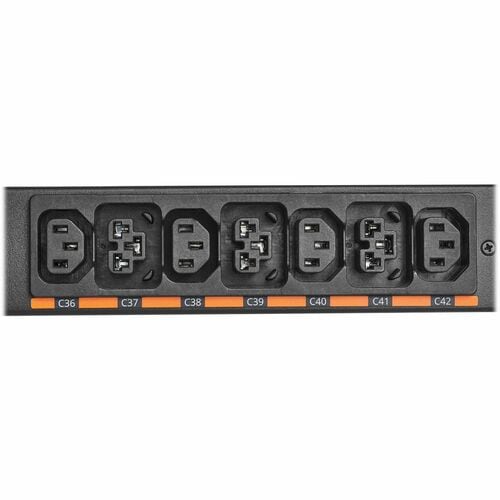

The EVMIG332X features 24 C13 outlets, which accept C14 connectors, and 18 high-retention C39 combo outlets, which accept both C14 and C20 connectors, adding flexibility to deployments and reducing the quantity of PDUs you will need to purchase and install. The outlets are evenly distributed into six color-coded load banks to improve load balancing and organize connections in a crowded rack.
Convenient Box-to-Rack Installation

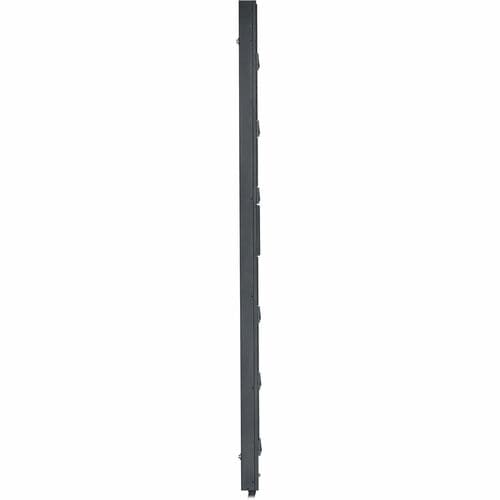

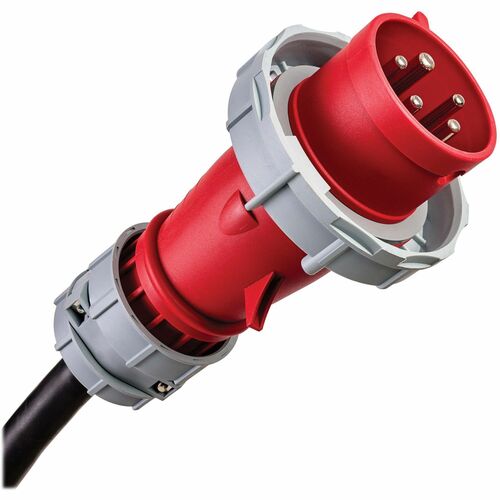

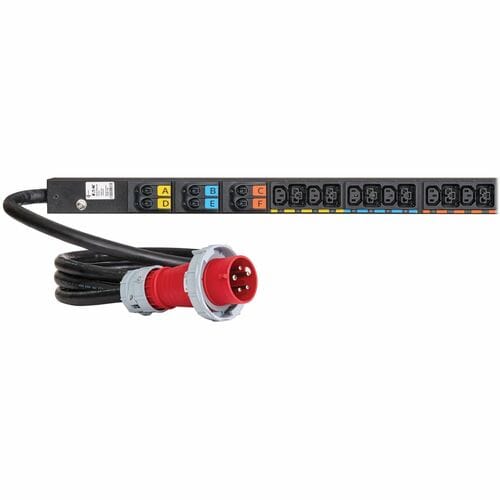

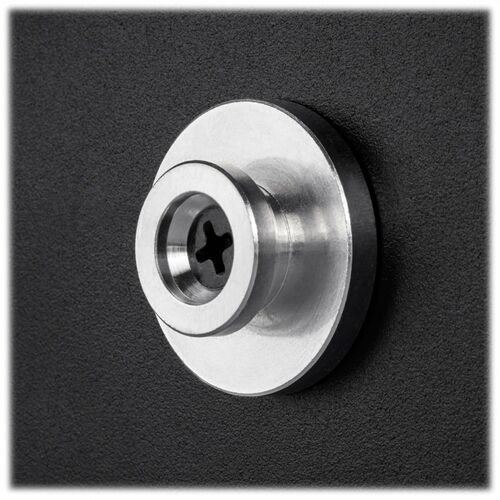

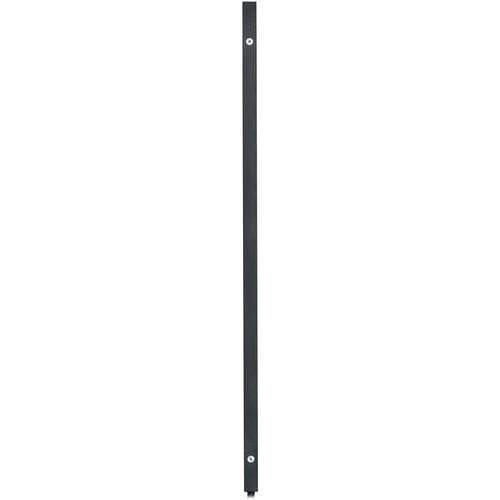

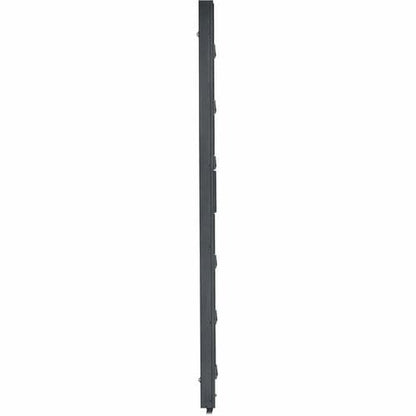

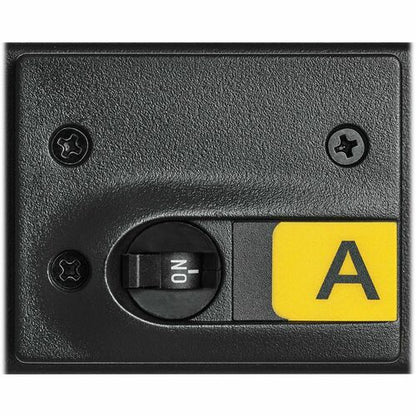

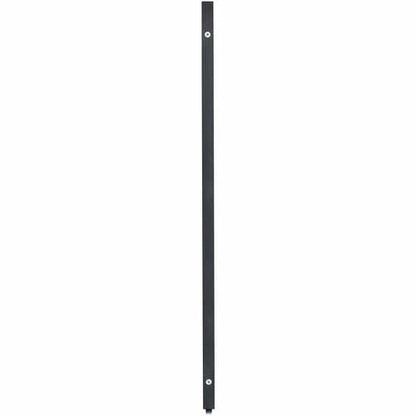

This EVMIG332X rack PDU (rPDU) features toolless mounting buttons that allow front- or side-facing rack installation, depending on your rack's layout and your power needs. The 10-foot power cord with 532P6W input connects to a compatible AC source. Low-profile circuit breakers are flush with the lightweight aluminum chassis, and the narrow two-inch width saves space within the rack for revenue-generating equipment. You can cascade up to 40 EVMIG332X models with each model maintaining its own individual IP address from a single network connection point.
- PDU is reliable for power protection and management solutions
- You can always avoid potential overloads with PDU meter
Spécifications techniques
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Management | |
| Management |
|
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -13°F (-25°C) |
| Maximum Storage Temperature | 149°F (65°C) |
| Miscellaneous | |
| Application/Usage | IT Equipment |
| Data Center | |
| Package Contents |
|
| Certifications & Standards |
|
| TAA Compliant | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| General Information | |
| Product Type | PDU |
| Manufacturer Part Number | EVMIG332X |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Manufacturer | Eaton Corporation |
| Product Model | EVMIG332X |
| Product Name | G4 EVMIG332X 42-Outlets PDU |
| Product Series | G4 |
| Brand Name | Eaton |
| Power Description | |
| Circuit Breaker | Yes |
| Input Voltage | 415 V AC |
| 230 V AC | |
| Output Voltage | 415 V AC |
| 208 V AC | |
| 240 V AC | |
| Input Current | 32 A |
| Power Rating (VA) | 17.30 kVA |
| Power Rating (Watt) | 17.30 kW |
| Physical Characteristics | |
| Weight (Approximate) | 16.54 lb (7502.42 g) |
| Form Factor | Vertical |
| Mount Type | Button Mount |
| Rack-mountable | |
| Rack Height | 0U |
| Cord Length | 10 ft (3.05 m) |
| Height | 68.10" (1729.74 mm) |
| Width | 2.09" (53.09 mm) |
| Depth | 2.05" (52.07 mm) |
| Mounting Orientation | Vertical |
| Product Color | Black |
| Color Family | Black |
| Technical Information | |
| Features | LCD Display |
| Protection Type | Overload Protection |
| Single Pole | |
| Plug/Connector Type | 532P6W |
| Phase | Three Phase |
| Receptacle Type | IEC 60320 C39 |
| IEC 60320 C13 | |
| Load Capacity (VA) | 17.30 kW |
| Load Capacity (Watt) | 17.30 kW |
| PDU Type | Metered |
| Receptacle Detail | 18 x IEC 60320 C39 |
| 24 x IEC 60320 C13 |
