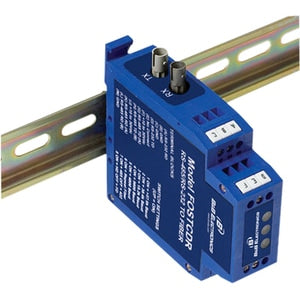

SERIAL TO FIBER OPTIC CONVERTERS
Standards can be mixed and matched so RS-232 devices can be connected to RS-422/485 devices, replacing a converter and isolator. When working with RS-485 signals, B&B Electronics' Automatic Send Data control eliminates the need for driver software. Serial connections are on terminal blocks; multimode fiber side has two ST connectors. Requires external power supply not included.
- Attach multiple devices together or expand the number of devices connected to your existing network by using 3 transceiver/media converter
- Expand your network capacity and fulfill requirement with this 3 transceiver/media converter
- The Rail-mountable provides convenient installation
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between networks and different devices
Spécifications techniques
| Media & Performance | |
| Maximum Distance Supported | 4 km (2.49 Mile) |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Physical Characteristics | |
| Weight (Approximate) | 7.20 oz (204.12 g) |
| Form Factor | Panel-mountable |
| Rail-mountable | |
| Height | 6" (152.40 mm) |
| Width | 5.50" (139.70 mm) |
| Depth | 4.30" (109.22 mm) |
| General Information | |
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | FOSTCDR |
| Manufacturer Website Address | http://www.advantech.com |
| Packaged Quantity | 1 |
| Manufacturer | Advantech Co., Ltd |
| Product Model | FOSTCDR |
| Product Name | RS-232/422/485 To Multi-Mode Fiber Converter |
| Brand Name | B+B SmartWorx |
| Interfaces/Ports | |
| USB | No |
| DVI | No |
| Network (RJ-45) | No |
| Parallel Port | No |
| Management Port | No |
| Digital Audio | No |
| Number of ST Ports | 2 |
| Number of Serial Ports | 1 |
| Digital Audio/Video | No |
| Total Number of Ports | 3 |
