À propos du produit

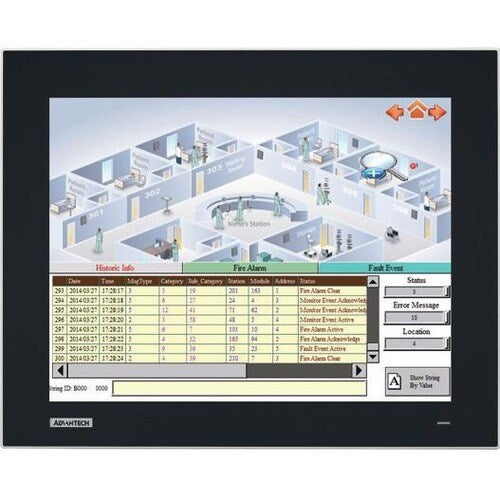

In IIoT and Industry 4.0, more and more customers need data to be visualized to help process management and decision making. The FPM-200 series is an industrial-grade monitor with sleek, simple lines and a true-flat touchscreen. Equipped with durable resistive touch control and an IP66-rated front bezel, FPM-200 series is designed for intuitive operation in industrial environments such as smart factory and machine automation display applications.
- Features 5-wire Resistive touch technology which is made of a glass panel and a film screen, each covered with a thin metallic layer, isolated by a narrow gap
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- Furnishes captivating visuals with about 350 cd/m² brightness levels
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
- HDMI (High Definition Multimedia Interface) delivers fantastic sound/video quality alongside a single-cable comfort
- Explore a world loaded with potentially vivid entertainment outcomes with the Advantech Open-frame LCD Touchscreen Monitor
Spécifications techniques
| Touchscreen Information | |
| Touchscreen Type | 5-wire Resistive |
| Video | |
| Brightness | 350 cd/m² |
| Color Supported | 16.7 Million Colors |
| Maximum Resolution | 1280 x 1024 |
| Native Contrast Ratio | 1,000:1 |
| Physical Characteristics | |
| Weight (Approximate) | 13.67 lb (6200 g) |
| Height | 14.95" (379.80 mm) |
| Width | 17.87" (454 mm) |
| Depth | 2.03" (51.50 mm) |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |

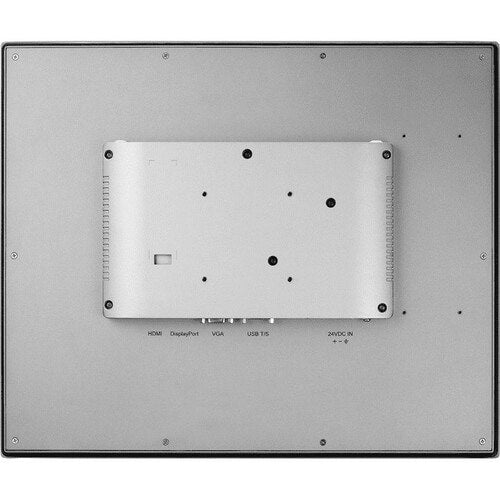

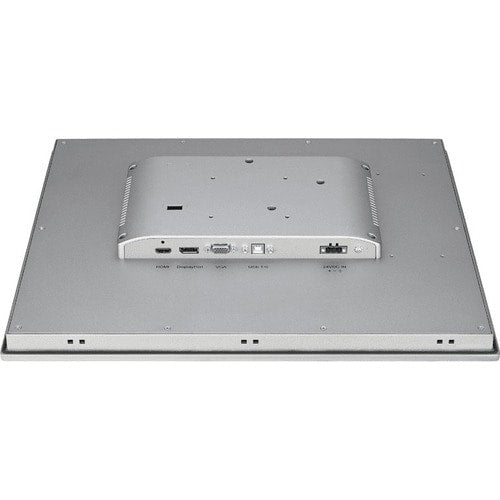

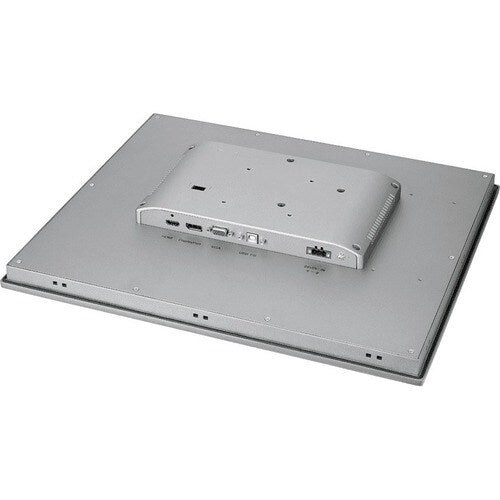

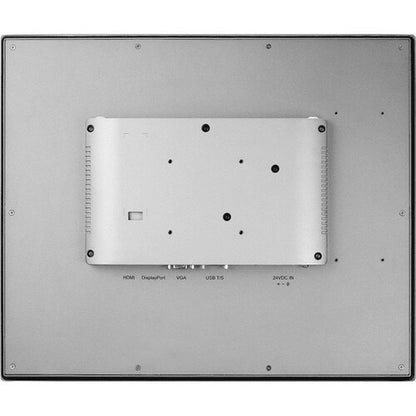

| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| VGA | Yes |
| Number of USB Ports | 1 |
| DisplayPort | Yes |
| Number of VGA Ports | 1 |
| Number of DisplayPorts | 1 |
| General Information | |
| Product Type | Open-frame LCD Touchscreen Monitor |
| Manufacturer Part Number | FPM-219-R9AE |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | FPM-219 |
| Product Name | 19" SXGA Industrial Monitor with Resistive Touch Screen (24Vdc) |
| Product Series | FPM-200 |
| Brand Name | Advantech |
| Technical Information | |
| Features | Ultra Slim |
| Tempered Glass | |
| Anti-glare | |
| Mount Type | Arm-mountable |
| Panel Mount | |
| Desk Mountable | |
| Viewable Screen Size | 19" |
| Screen Mode | SXGA |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 160° |
| Backlight Technology | LED |
| Panel Technology | Thin Film Transistor (TFT) |
| Screen Size Class | 19" |
| Ingress Protection (IP) Rating | IP66 |
