À propos du produit

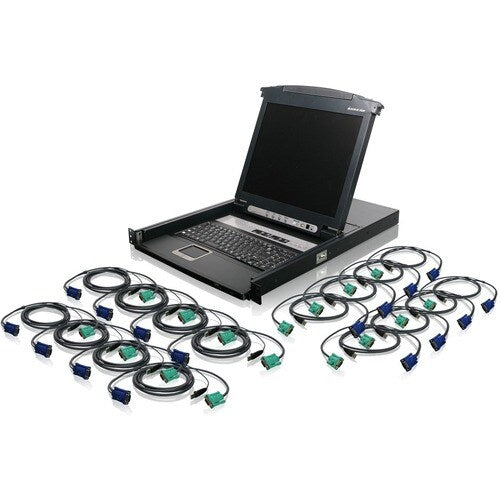

IOGEAR's GCL1816KITU is an integrated LCD console and 16 port KVM (keyboard, video, and mouse) switch with bundled USB KVM cables that offers secure access to 16 VGA, USB computers. It features a convenient rack mountable sliding / retractable 17" TFT LCD active matrix monitor and keyboard with built-in touchpad for a space-saving and streamlined integration. For added convenience it also supports an external USB mouse. An extra USB / PS/2 console port is provided on the rear panel to manage the LCD KVM switch from an external console (monitor, keyboard, and mouse). All this in a universal 1U rack mount space.
The GCL1816KITU supports both PS/2 and USB keyboards and mice for the connected computers, and the GCL1816KITU supports USB peripheral devices to be used for system upgrades with the attached computers. A single GCL1816KITU can control up to 16 computers. As many as 16 additional compatible KVM switches can be cascaded to reach up to 256 computers controlled from a single keyboard, monitor, and mouse console with easy computer switching via front LED pushbuttons, OSD, and hotkeys.
- Integrated 16-port KVM console featuring a 17" TFT LCD active matrix monitor, keyboard and touchpad
- 1280 x 1024 resolution on 17" rack mount LCD provides a sharp video display
- Equipped with 16 USB KVM Cables
- Adjustable depth to fit different sizes of racks
- Multi platform OS support - Windows®, Mac, Sun Solaris™ , and Linux®
- Easy to operate - computer selection via front panel pushbutton LED's, intuitive OSD (on screen display), and hotkeys
- External USB mouse port for convenience
- External USB or PS/2 with VGA Console port
- USB media port support for attached USB computers (system upgrades, etc)
- Cascade up to 2 levels - control up to 256 computers from a single console
Spécifications techniques
| Input Devices | |
| Keyboard | Yes |
| Pointing Device Type | TouchPad |
| Display & Graphics | |
| Screen Resolution | 1280 x 1024 |
| Screen Size | 17" (431.80 mm) |
| Display Screen Type | LCD |
| Technical Information | |
| Daisy Chain | Yes |
| KVM Switch | Yes |
| Number of Computers Supported | 16 |
| Device Type | LCD Rack Console |
| Interfaces/Ports | |
| USB | Yes |
| VGA | Yes |
| Number of USB Ports | 1 |
| Proprietary Interface | Yes |
| Number of VGA Ports | 1 |
| Number of Proprietary Ports | 16 |
| Power Description | |
| Input Voltage | 220 V AC |
| 110 V AC | |
| Frequency | 60 Hz |
| 50 Hz | |
| Input Current | 1 A |
| Power Consumption | 28 W |
| General Information | |
| Product Type | LCD Rack Console |
| Manufacturer Part Number | GCL1816KITU |
| Manufacturer Website Address | http://www.iogear.com |
| Manufacturer | IOGEAR, Inc |
| Product Model | GCL1816KITU |
| Product Name | 16-Port LCD Combo KVM Switch with USB KVM Cables |
| Brand Name | IOGEAR |
| Miscellaneous | |
| Package Contents |
|
| Platform Supported | Sun |
| PC | |
| Linux | |
| Mac | |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Physical Characteristics | |
| Weight (Approximate) | 29.03 lb (13167.79 g) |
| Rack Height | 1U |
| Height | 1.75" (44.45 mm) |
| Width | 19" (482.60 mm) |
| Depth | 25" (635 mm) |
| Product Material | Plastic |
| Metal |
