À propos du produit

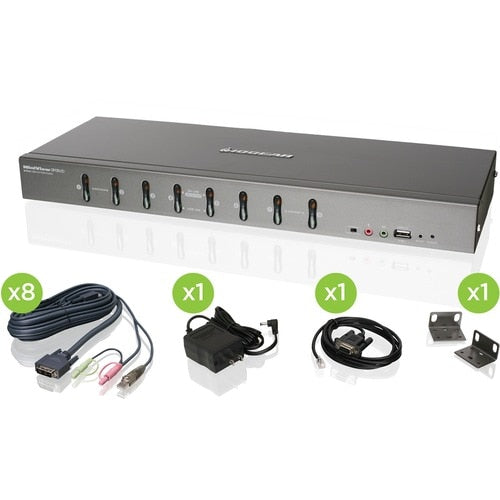

The IOGEAR 8-port USB DVI KVMP Switch Kit is a control unit that allows access and control of up to 8 DVI computers from a single USB keyboard, USB mouse. It can be cascaded to three levels - allowing up to 73 GCS1108s to control up to 512 computers - all from the original single console. In addition, GCS1108 comes with IOGEAR's Video DynaSync™ technology to optimize the display resolution. IOGEAR's DynaSync* technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers.
Switching between computers can be easily accomplished either by manually pressing the front panel push buttons, entering hotkey combinations from the keyboard, or via on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected.
GCS1108KIT1 provides 2.1 stereo audio and microphone support, as well as multimedia keyboard support.
- One USB console controls eight DVI computers
- Superior video quality: 1920x1200 (Single Link DVI), DDC2
- Supports widescreen resolutions
- Multiplatform support - Windows, Linux, Mac, Sun
- Computer selection via front panel pushbuttons, hotkeys, and on-screen display (OSD)
- Includes two USB 2.0 peripheral sharing ports
- Independent switching of KVM and USB focus
- Two-level (Administrator / User) password authorization for enhanced security protection
- Cascadable to three levels - control up to 512 computers
- IOGEAR's DynaSync technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers
Spécifications techniques
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| Video | |
| Maximum Video Resolution | 2048 x 1536 |
| Graphic Mode | QXGA |
| Technical Information | |
| KVM Technology | Digital & Analog |
| Number of Computers Supported | 8 |
| Number of Local Users Supported | 1 |
| General Information | |
| Product Type | KVM Switchbox |
| Manufacturer Part Number | GCS1108KIT1 |
| Manufacturer Website Address | http://www.iogear.com |
| Manufacturer | IOGEAR, Inc |
| Product Name | 8-Port DVI KVMP Switch Kit |
| Brand Name | IOGEAR |
| Interfaces/Ports | |
| Microphone | Yes |
| USB | Yes |
| DVI | Yes |
| VGA | Yes |
| Number of USB Ports | 10 |
| Number of VGA Ports | 1 |
| Number of DVI Ports | 8 |
