À propos du produit

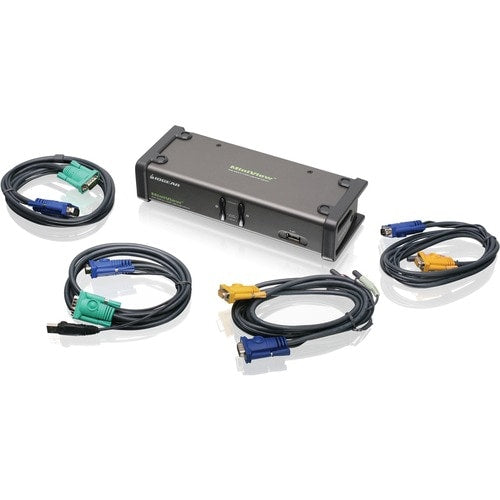

The Dual View GCS1742 USB KVMP Switch brings dual head video functionality to IOGEAR's USB KVM switch technology. Now two dual-display computers can be accessed and controlled from a single console that consists of a USB keyboard, USB mouse, and two VGA, SVGA, or Multisync monitors. In addition, the GCS1742 allows the computers to share USB peripherals connected to the USB peripheral ports, such as printers, scanners, portable hard drivers, etc.
Recognizing the importance of sound, this switch is also audio-enabled. A single microphone can provide audio input to each of the computers, and you can enjoy the audio output of each computer on a single set of speakers.
- One dual monitor console controls 2 dual monitor computers
- Increase security for your intranet by separating a PC connected to the Internet and a PC connected to an Intranet
- Additional VGA display channel provided for dual display of each computer
- Additional USB peripheral ports for the connected computers to share USB devices, such as printers, scanners, and portable hard drives, etc.
- Advanced control: Switch computers without interrupting USB or Audio operations
- Audio jacks provided for speaker and microphone sharing
- Independent switching of KVM, USB, and audio
- Easy to install - no software required - connecting cables is all it takes
- Easy to operate - computer selection via push button switches or hotkeys
- Auto Scan function to monitor computer operation
Spécifications techniques
| Interfaces/Ports | |
| VGA | Yes |
| Number of VGA Ports | 2 |
| Power Description | |
| Input Voltage | 5 V DC |
| Power Consumption | 1.25 W |
| Video | |
| Maximum Video Resolution | 2048 x 1536 |
| Graphic Mode | SVGA |
| VGA | |
| Physical Characteristics | |
| Weight (Approximate) | 1.81 lb (820 g) |
| Height | 1.65" (42 mm) |
| Width | 7.87" (200 mm) |
| Depth | 2.93" (74.50 mm) |
| Technical Information | |
| Maximum Operating Distance | 72" (1828.80 mm) |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Minimum Scan Interval | 1 Second |
| Miscellaneous | |
| Additional Information |
|
| Package Contents |
|
| Compatibility |
|
| Platform Supported | PC |
| Mac | |
| Sun | |
| Country of Origin | Taiwan |
| General Information | |
| Product Type | KVM Switchbox |
| Manufacturer Part Number | GCS1742 |
| Manufacturer Website Address | http://www.iogear.com |
| Manufacturer | IOGEAR, Inc |
| Product Model | GCS1742 |
| Product Name | MiniView GCS1742 2-Port Dual View KVM Switch |
| Product Line | MiniView |
| Brand Name | IOGEAR |
