À propos du produit
2-Port 4K DisplayPort KVMP Switch
Featuring a revolutionary combination of 4K DCI resolution and enhanced user-friendly operation, IOGEAR's 2-Port 4K DisplayPort KVMP Switch with Dual Video Out and RS-232 provides the latest innovations in DisplayPort KVM technology. Connect your powerhouse computers and experience 4K DCI resolution while switching between two computers and sharing two USB peripherals with the push of a button. Control two DisplayPort desktops or laptops with ease using a single keyboard, mouse, HDMI and/or DisplayPort monitors. Expand your USB 3.0 peripherals' connectivity with faster data transfer rates, and eliminate redundant hardware.
4K DCI Experience
The DisplayPort 1.2 KVMP technology delivers up to 4K DCI (Digital Cinema Initiatives) resolution standard; 4096 x 2160 at a frame rate of 60Hz. This 2-Port 4K KVMP Switch is designed for environments requiring high graphics resolution, such as professional film and video production industries. Customize your video content viewing from one to two monitors - from mirror image to extended image, for a more cinematic experience. IOGEAR 4K DisplayPort KVMP Switch also enhances consumer electronics applications in motion graphic design, animation, engineering, architecture, and media design.
2-Monitor Experience From a Single Video Input
For those that need to add a second monitor for a full production environment, the IOGEAR 2-Port 4K DisplayPort KVMP Switch with Dual Video Out is the perfect solution. Turn your single video input to dual video output by connecting both your DisplayPort monitor and HDMI monitor too. The Switch is perfect for applications like call centers, retail stores, concession stands, outdoor events or other application. Host a training session or presentation by mirroring your content to a separate HDMI monitor wirelessly by connecting the KVM switch to an HDMI wireless transmitter such as the IOGEAR Wireless HDMI Transmitter and Receiver Kit (GWHD11) .
Convenient Switching Methods

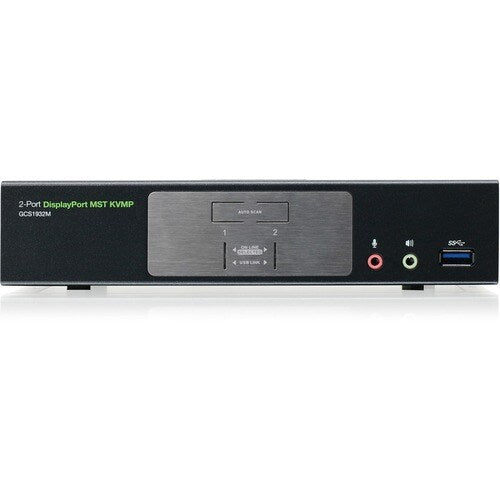

Switch and access two DisplayPort computers from a simple push-button on the front panel, hotkeys combination on your keyboard, or 3-button USB wheel mouse. With mouse emulation turned on, quickly switch between connected computers by clicking the wheel button on your 3-button USB mouse. IOGEAR's 2-Port 4K DisplayPort KVMP Switch also offers the option to send RS-232 commands via serial port for source switching. Perfect for 911
- Control and switch 2 computers with 1 keyboard, mouse, and monitor(s)
- Expand 1 DisplayPort input to 2 video outputs (DisplayPort/HDMI)
- With DisplayPort 1.1 Graphic Cards:
- Dual 4K UHD (DisplayPort/HDMI) - mirrored screen only
- With DisplayPort 1.2 Graphic Cards:
- 1 Monitor: Up to 5K Resolution
- 2 Monitors: Up to 4K UHD (DisplayPort/HDMI)
- 3 Monitors: Shared video bandwidth1
- Convenient computer selection via front panel push-buttons, hotkeys, mouse2, and RS-232 commands3
- 2-Port built-in USB 3.1 Gen 1 Hub for peripheral sharing with SuperSpeed 5 Gbps data transfer
Spécifications techniques
| Video | |
| Maximum Video Resolution | 4096 x 2160 |
| Power Description | |
| Input Voltage | 5 V DC |
| Input Voltage Range | 5V DC |
| Technical Information | |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Physical Characteristics | |
| Weight (Approximate) | 660 g |
| Height | 2.94" (74.68 mm) |
| Width | 7.88" (200.03 mm) |
| Depth | 1.69" (42.93 mm) |
| Miscellaneous | |

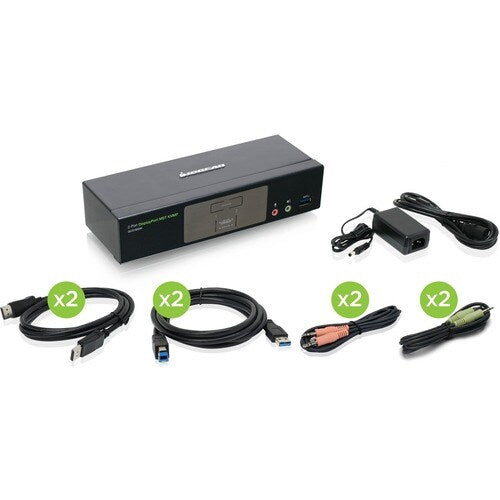

| Package Contents |
|
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Restriction of Hazardous Substances (RoHS) | |
| Interfaces/Ports | |
| USB | Yes |
| HDMI | Yes |
| Number of HDMI Ports | 1 |
| Number of USB Ports | 6 |
| DisplayPort | Yes |
| Number of DisplayPorts | 3 |
| General Information | |
| Product Type | KVM Switchbox |
| Manufacturer Part Number | GCS1932M |
| Manufacturer Website Address | http://www.iogear.com |
| Packaged Quantity | 1 |
| Manufacturer | IOGEAR, Inc |
| Product Model | GCS1932M |
| Product Name | 2-Port 4K DisplayPort KVMP Switch with Dual Video Out and RS-232 |
| Brand Name | IOGEAR |
