À propos du produit
Fast Installation
Various factors including magnets on the top and bottom, positioning pins, handles and fast locks help installers easily set up and dismantle the LED screens without additional tools.
Easy Maintenance
The GSCA series applied a simple Lock Fixing method which requires no additional tools, making it easier to replace LED modules or power/data units. It saves cost and time for maintenance.

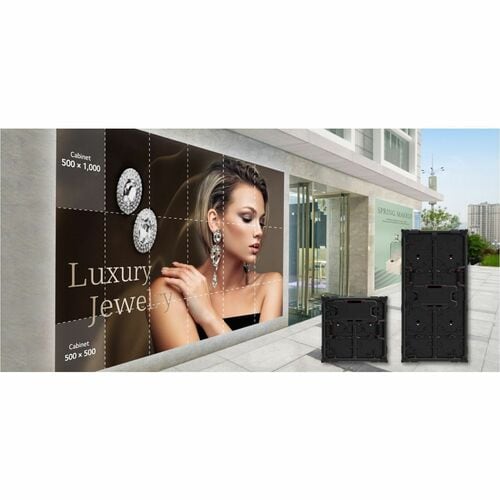

Two Cabinet Options
The GSCA series offers two sizes of cabinets enabling a screen size configuration that fits perfectly with customer's demands.
IP Rated Weatherproof | & 90° Corner Design
The cabinet is IP65 certified, allowing stable operation unaffected by weather and harsh outdoor environments. Also, if you add a 90° corner option, the GSCA series can deliver flawless content even when installed on the corners.

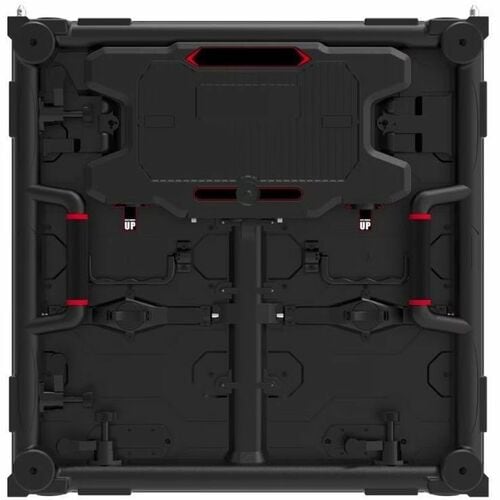

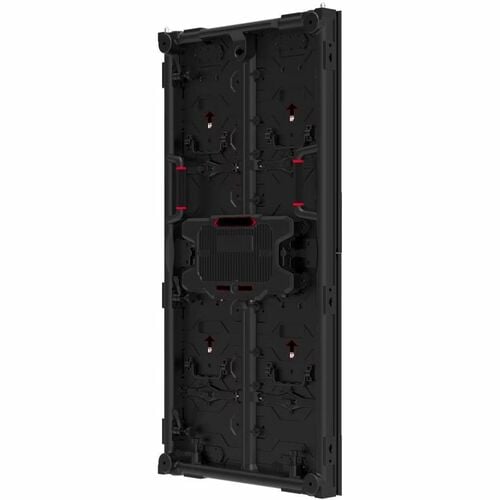

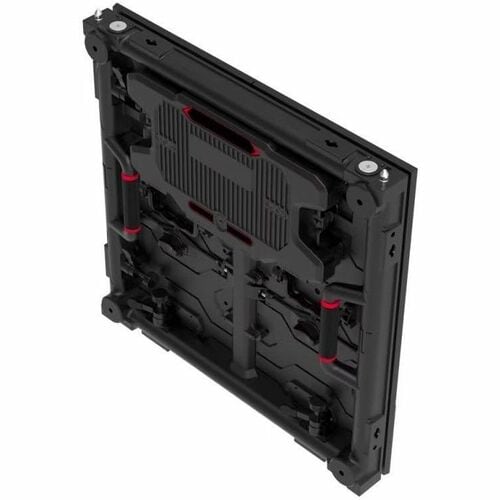

Front or Rear Serviceability
The product offers either front access or rear access, allowing customers to choose installation options according to their environment and minimises limitations in installation and maintenance.
- Pixel Pitch: 4.63mm
- Brightness: 5,000 cd/m²
- Fast Assembly and Easy Maintenance
- Two Cabinet Options
- IP65 Weatherproof Design
- 90º Corner Option Available
Spécifications techniques
| Technical Information | |
| Ingress Protection (IP) Rating | IP65 |
| Power Description | |
| Input Voltage | 230 V AC |
| 120 V AC | |
| Miscellaneous | |
| Application/Usage | Outdoor |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Video | |
| Brightness | 5000 cd/m² |
| Color Depth | 14-bit |
| Dynamic Contrast Ratio | 11,000:1 |
| Physical Characteristics | |
| Weight (Approximate) | 8 kg |
| Height | 19.69" (500 mm) |
| Width | 19.69" (500 mm) |
| Depth | 2.68" (68 mm) |
| Display & Graphics | |
| Pixel Pitch | 0.18" (4.63 mm) |
| Display Resolution | 108 x 108 |
| Display Screen Type | LCD |
| Backlight Technology | LED |
| Number of Modules Per Cabinet | 2x1 |
| General Information | |
| Product Type | Digital Signage Display |
| Manufacturer Part Number | GSCA046-GN2 |
| Manufacturer Website Address | http://www.lg.com |
| Manufacturer | LG Electronics |
| Product Model | GSCA046-GN2 |
| Product Name | GSCA046-GN2 Digital Signage Display |
| Product Series | GSCA |
| Brand Name | LG |
