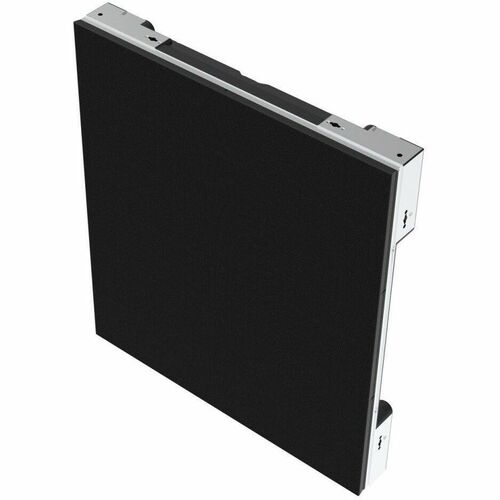

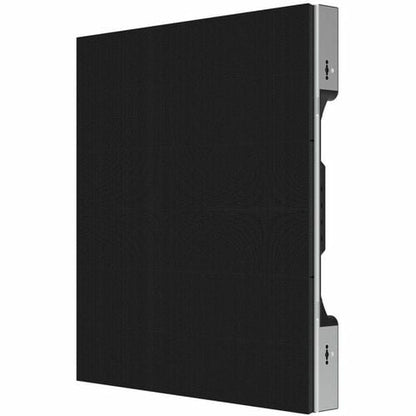

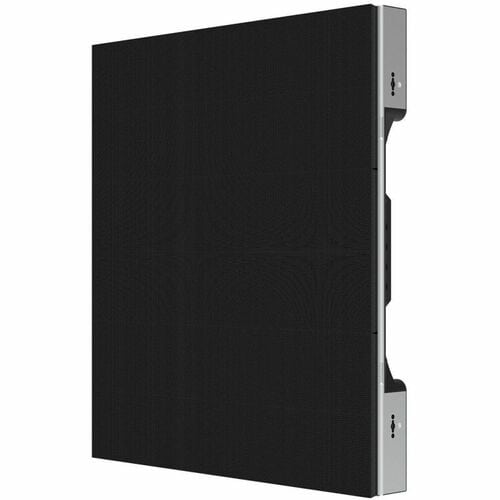

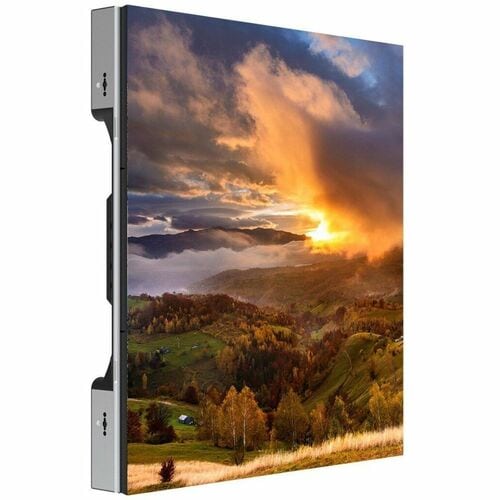

GSCC Essential Series | Customizable Screen Ratio
Cabinets of the GSCC series can be assembled to configure any screen size including the 16:9, 8:9 and 4:3 screen ratio. This enables customers to customize LED Screens according to installation needs.
Fast Assembly and Easy Maintenance

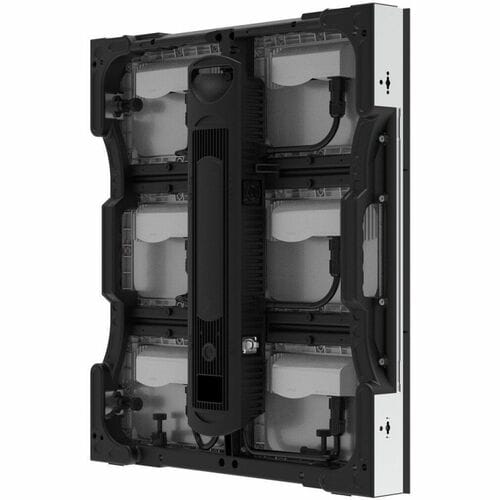

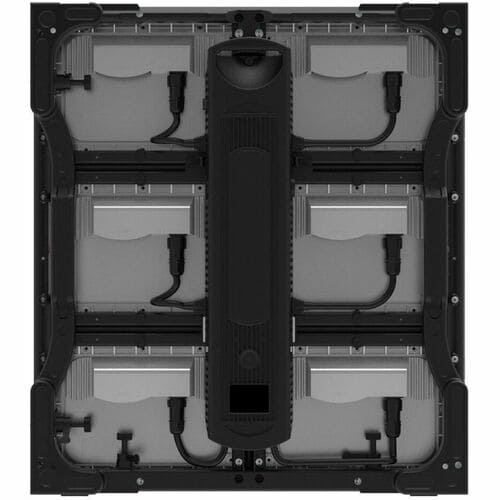

The fast lock helps LED modules be simply set up or dismantled. Separate power and control unit design also facilitates easy maintenance.
Front or Rear Serviceability
The product offers either front access or rear access, allowing customers to choose installation options according to their environment.
90° Corner Design Available
If you add a 90° corner option, the GSCC series can deliver virtually seamless content even when installed on the corners.

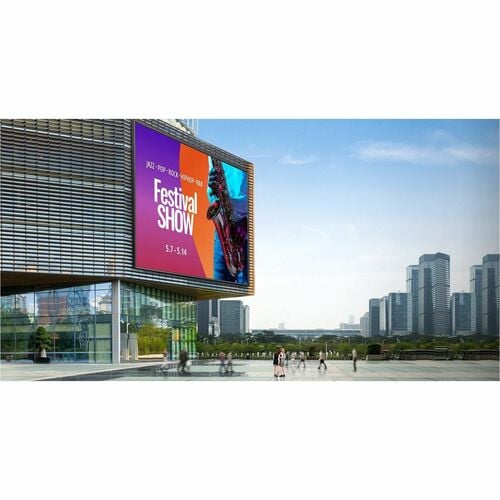

IP Rated Weatherproof Design
The front of the cabinet is IP65 certfied and the back is IP54 certified, allowing stable operation unaffected by weather and harmful outdoor environments.
- Digital Signage Display - Ideal for rack, passageway, booth or display counter
- Experience luminescent visual images with LCD display
- LED backlight enhances display performance that delivers an outstanding color range and contrast ratios
Spécifications techniques
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Operating Power Consumption (Energy Star) | 330 W |
| Technical Information | |
| Video Wall Compatible | Yes |
| Ingress Protection (IP) Rating | IP54 |
| IP65 | |
| Video | |
| Brightness | 5000 cd/m² |
| Color Depth | 14-bit |
| Dynamic Contrast Ratio | 5,000:1 |
| Miscellaneous | |
| Application/Usage | Commercial Audio/Video |
| Outdoor | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Display & Graphics | |
| Pixel Pitch | 0.26" (6.67 mm) |
| Display Resolution | 96 x 108 |
| Display Screen Type | LCD |
| Backlight Technology | LED |
| Number of Modules Per Cabinet | 2x3 |
| Physical Characteristics | |
| Weight (Approximate) | 17.01 kg |
| Height | 28.30" (718.82 mm) |
| Width | 25.20" (640.08 mm) |
| Depth | 4.40" (111.76 mm) |
| Product Color | Black |
| General Information | |
| Product Type | Digital Signage Display |
| Manufacturer Part Number | GSCC066GN |
| Manufacturer Website Address | http://www.lg.com |
| Manufacturer | LG Electronics |
| Product Model | GSCC066-GN |
| Product Name | Essential GSCC066-GN Digital Signage Display |
| Product Line | Essential |
| Product Series | GSCC |
| Brand Name | LG |
