À propos du produit

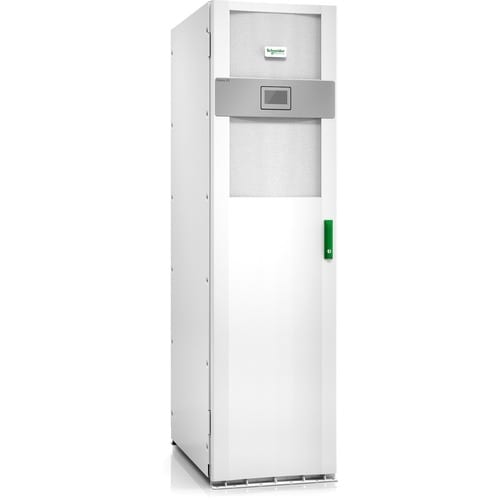

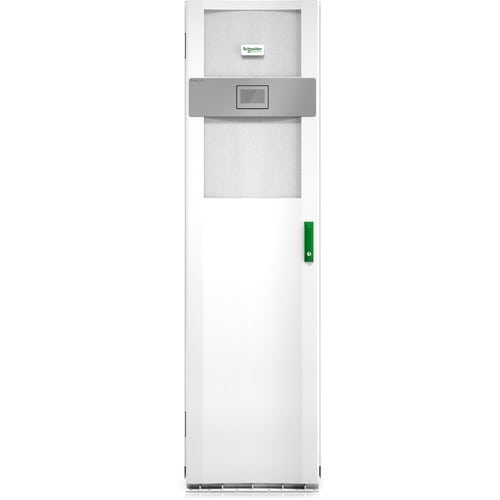

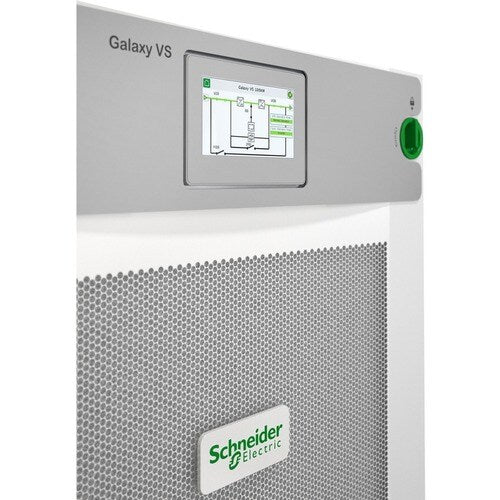

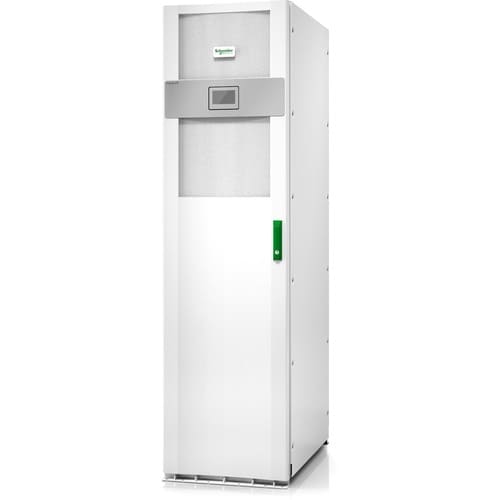

Galaxy VS
Highly efficient 20 to 100 kW (480 V), 10 to 150 kW (400 V), and 10 to 50 kW (208 V) 3-phase UPS for edge, small, and medium data centers and other business-critical applications.
Galaxy VS is a highly efficient, modular, easy-to-deploy 20 to 100 kW (480 V), 10 to 150 kW (400 V), and 10 to 50 kW (208 V), three-phase uninterruptible power supply that delivers top performance for edge, small, and medium data centers, as well as critical infrastructure in commercial and industrial facilities. Its compact design, high-density technology, N+1 redundancy, and fault-tolerant architecture maximize availability, operational efficiency, and critical load protection, while minimizing total cost of ownership. Thanks to patented technologies, this UPS delivers up to 97% efficiency in normal operating mode and up to 99% in ECOnversion mode, equivalent to 66% higher energy savings. Galaxy VS is EcoStruxure Ready to give you peace of mind anytime, anywhere. Smart modular batteries integrated in the UPS cabinet optimize footprint and ensure critical loads have highly predictable runtimes. Start-up service is included to optimize your system's performance, quality, and safety. With its robust design and industry-leading performance, Galaxy VS is the ideal backbone for your critical infrastructure.
Spécifications techniques
| Miscellaneous | |
| Package Contents |
|
| Software Included | EcoStruxure Ready |
| Battery Information | |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 5 |
| Battery Characteristics | Valve Regulated Lead Acid (VRLA) |
| DC System Voltage | 480 V DC |
| Environmental Conditions | |
| Thermal Dissipation | 2513 BTU/h |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 3300 ft (1005840 mm) |
| Maximum Storage Elevation | 10000 ft (3048000 mm) |
| Sound Emission (A-Weighted) | 54 dB(A) |
| Physical Characteristics | |
| Weight (Approximate) | 250 kg |
| Form Factor | Tower |
| Height | 78" (1981.20 mm) |
| Width | 22" (558.80 mm) |
| Depth | 34" (863.60 mm) |
| General Information | |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | GVSUPS15KR0B5FS |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Manufacturer | Schneider Electric SA |
| Product Name | Galaxy VS 15kVA Tower UPS |
| Product Line | Galaxy VS |
| Brand Name | APC by Schneider Electric |
| Technical Information | |
| Application/Usage | Commercial |
| Smartphone | |
| Business | |
| Mission Critical Equipment | |
| Industrial | |
| Data Center | |
| Computer | |
| Phase | Three Phase |
| Transfer Time | 0 ns |
| Power Description | |
| Input Voltage | 208 V AC |
| 220 V AC | |
| 200 V AC | |
| Output Voltage | 200 V AC |
| 208 V AC | |
| 220 V AC | |
| Waveform Type | Sine Wave |
| Input Voltage Range | 177 V AC - 239 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 15 kVA |
