À propos du produit

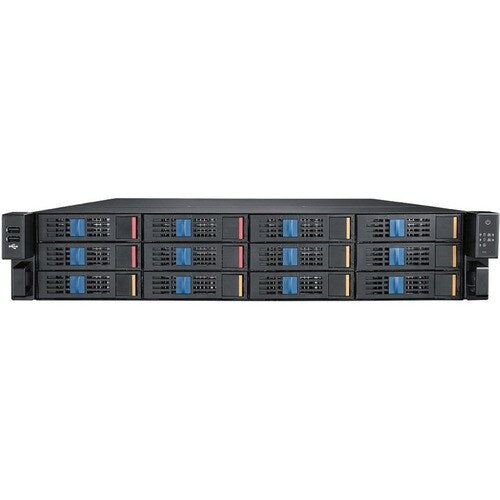

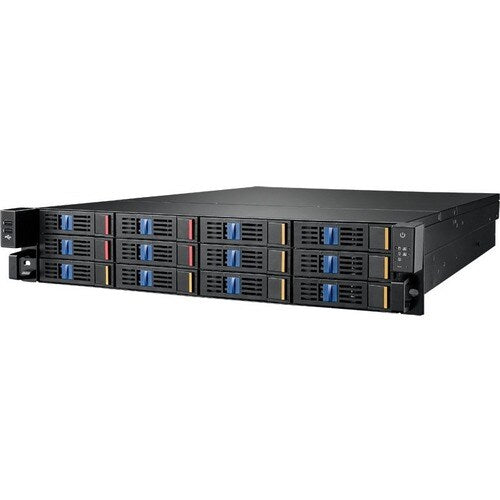

2U Storage Chassis for EATX/ATX/Micro ATX Serverboards with 12 Hot-Swappable Drive Bays
- 2U rackmount chassis supports EATX/ATX/uATX motherboard
- 12-bay hot-swappable 3.5"/2.5" SAS 12Gb/s drives or SATA 6Gb/s drives
- 4 x NVMe drives supported via an optional riser card

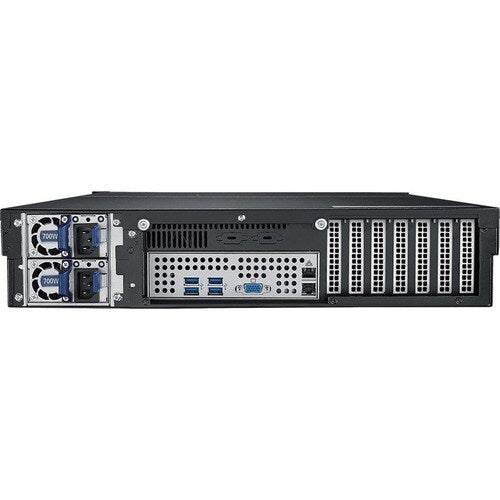

- Default 7x slots (low profile) rear panel, 3x slots (full height) optional
- Supports Flex ATX Power, 80+ redundant power supply
- Sturdy 2U Rack-mountable case to shield censorious hardware and the user-friendly structure enables easy operations
- Supports EATX motherboard to provide a significant number of PCI slots, expansion slots and peripheral ports with enhanced heat dissipation capability
- 12 expansion bays provide enough space to lodge numerous PC components
Spécifications techniques
| I/O Expansions | |
| Total Number of Expansion Slots | 6 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Miscellaneous | |
| Country of Origin | China |
| Bays | |
| Number of Total Expansion Bays | 12 |
| "Number of External 2.5""/3.5"" Bays" | 12 |
| Power Description | |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Power Supply Wattage | 800 W |
| Power Supply Installed | Yes |
| Technical Information | |
| Motherboard Supported | ATX |
| Micro ATX | |
| EATX | |
| Number of Fans Installed | 4 |
| Installed Fan Size | 3.15" (80 mm) |
| Physical Characteristics | |
| Weight (Approximate) | 55.12 lb (25000 g) |
| Form Factor | Rack-mountable |
| Height | 3.48" (88.40 mm) |
| Width | 17.24" (438 mm) |
| Depth | 24.41" (620 mm) |
| Compatible Rack Unit | 2U |
| General Information | |
| Product Type | Server Case |
| Manufacturer Part Number | HPC-8212SE-R8A1E |
| Manufacturer Website Address | http://www.advantech.com |
| Manufacturer | Advantech Co., Ltd |
| Product Model | HPC-8212 |
| Product Name | HPC-8212 Server Case |
| Brand Name | Advantech |
