À propos du produit

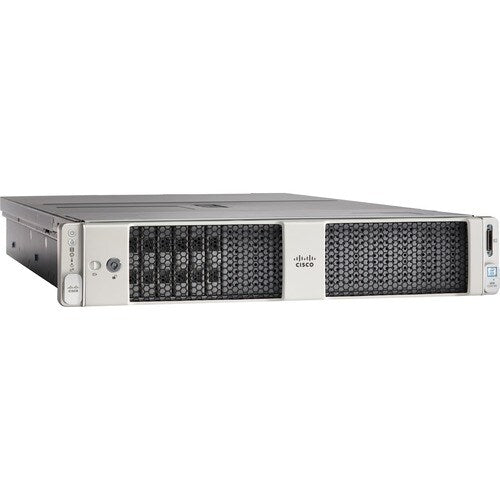

The UCS C240 M5 LFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666-MHz or 2933-MHz DIMMs with capacity points up to 128 GB, 2666-MHz DCPMMs with capacity points up to 512 GB, up to 6 PCI Express (PCIe) 3.0 slots, and up to 12 front-facing internal LFF drives. The C240 M5 LFF server also includes one dedicated internal slot for a 12G SAS storage controller card.
The latest update includes support for 2nd Generation Intel® Xeon® Scalable Processors, 2933-MHz DDR4 memory, and the new 512GB Intel® OptaneTM DC Persistent Memory Modules (DCPMMs). With this combination of features, up to 9 TB of memory is possible (using 12 x 256 GB DDR4 DIMMs and 12 x 512 GB DCPMMs).
The C240 M5 server includes a dedicated modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot, in addition to 2 x 10 Intel x550 10Gbase-T embedded (on the motherboard) LOM ports.
The Cisco UCS C240 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
The latest update includes support for 2nd Generation Intel® Xeon® Scalable Processors, 2933-MHz DDR4 memory, and the new 512GB Intel® OptaneTM DC Persistent Memory Modules (DCPMMs). With this combination of features, up to 9 TB of memory is possible (using 12 x 256 GB DDR4 DIMMs and 12 x 512 GB DCPMMs).
The C240 M5 server includes a dedicated modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot, in addition to 2 x 10 Intel x550 10Gbase-T embedded (on the motherboard) LOM ports.
The Cisco UCS C240 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
- Can connect up to 2 USB peripherals
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- 12Gb/s SAS interface for high speed and reliability
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- Perform computational tasks effectively accrediting the Xeon Platinum processor
Spécifications techniques
| Storage | |
| Optical Drive Type | No |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C620 |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 8 MB |
| I/O Expansions | |
| Number of Total Expansion Bays | 14 |
| "Number of 3.5"" Bays" | 12 |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Gigabit Ethernet | |
| Power Description | |
| Input Voltage | 120 V AC |
| 230 V AC | |
| Memory | |
| Maximum Memory Supported | 9 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2933/PC4-23466 |
| Intel Optane Memory Ready | Yes |
| Total Number of Memory Slots | 24 |
| Processor | |
| Processor Supported | Xeon Gold |
| Xeon Silver | |
| Xeon Platinum | |
| Xeon Bronze | |
| 64-bit Processing | Yes |
| Number of Processors Supported | 2 |
| General Information | |
| Product Type | Barebone System |
| Manufacturer Part Number | HX-C240-M5L |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |
| Product Name | UCS C240 M5 Barebone System |
| Product Series | C240 M5 |
| Brand Name | Cisco |
| Physical Characteristics | |
| Weight (Approximate) | 66 lb (29937.10 g) |
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Height | 3.43" (87.12 mm) |
| Width | 18.96" (481.58 mm) |
| Depth | 30.18" (766.57 mm) |
| Product Color | Silver |
| Gray |
