À propos du produit
Cisco HyperFlex™ Systems unlock the full potential of hyperconvergence. The systems are based on an end-to-end software-defined infrastructure, combining software-defined computing in the form of Cisco Unified Computing System (Cisco UCS) servers; software-defined storage with the powerful Cisco HX Data Platform and software-defined networking with the Cisco UCS fabric that will integrate smoothly with Cisco Application Centric Infrastructure (Cisco ACI™). Together with a single point of connectivity and hardware management, these technologies deliver a preintegrated and adaptable cluster that is ready to provide a unified pool of resources to power applications as your business needs dictate.
The HX220c M5 servers extend the capabilities of Cisco's HyperFlex portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots with configuration options ranging from 128GB up to 3TB of DRAM, and an all flash footprint of cache and capacity drives for highly available, high performance storage.
The latest update includes support for 2nd Generation Intel® Xeon® Scalable Processors, 2933-MHz DDR4 memory.
The HX220c M5 servers extend the capabilities of Cisco's HyperFlex portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots with configuration options ranging from 128GB up to 3TB of DRAM, and an all flash footprint of cache and capacity drives for highly available, high performance storage.
The latest update includes support for 2nd Generation Intel® Xeon® Scalable Processors, 2933-MHz DDR4 memory.
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- 128 GB memory enables you to do multitasking and run intensive applications lag-free
Spécifications techniques
| I/O Expansions | |
| Hot Swappable Bays | Yes |
| Miscellaneous | |
| Country of Origin | United States |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Power Description | |
| Number of Power Supplies Supported | 2 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Display & Graphics | |
| Graphics Controller Model | Pilot 4 |
| Graphics Memory Capacity | 16 MB |
| Interfaces/Ports | |
| VGA | Yes |
| Network (RJ-45) | Yes |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Number of VGA Ports | 1 |
| Memory | |
| Error Checking | ECC |
| Maximum Memory Supported | 3 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Occupied Memory Slots | 8 |
| Physical Characteristics | |
| Weight (Approximate) | 37.50 lb (17009.71 g) |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.70" (43.18 mm) |
| Width | 18.98" (482.09 mm) |
| Depth | 30.98" (786.89 mm) |
| Processor | |
| Cache | 11 MB |
| Processor Speed | 1.70 GHz |
| Processor Type | Xeon Bronze |
| Processor Model | 3106 |
| Processor Core | Octa-core (8 Core) |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | HXSP220M5SXE |
| Manufacturer Website Address | http://www.cisco.com |
| Manufacturer | Cisco Systems, Inc |

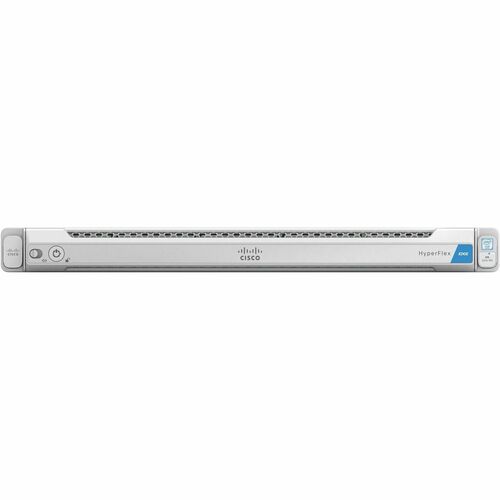

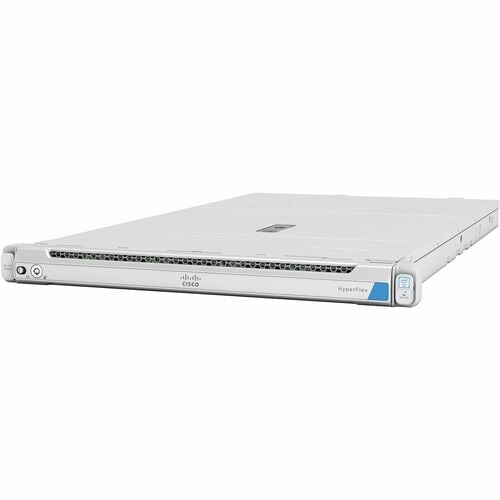

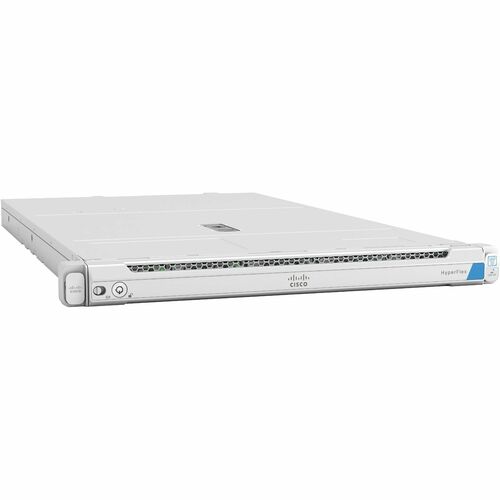

| Product Name | Hyperflex HX220c M5 Server |
| Product Line | HyperFlex |
| Product Series | HX220c M5 |
| Brand Name | Cisco |
